Disassembled Views

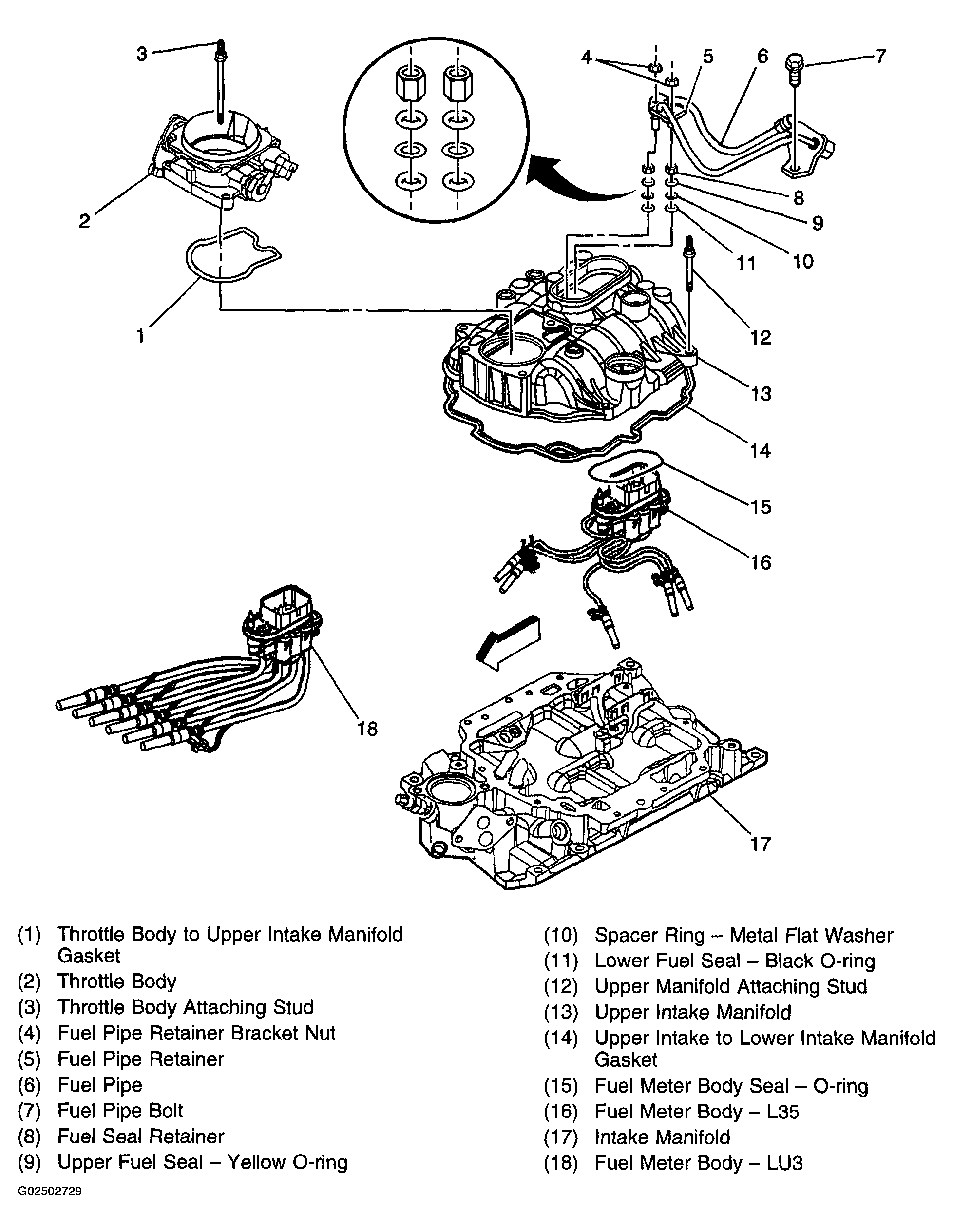

Fig 1: Identifying Upper & Lower Intake Manifold Components
G02502729Courtesy of GENERAL MOTORS CORP.
Fig 2: Identifying Upper Engine Components (View 1)
G02502730Courtesy of GENERAL MOTORS CORP.

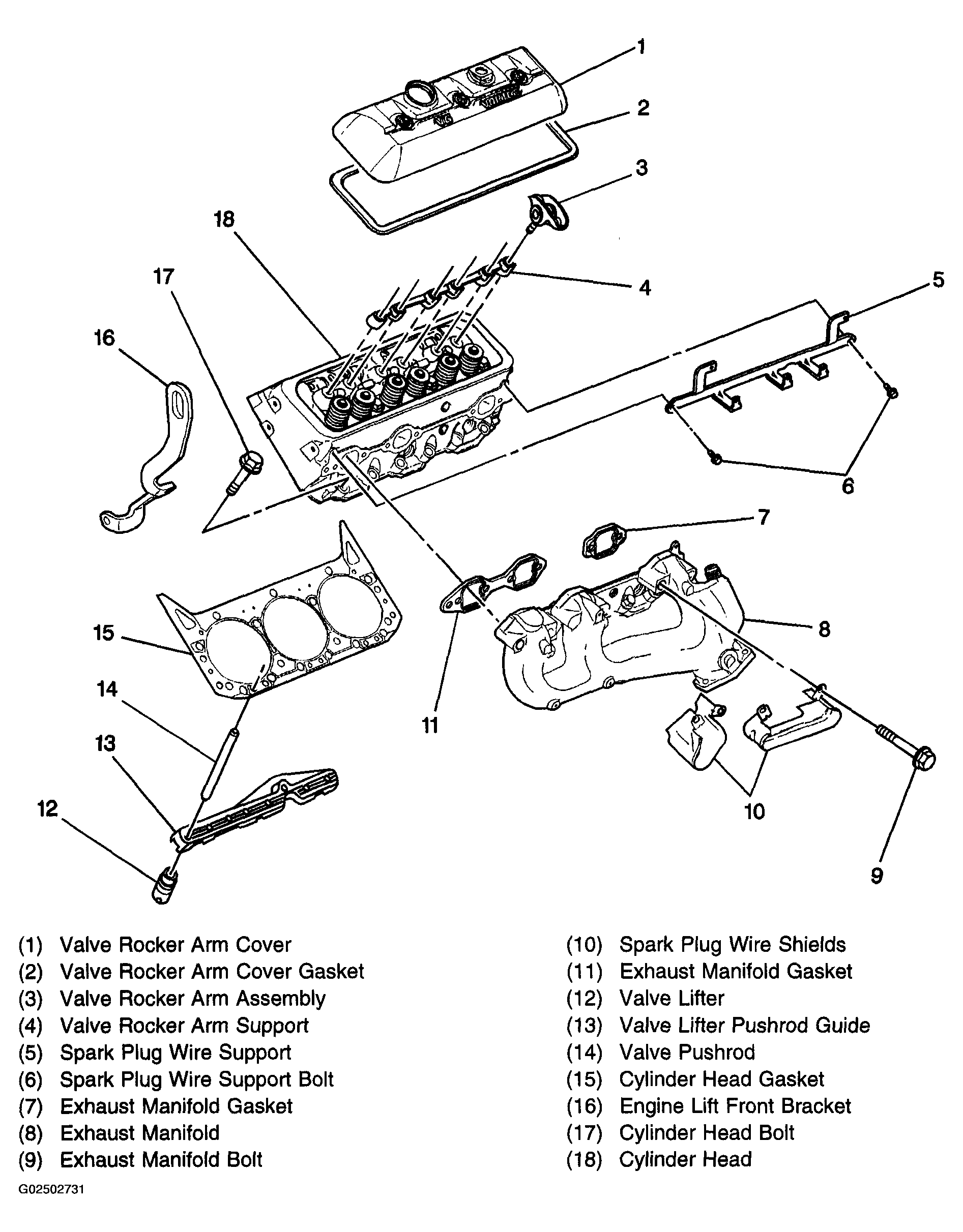

Fig 3: Identifying Upper Engine Components (View 2)
G02502731Courtesy of GENERAL MOTORS CORP.

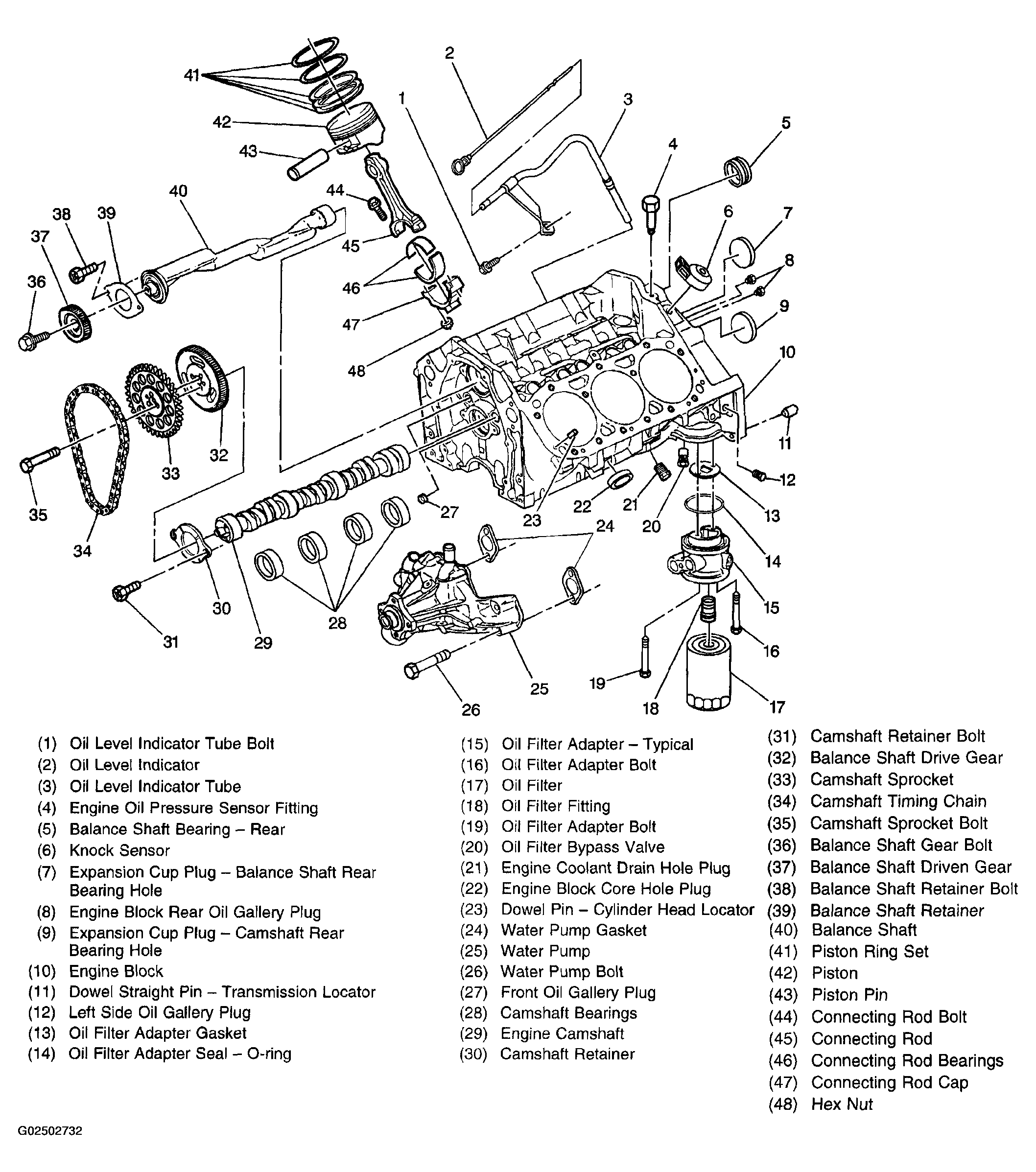

Fig 4: Identifying Lower Engine Components (View 1)
G02502732Courtesy of GENERAL MOTORS CORP.

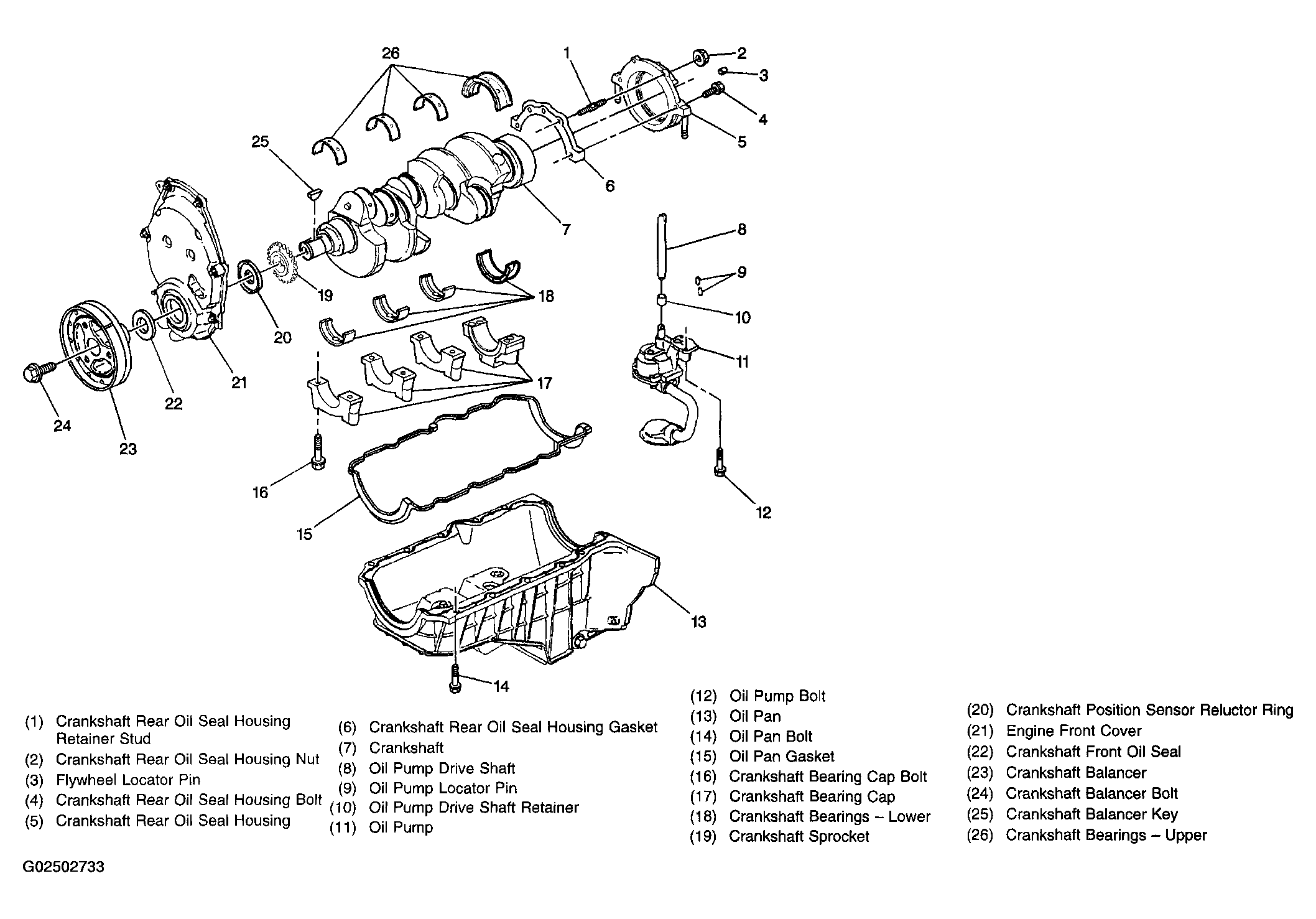

Fig 5: Identifying Lower Engine Components (View 2)
G02502733Courtesy of GENERAL MOTORS CORP.
