Scan Tool Output Controls

WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

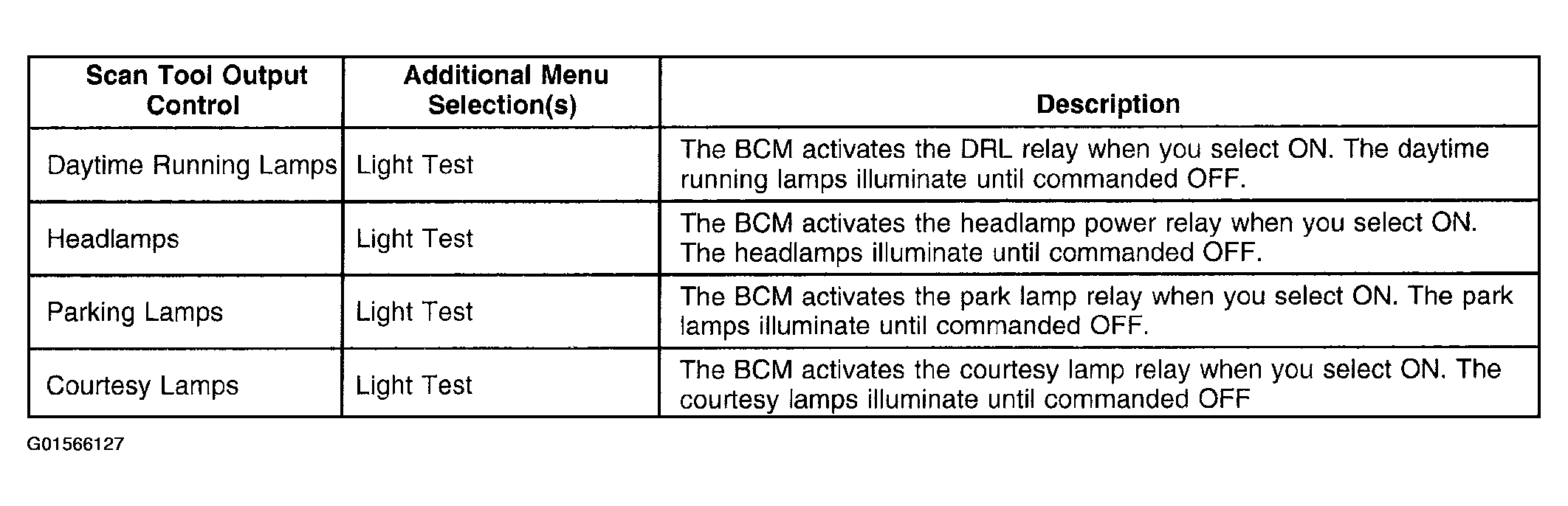

Fig 1: Scan Tool Output Controls - Body Control Module (BCM)

Courtesy of GENERAL MOTORS CORP.
