Controlled/Monitored Subsystem References

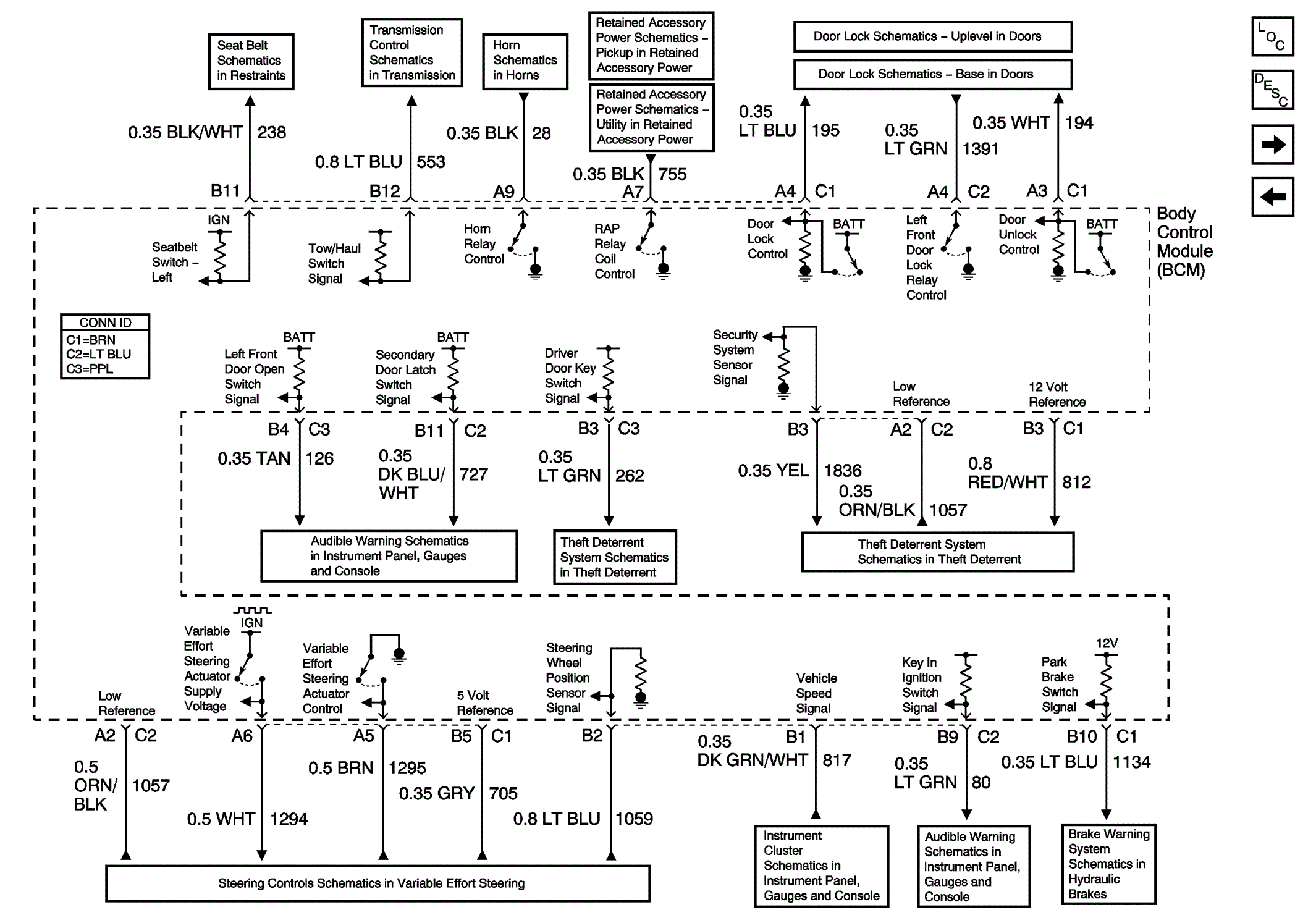

Fig 1: Controlled/Monitored Subsystem References Wiring Schematic
GM662747Courtesy of GENERAL MOTORS COMPANY
