Wiper/Washer System Component Views

WARNING: This page is about a different car, the 2002 GMC C3500 HD and 2002 Chevrolet C3500 HD. However, it is still accessible from the selected car via links, so may be relevant.

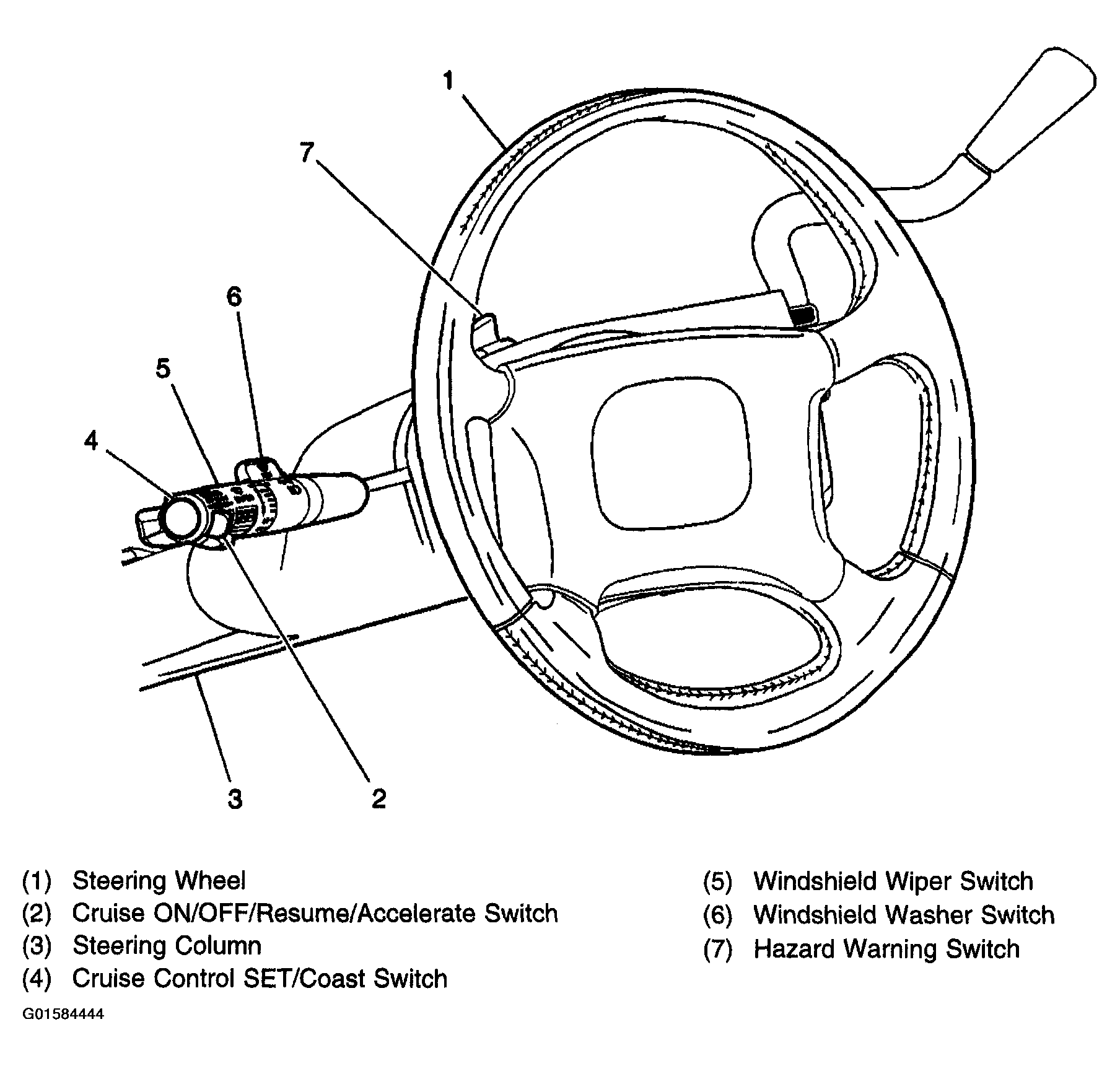

Fig 1: Steering Column Switches
G01584444Courtesy of GENERAL MOTORS CORP.

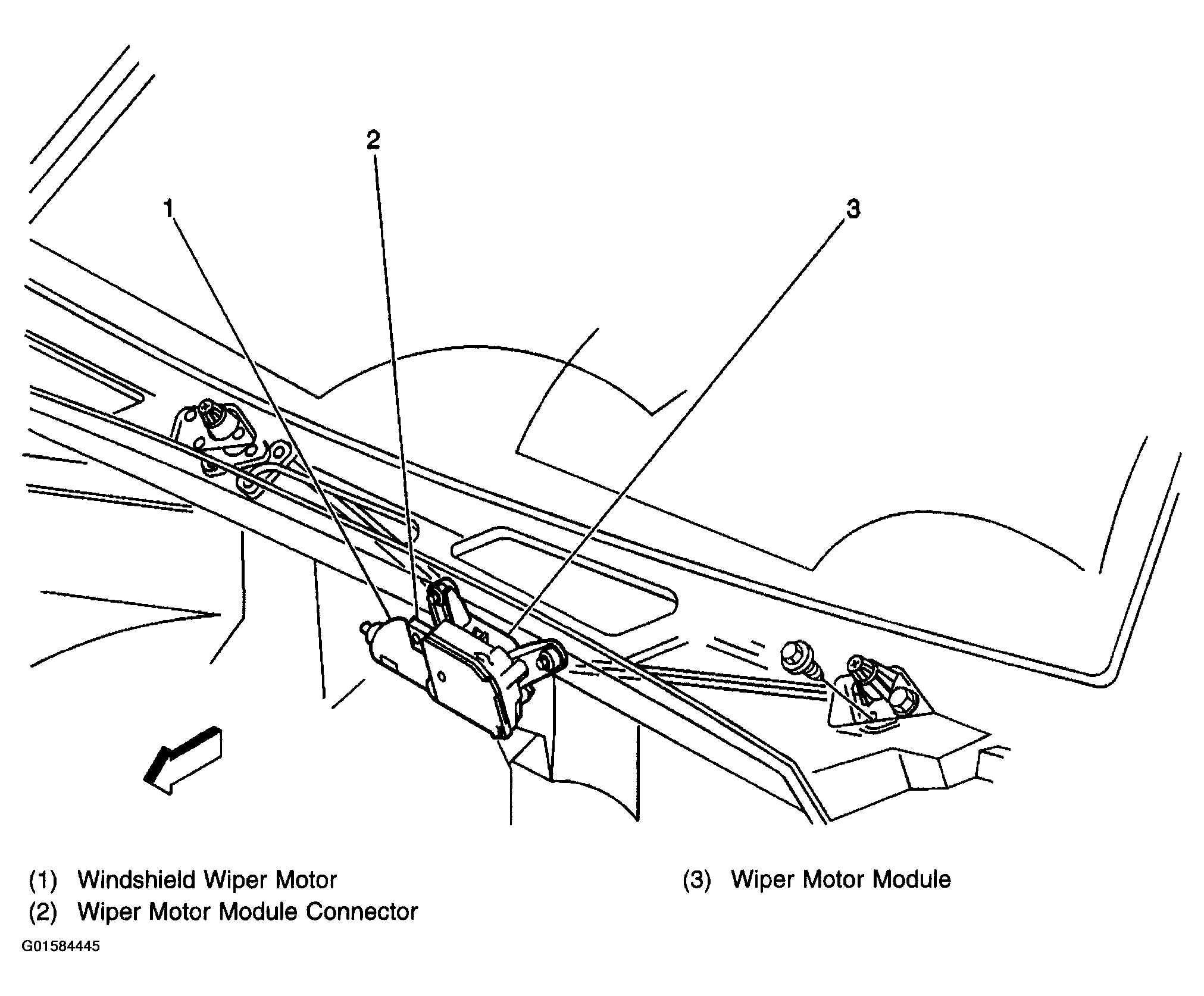

Fig 2: Windshield Wiper Motor Module
G01584445Courtesy of GENERAL MOTORS CORP.

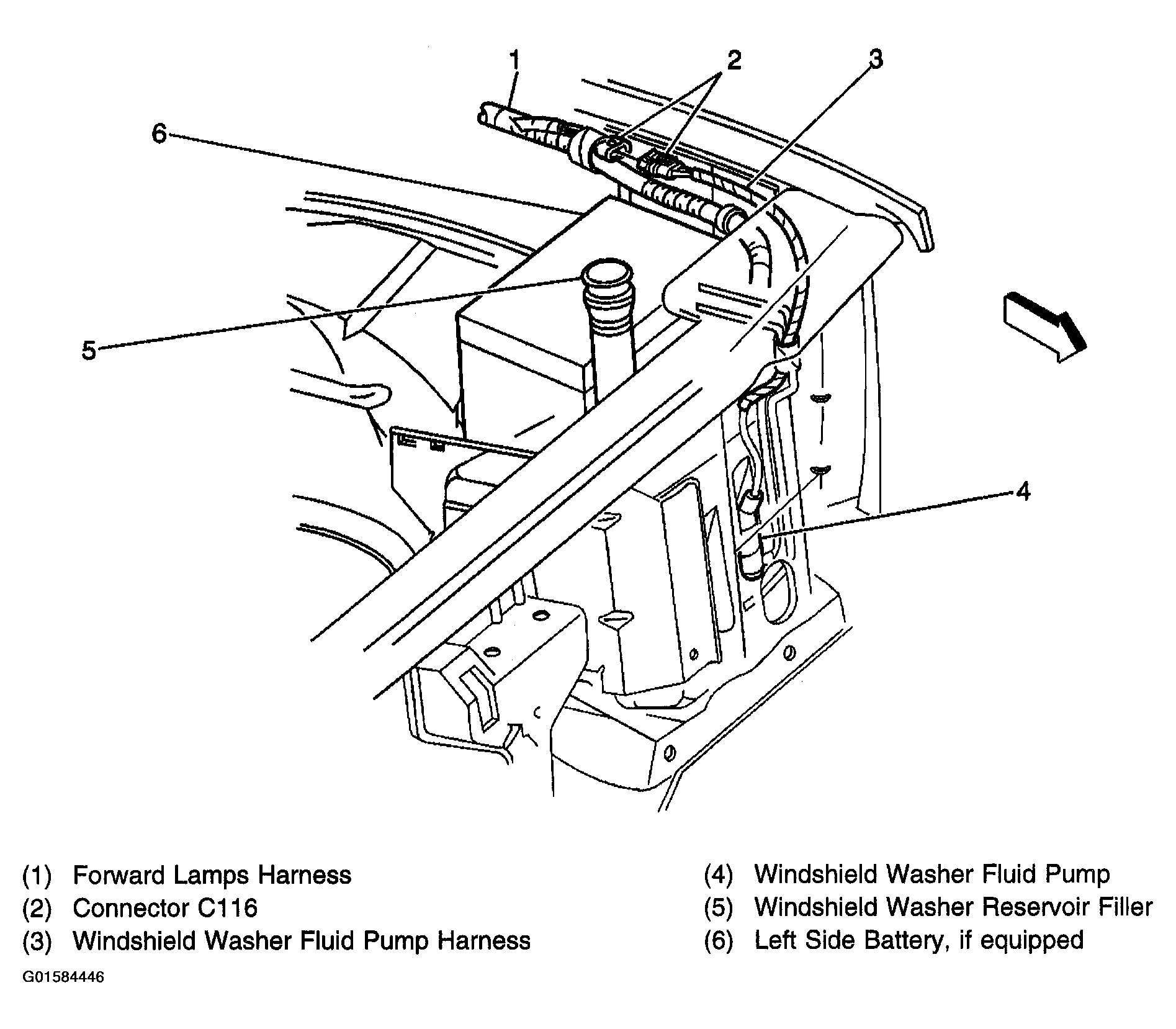

Fig 3: Windshield Washer Fluid Pump & Connectors
G01584446Courtesy of GENERAL MOTORS CORP.
