Removal Procedure
WARNING: This page is about a different car, the 2002 GMC C3500 HD and 2002 Chevrolet C3500 HD. However, it is still accessible from the selected car via links, so may be relevant.
The daytime running lamp (DRL) module circuit board is enclosed in a plastic case under the left side of the instrument panel.
CAUTION:
Refer to BATTERY DISCONNECT CAUTION
.
- Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE (SINGLE BATTERY) or BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE (AUXILIARY BATTERY) .

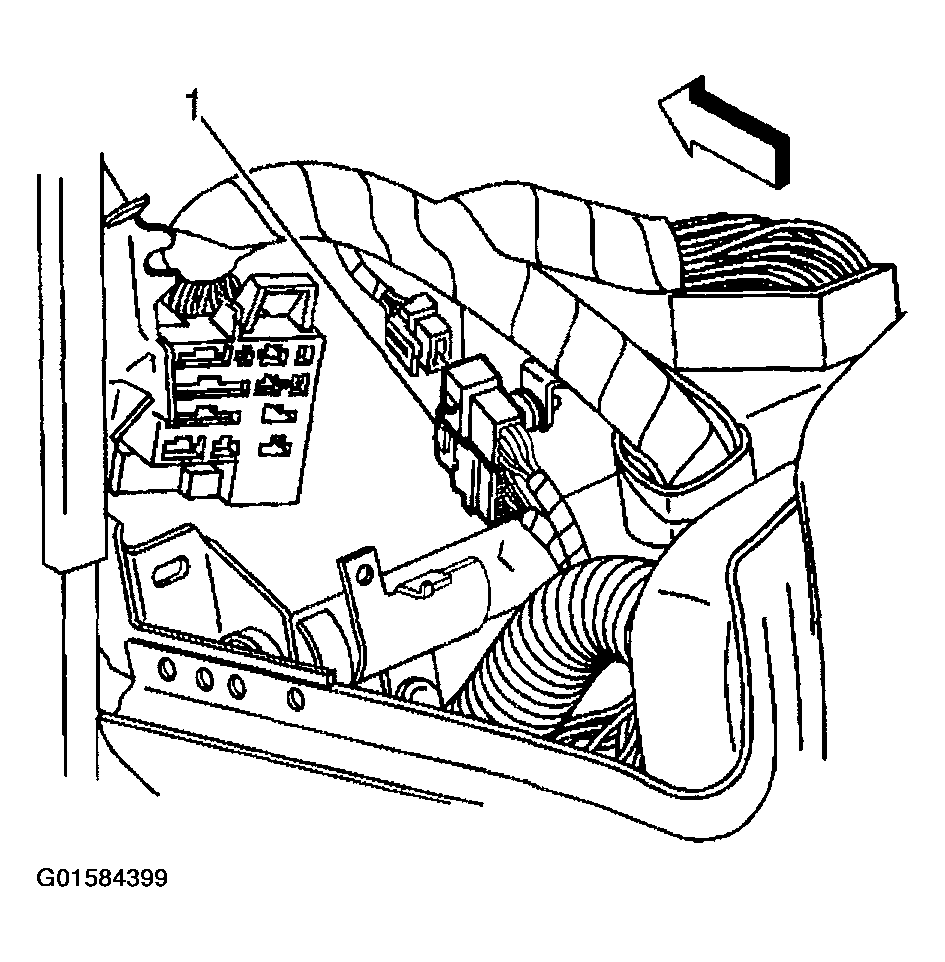

- Open the DRL module cover (1).
- Remove the DRL module circuit board from the module using a suitable tool.
