Fuel Tank Components - Secondary (8.1L)

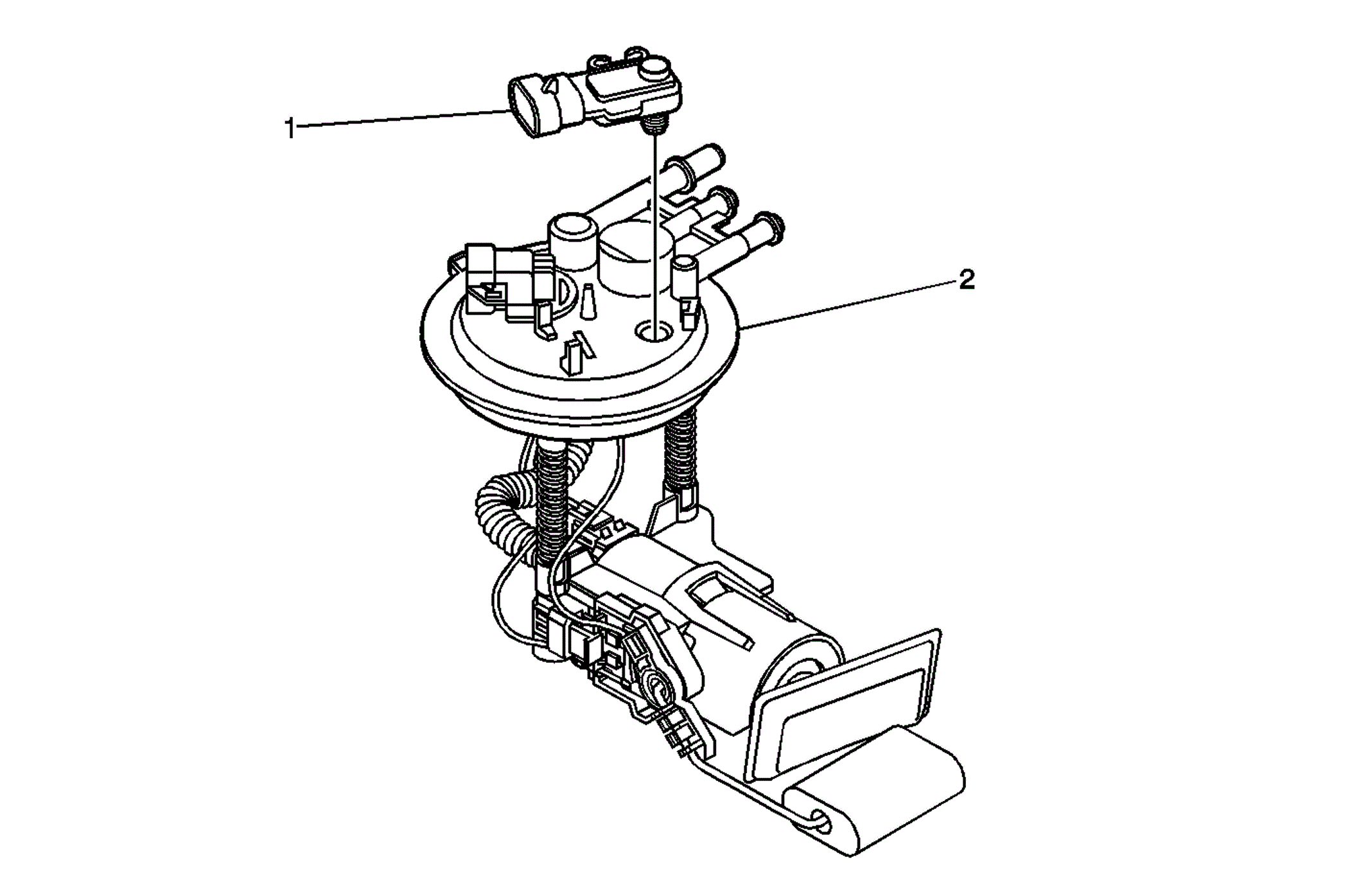

Fig 1: Fuel Tank Components - Secondary

GM776129

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Secondary Fuel Pressure Sensor
2	Secondary Fuel Sender Assembly
