Top Left Side of the Engine Components (8.1L)

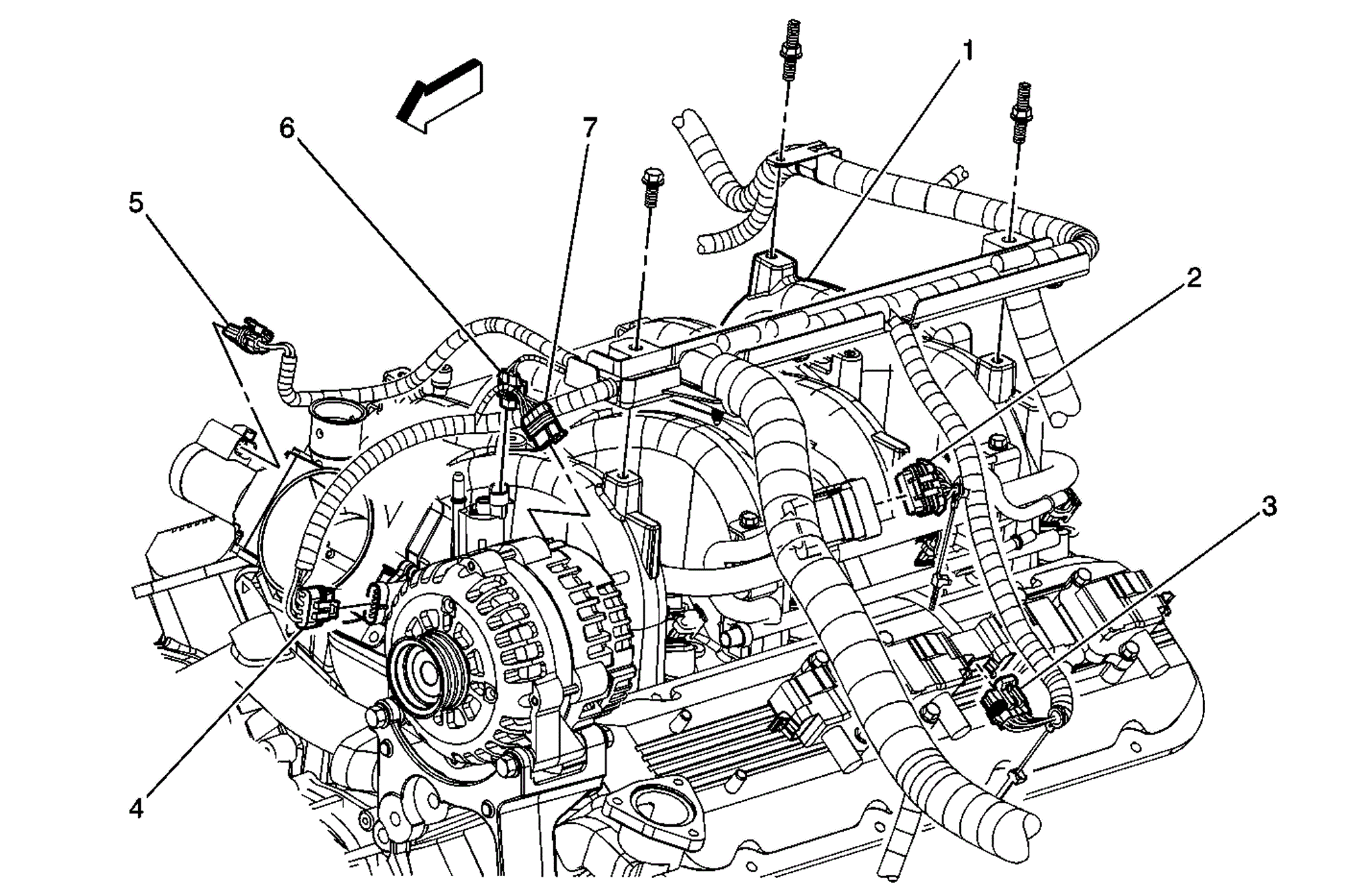

Fig 1: Top Left Side of the Engine Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Engine (8.1L)
2	Injector Connector
3	Coil Connector
4	Throttle Position (TP) Sensor Connector
5	Electronic Throttle Control (ETC) Connector
6	Purge Valve Solenoid Connector
7	Generator Connector
