Dual Generators

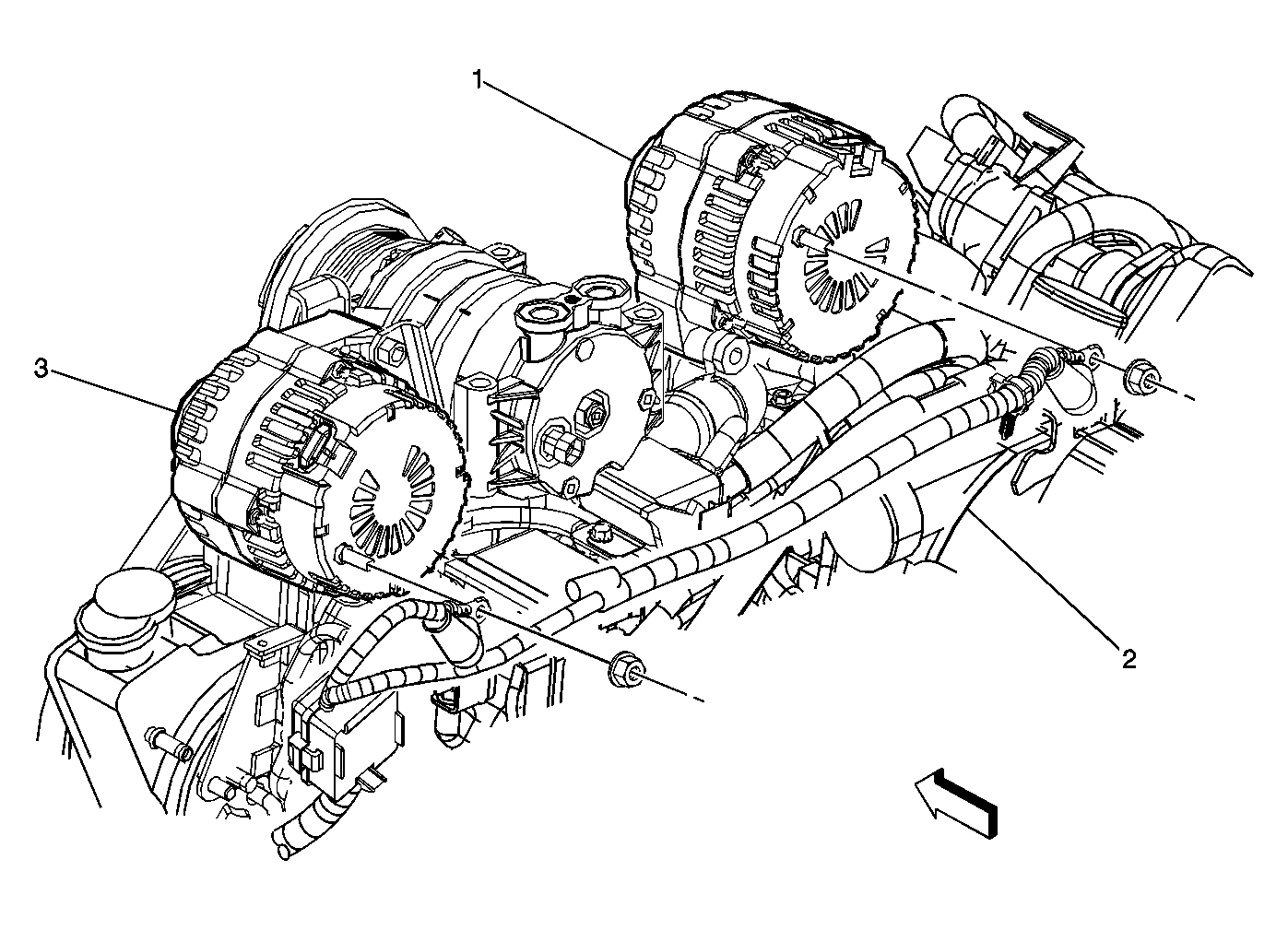

Fig 1: View Of Generators - Diesel
GM741105Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Generator- Primary
2 Engine- 6.6L
3 Generator- Auxiliary
