Installation Procedure

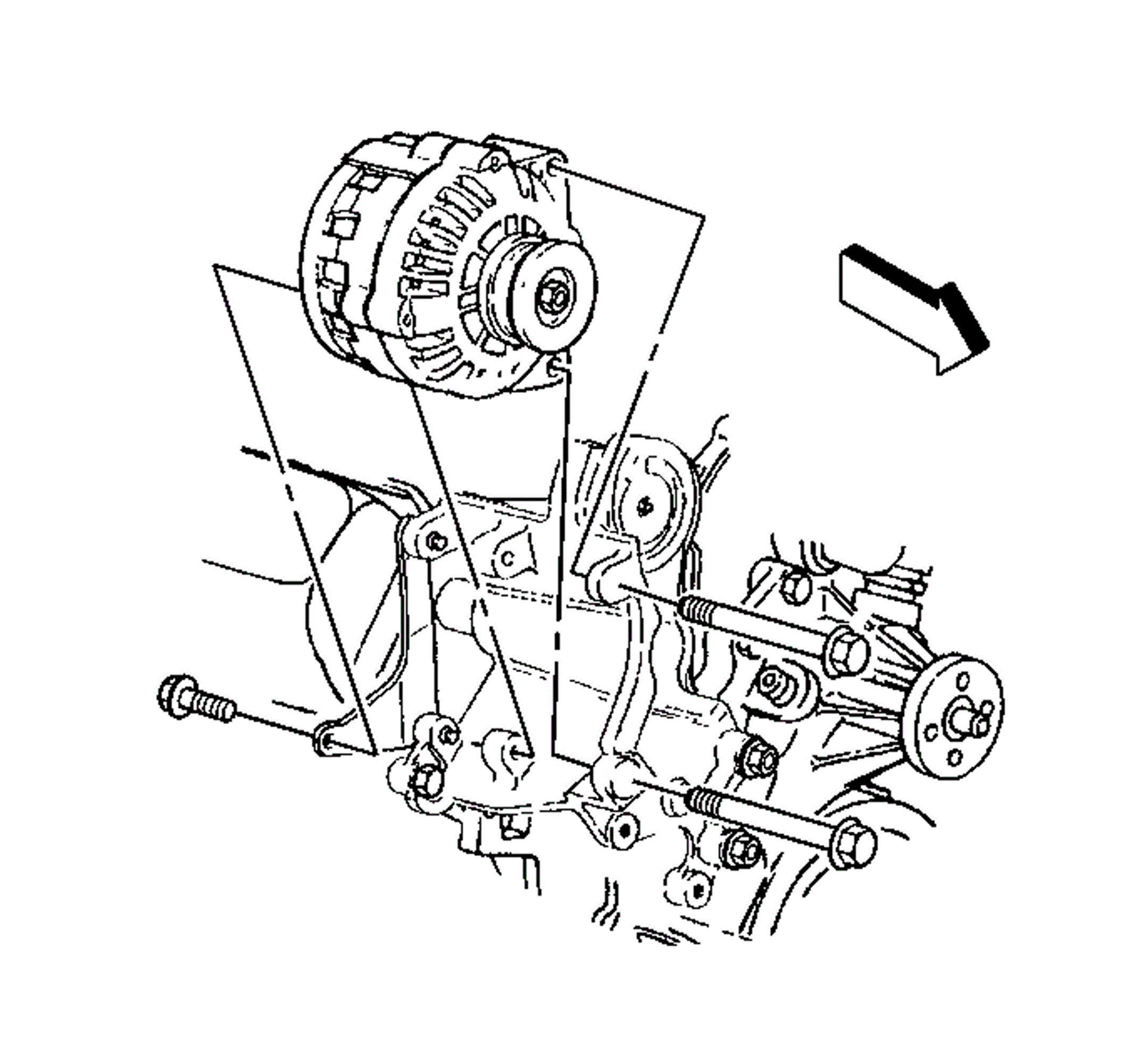

    Fig 1: Generator Mounting Bolts
    GM186800Courtesy of GENERAL MOTORS COMPANY
  1. Install the generator into the generator mounting bracket.
  2. Refer to FASTENER NOTICE in Cautions and Notices.

    Connect the generator mounting bolts.

    Tighten

    • Tighten the right mounting bolt to 25 N.m (18 lb ft).
    • Tighten the left mounting bolt to 50 N.m (37 lb ft).
    • Tighten the mounting bracket bolt at the back of the generator to 25 N.m (18 lb ft).
  3. Install the accessory drive belt. Refer to Drive Belt Replacement in Engine Mechanical-4.3 L.
  4. Connect the terminal plug to the back of the generator.
    5. Fig 2: View Of Generator Cable & Nut
    GM395686Courtesy of GENERAL MOTORS COMPANY
  5. Connect the battery lead to the back of the generator.

    Tighten

    Tighten to battery terminal B+ nut to 18 N.m (13 lb ft).

  6. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (Single Battery) .
