Installation Procedure

    Fig 1: View Of Generator Cable & Nut
    GM395686Courtesy of GENERAL MOTORS COMPANY
  1. Install the generator cable to the generator, perform the following:
    1. Install the generator cable.
    2. Refer to FASTENER NOTICE in Cautions and Notices.

      Install the generator cable nut to the terminal stud.

      Tighten

      Tighten the generator cable nut to 9 N.m (80 lb in).

    3. Slide the boot over the terminal stud.
    2. Fig 2: View Of Generator & Bolts (6.6L (LB7))
    GM660347Courtesy of GENERAL MOTORS COMPANY
  2. Install the generator.
  3. Install the generator bolts.

    Tighten

    Tighten the generator bolts to 50 N.m (37 lb ft).

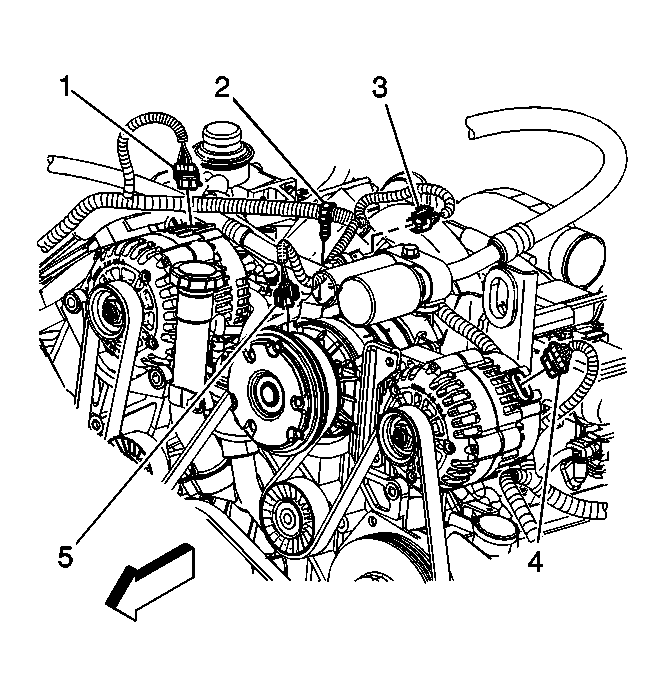

    4. Fig 3: View of Generator Harness, Clip, A/C Refrigerant Switch, Dual Generator Harness Connector & A/C Compressor Clutch
    GM674573Courtesy of GENERAL MOTORS COMPANY
  4. Connect the generator electrical connector (1).
  5. Install the drive belt. Refer to Drive Belt Replacement in Engine Mechanical - 6.6 L
  6. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (Auxiliary Battery) , Battery Negative Cable Disconnection and Connection (Single Battery) .
