Keyless Entry Schematics

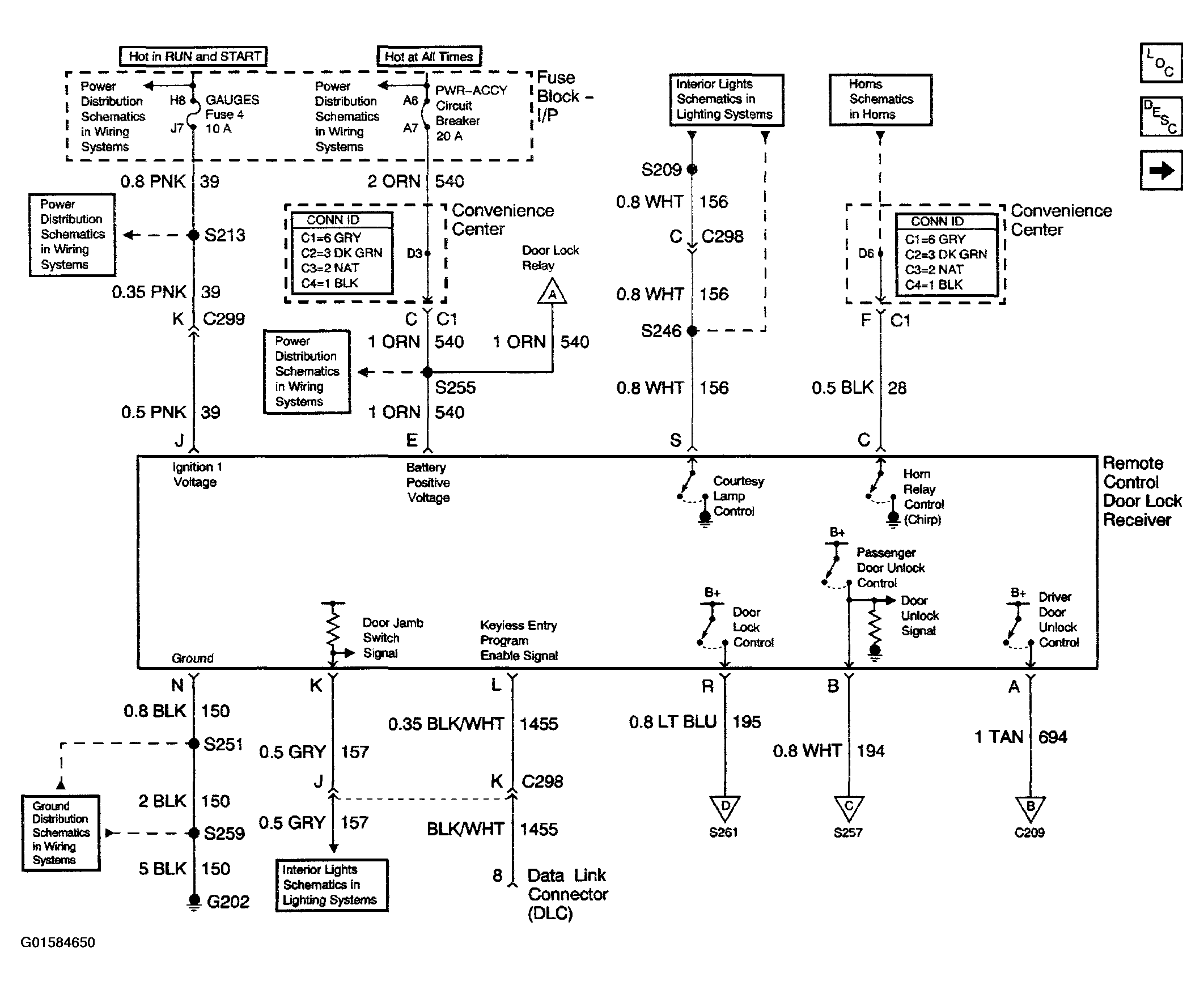

Fig 1: Keyless Entry Schematics (Module Power, Grounding & DLC; Lights & Horn Control)

Courtesy of GENERAL MOTORS CORP.

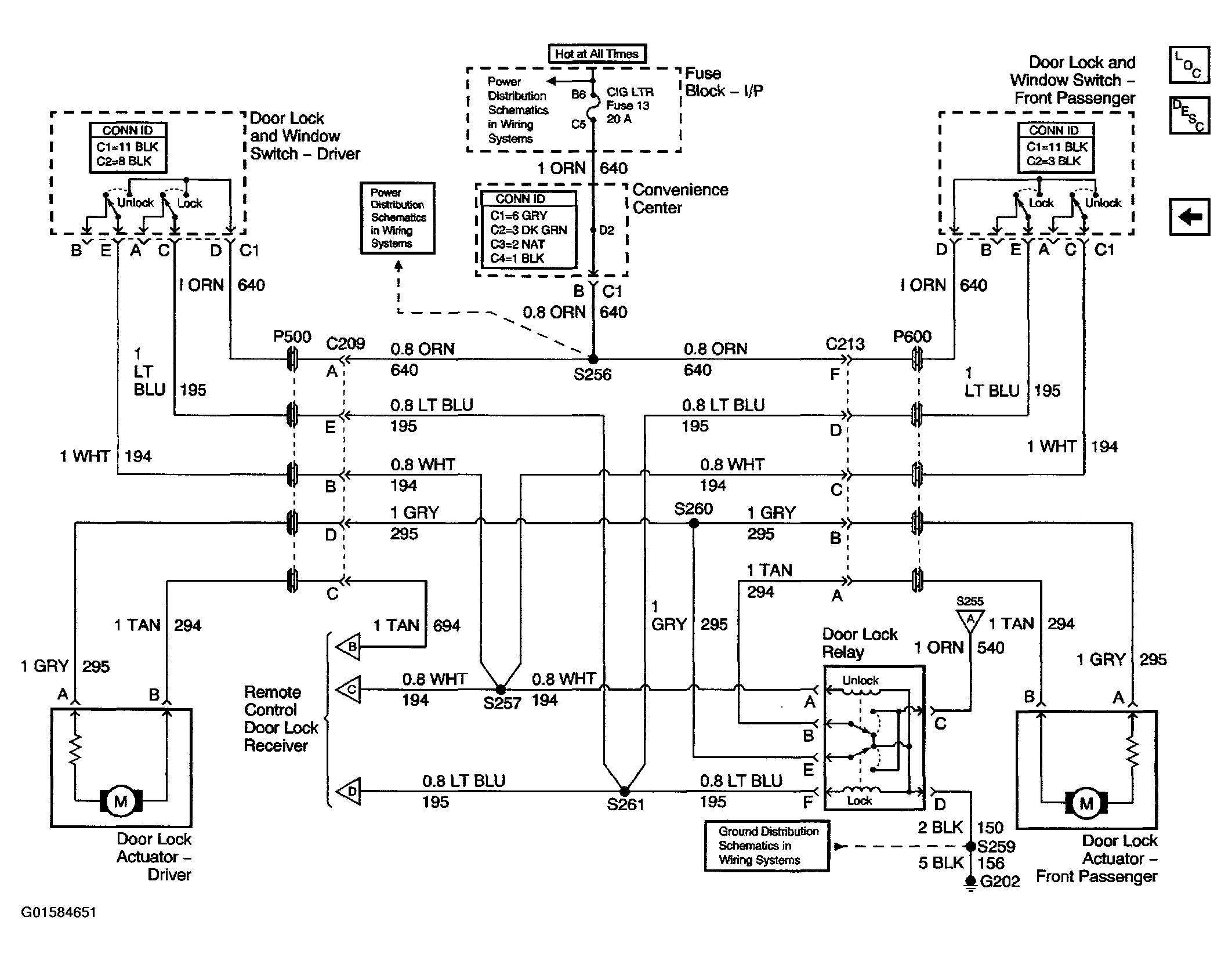

Fig 2: Keyless Entry Schematics (Door Lock Controls)

Courtesy of GENERAL MOTORS CORP.
