Coolant Level Module Connector End View - L65

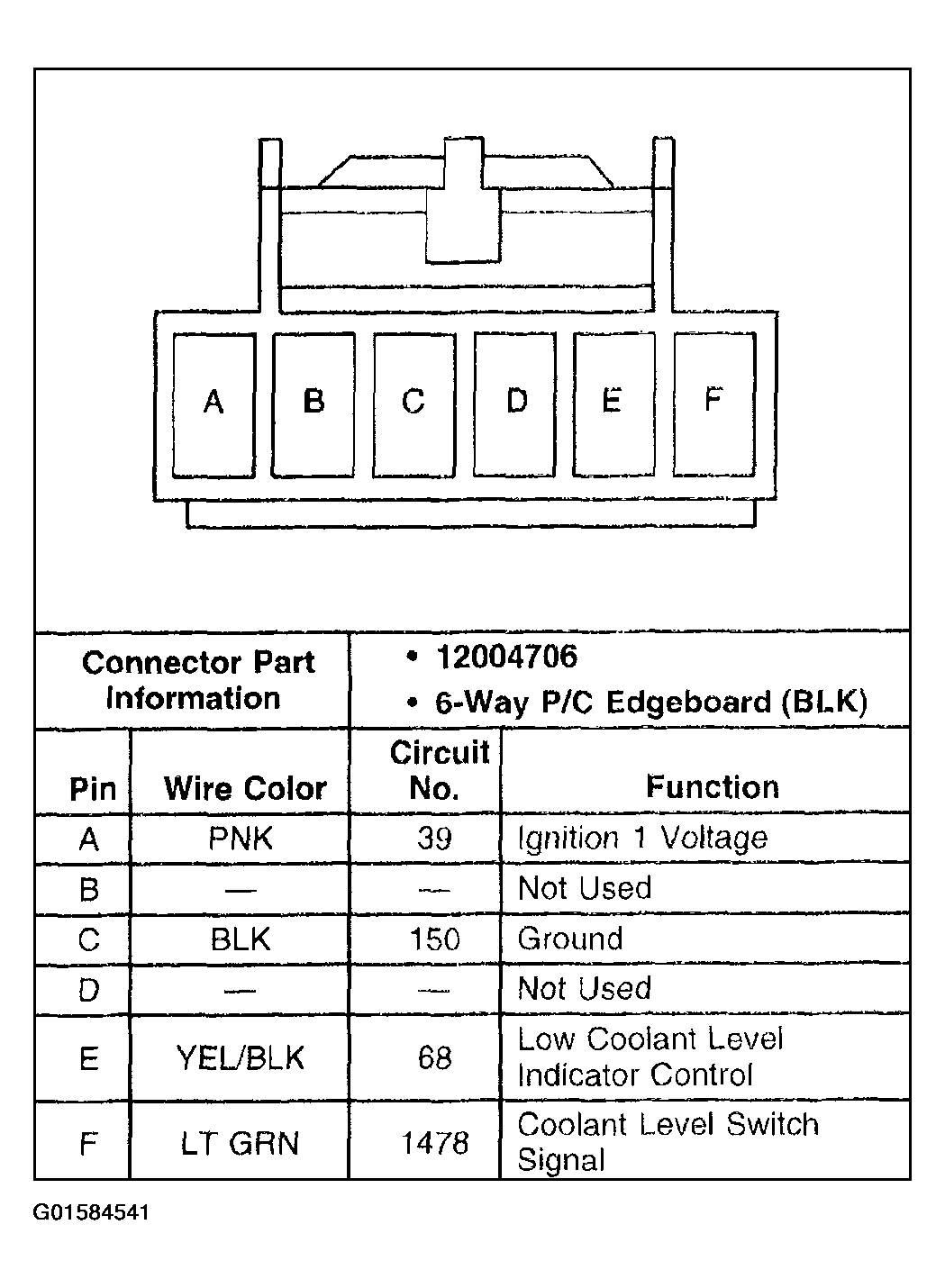

Fig 1: Coolant Level Module Connector End View - L65
G01584541Courtesy of GENERAL MOTORS CORP.
