Coolant Level Module Connector End View

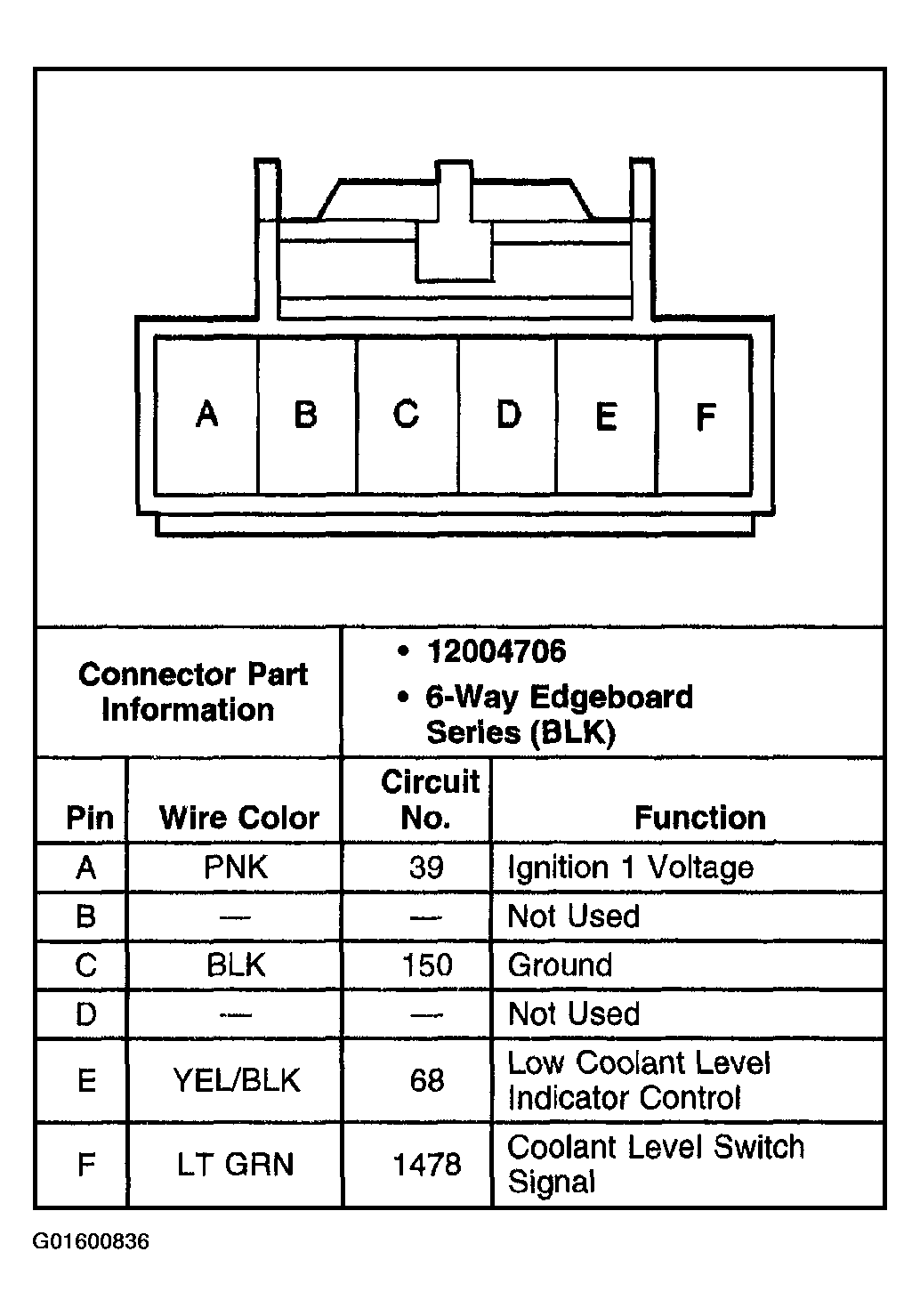

Fig 1: Coolant Level Module Connector End View
G01600836Courtesy of GENERAL MOTORS CORP.
