HVAC Control Assembly Connector End View - C1

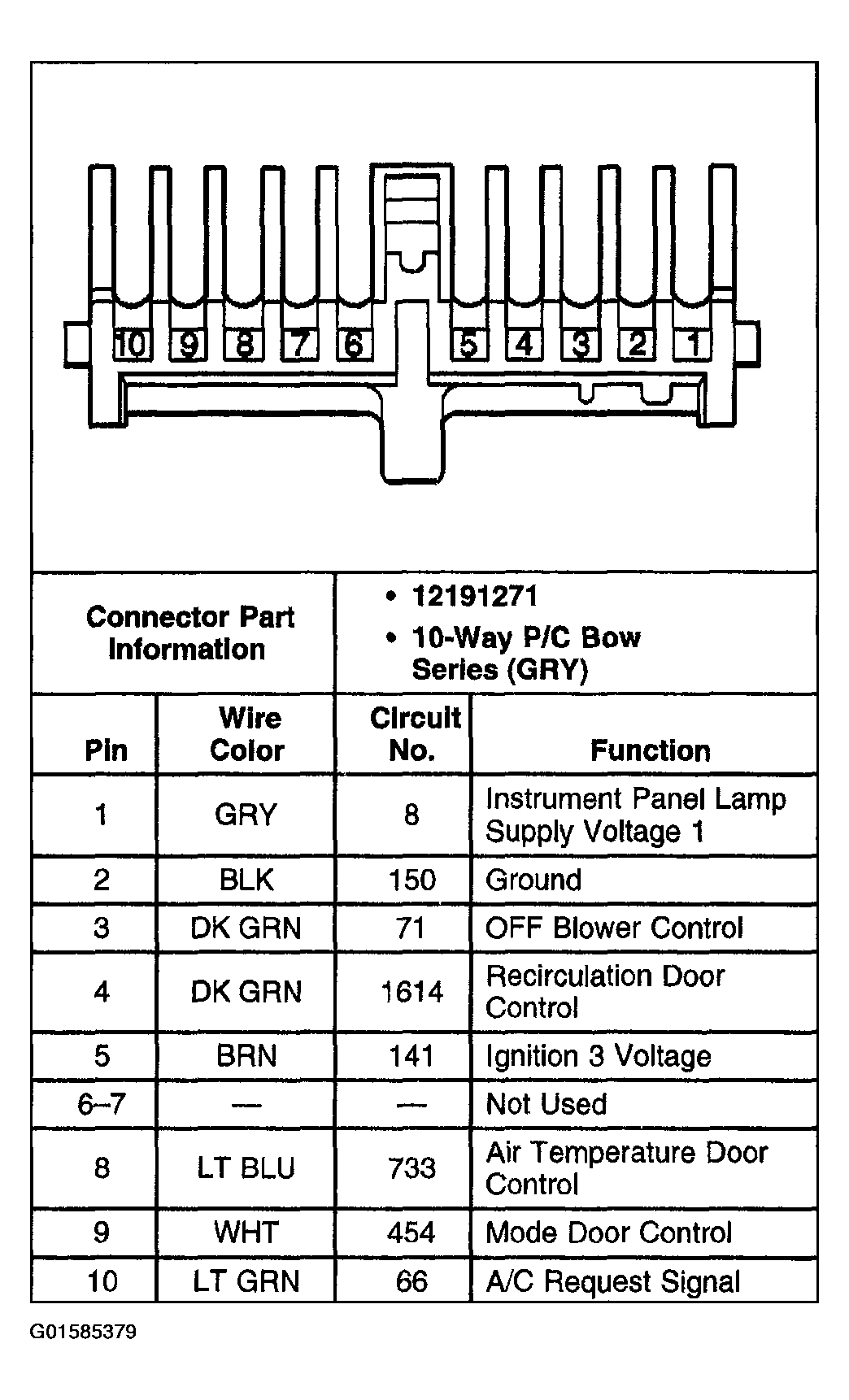

Fig 1: HVAC Control Assembly Connector End View - C1
G01585379Courtesy of GENERAL MOTORS CORP.
