Interior Lamp Control Module Connector End View
Interior Lamp Control Module Connector End View

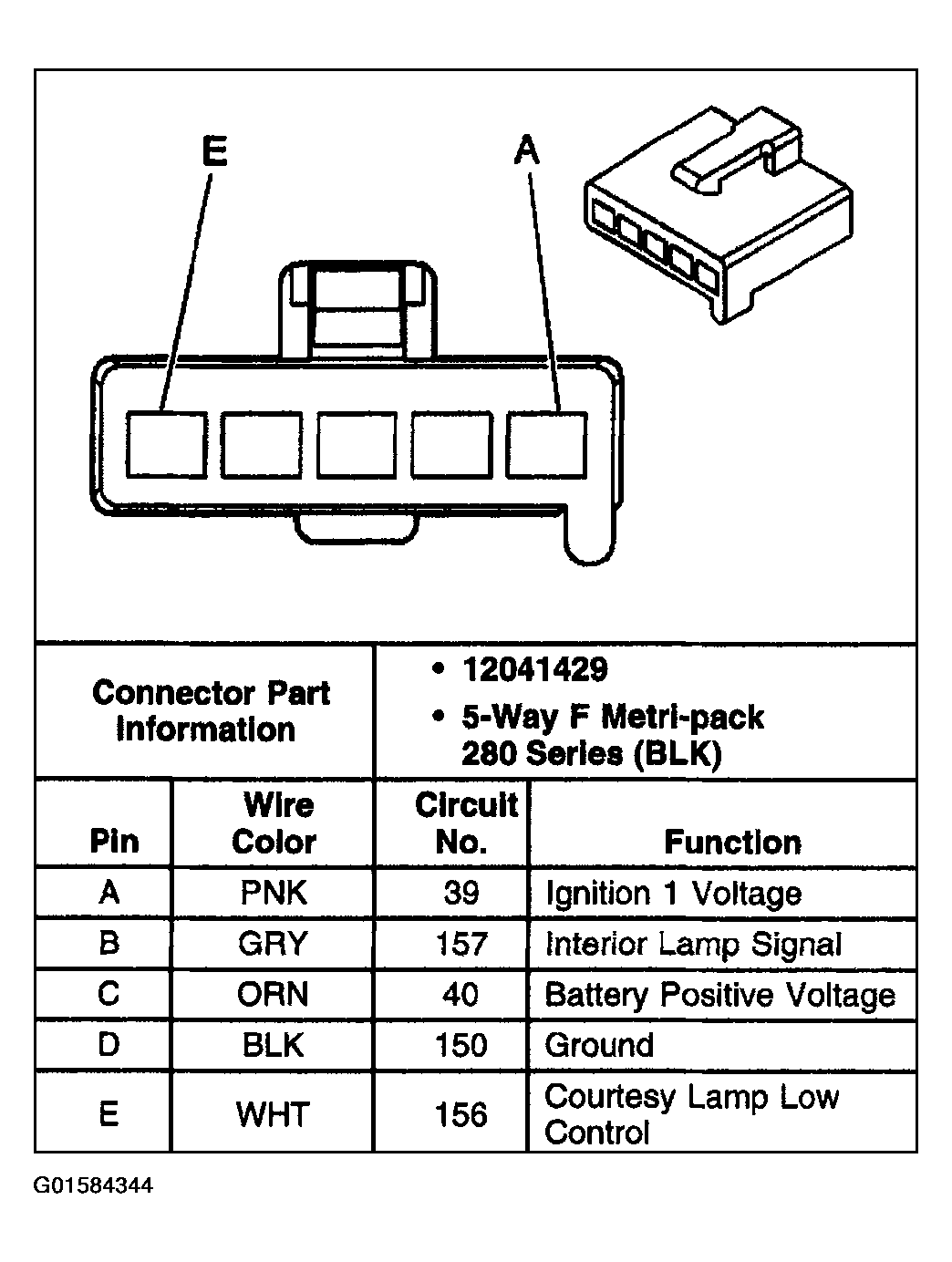

Fig 1: Interior Lamp Control Module Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
