Connector End View
›
Theft Deterrent Control Module Connector End View
Theft Deterrent Control Module Connector End View

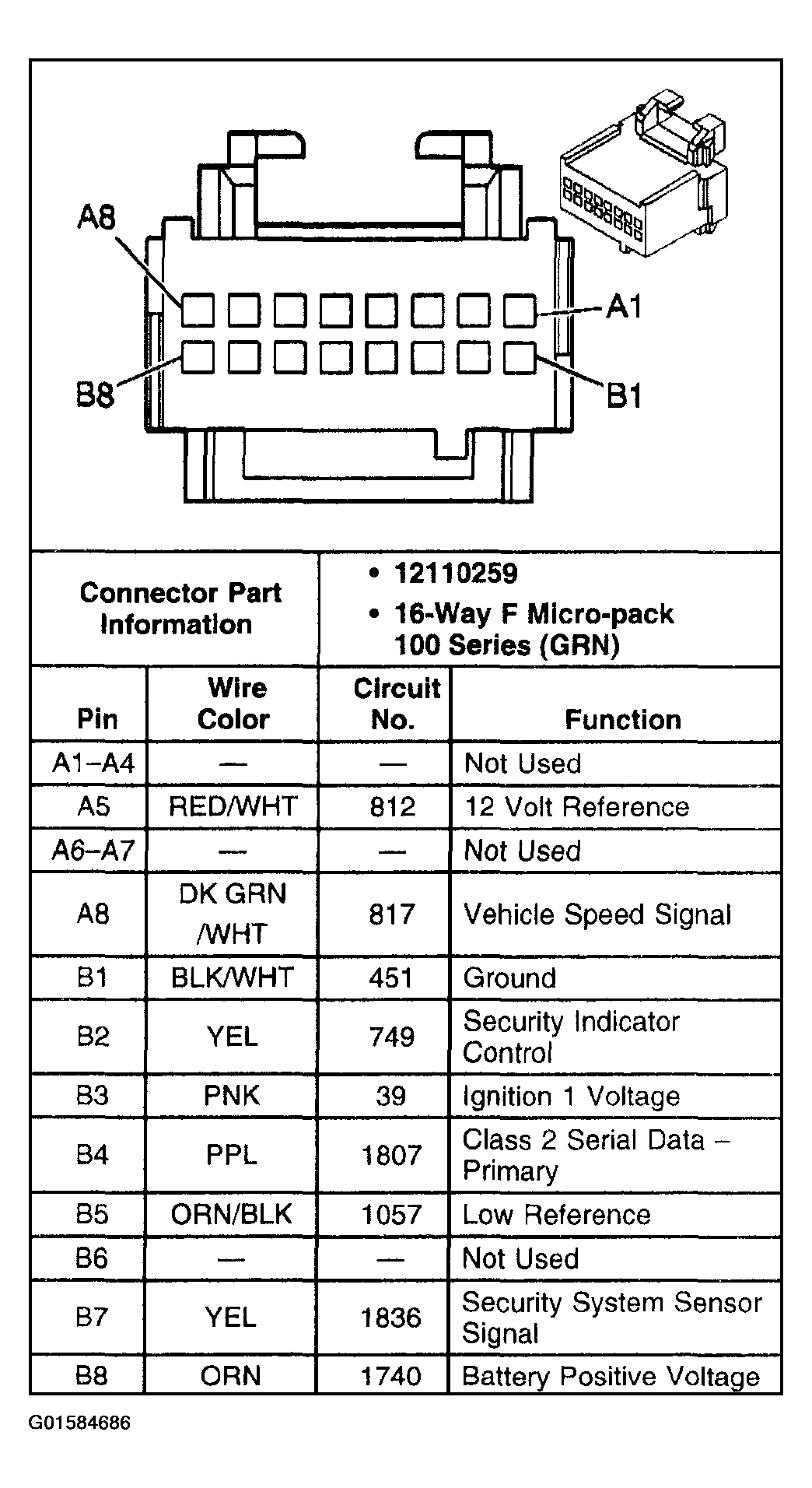

Fig 1: Theft Deterrent Control Module Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
