Connector End View
›
Windshield Wiper Motor Module Connector End View
Windshield Wiper Motor Module Connector End View

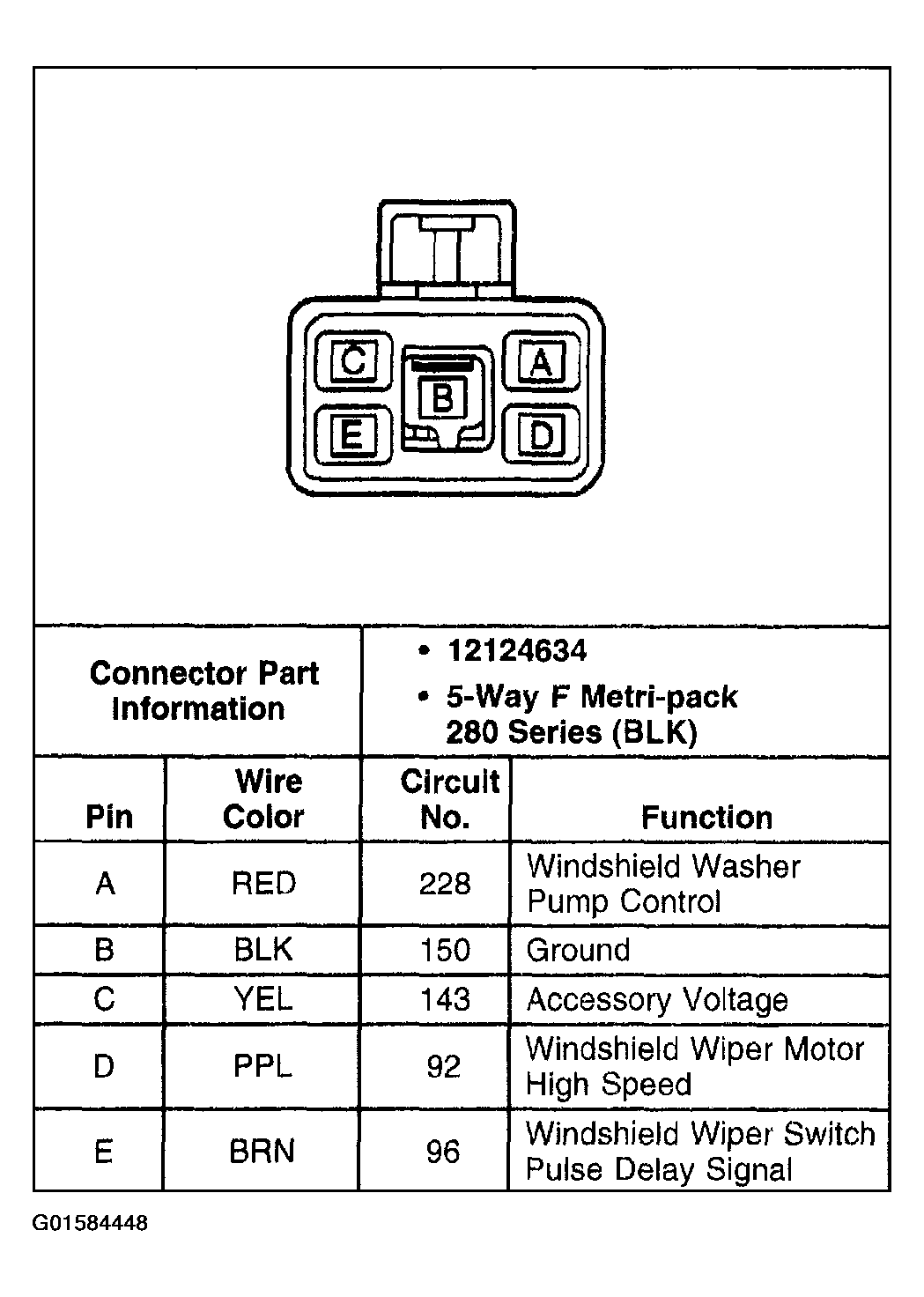

Fig 1: Windshield Wiper Motor Module Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
