Generator Usage (Engine Electrical)

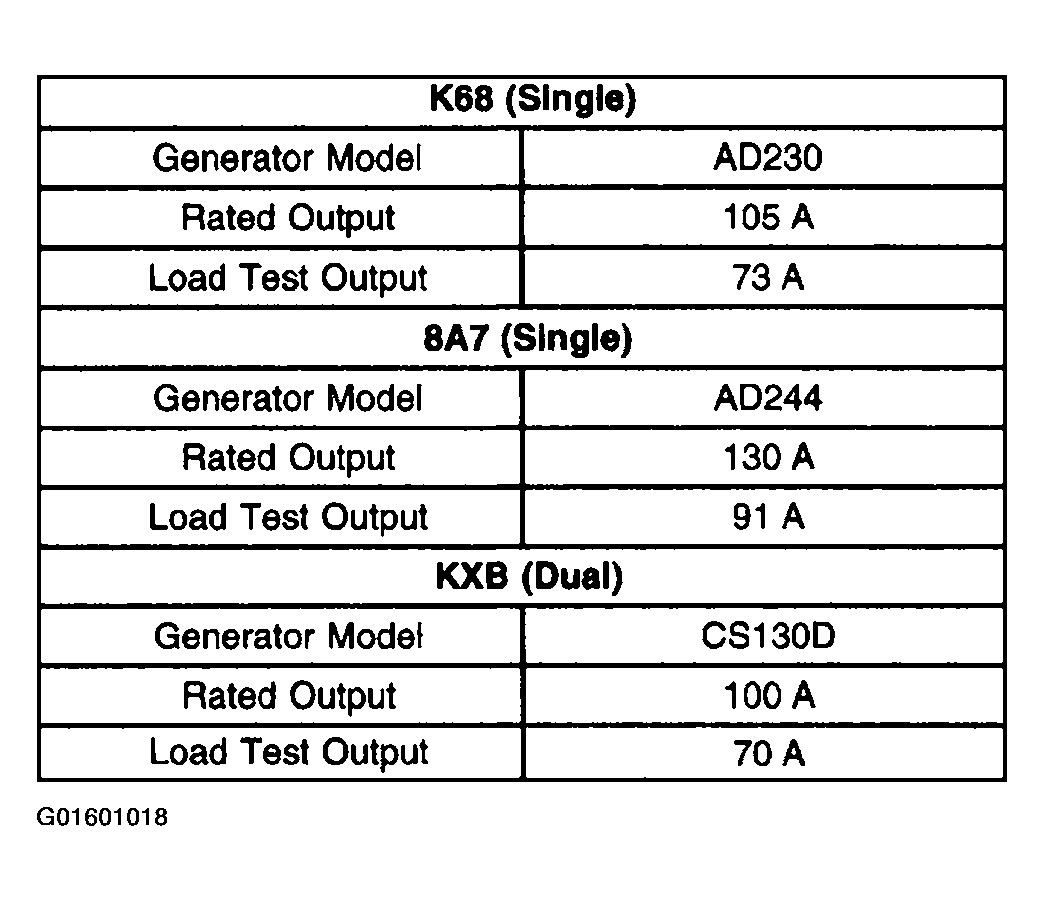

Fig 1: Generator Usage
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
