Horns Connector End Views

Fig 1: Horn - Left
G01584673Courtesy of GENERAL MOTORS CORP.

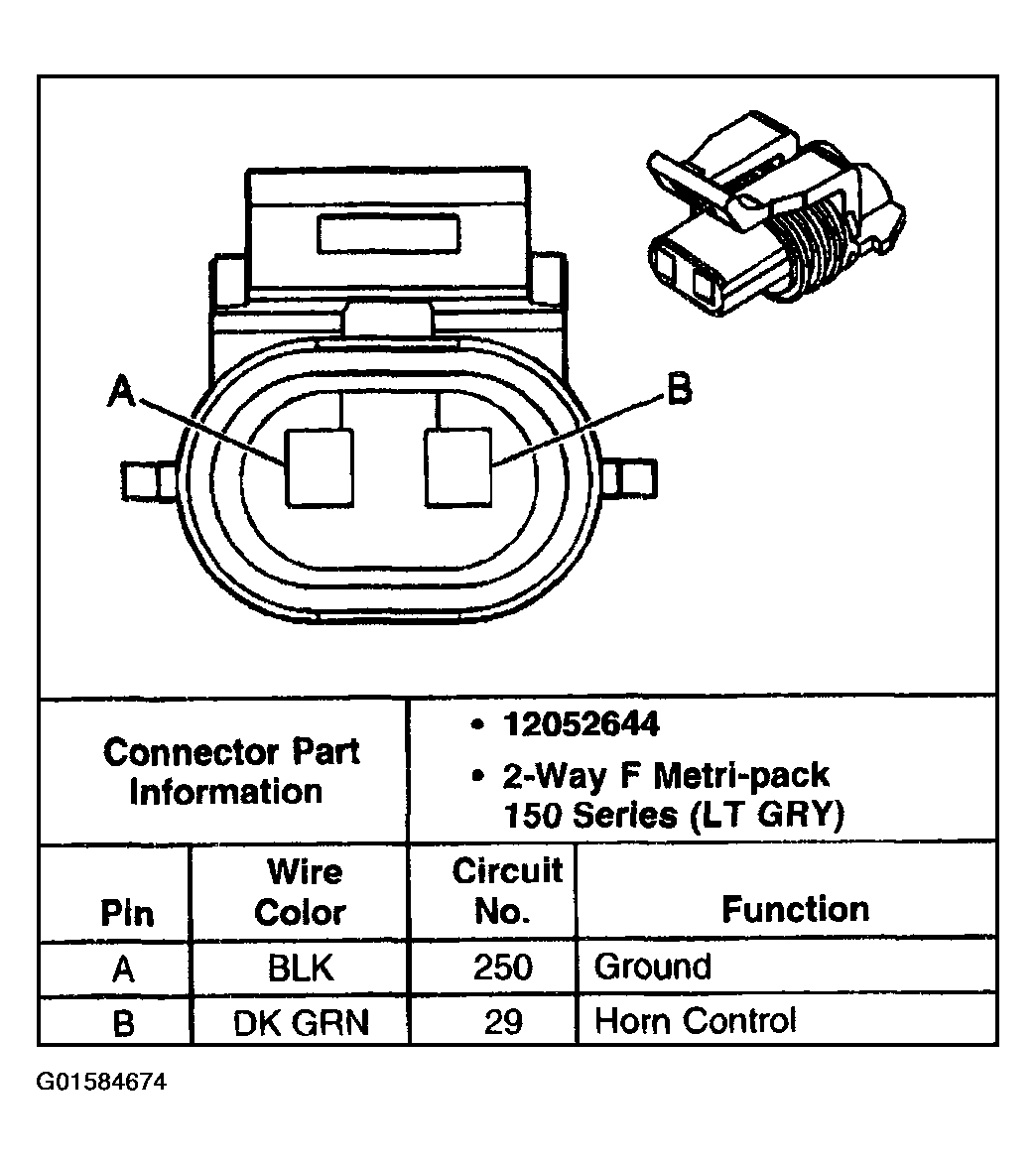

Fig 2: Horn - Right
G01584674Courtesy of GENERAL MOTORS CORP.
