Air Cleaner Restriction Indicator

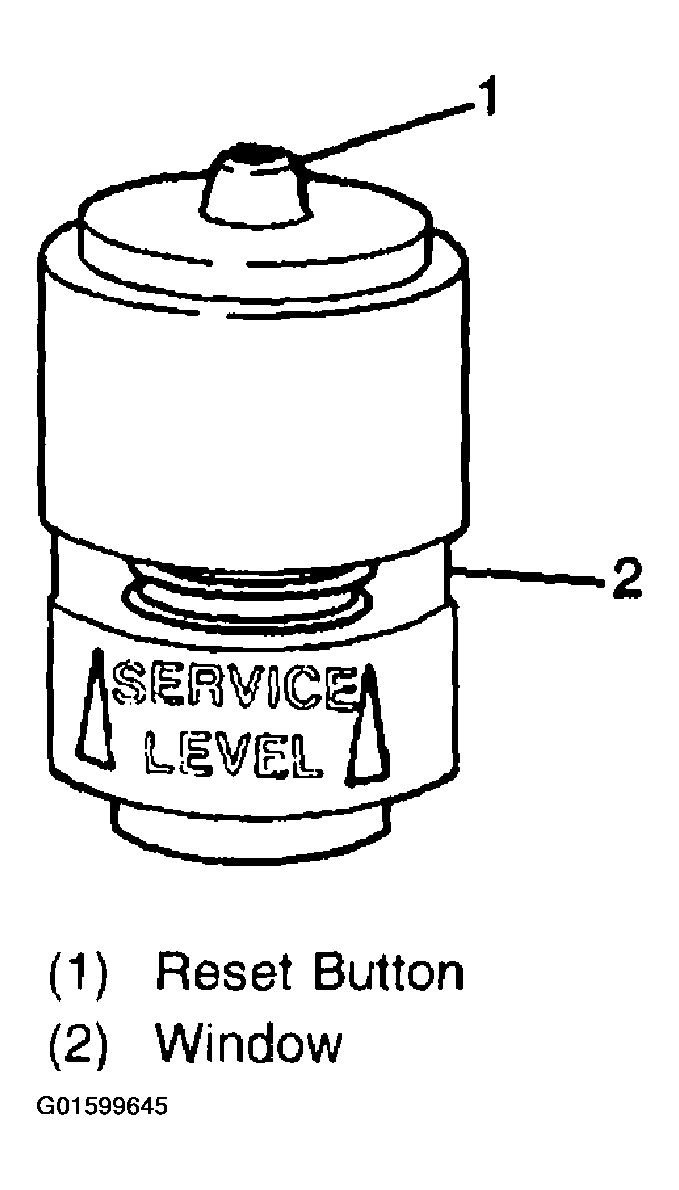

Fig 1: Air Cleaner Restriction Indicator

Courtesy of GENERAL MOTORS CORP.

The air cleaner restriction indicator is located on the intake duct between the air cleaner assembly and the mass air flow (MAF) sensor.

If the area inside of the clear section is green, no air filter service is required. If the area inside the clear section is orange and Change Air Filter appears, replace the air filter.
