Test Description

The numbers below refer to the step numbers on the diagnostic table.

1. 2. This step determines if DTC P0182 is a hard failure or an intermittent condition.
2. 3. This test will determine if the signal circuit is shorted to ground.

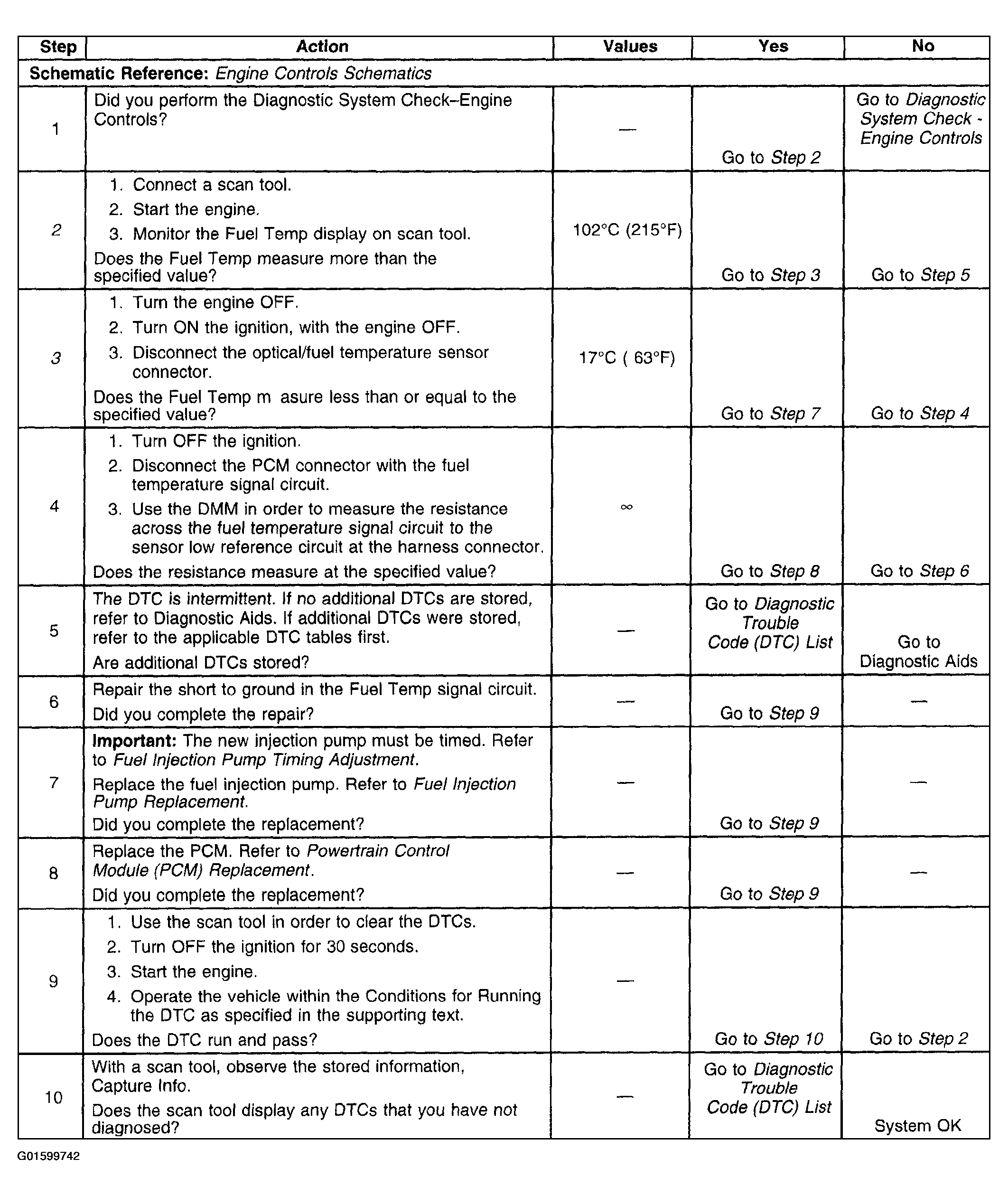

Fig 1: DTC P0182

Courtesy of GENERAL MOTORS CORP.
