Test Description

The numbers below refer to the step numbers on the diagnostic table.

1. 3. This step will check the ESO control circuit for an open.
2. 10. After repairing the circuit for a short to voltage, check the solenoid for proper operation.

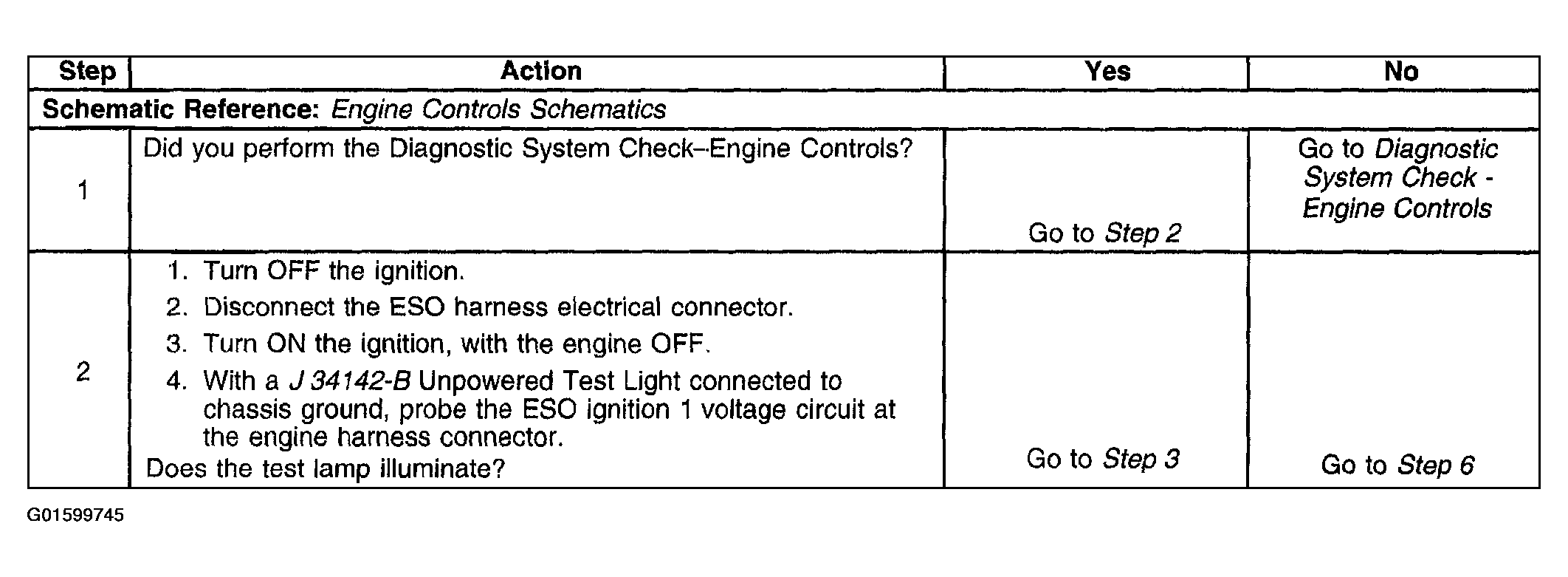

Fig 1: DTC P0215 (Steps 1-2)

Courtesy of GENERAL MOTORS CORP.

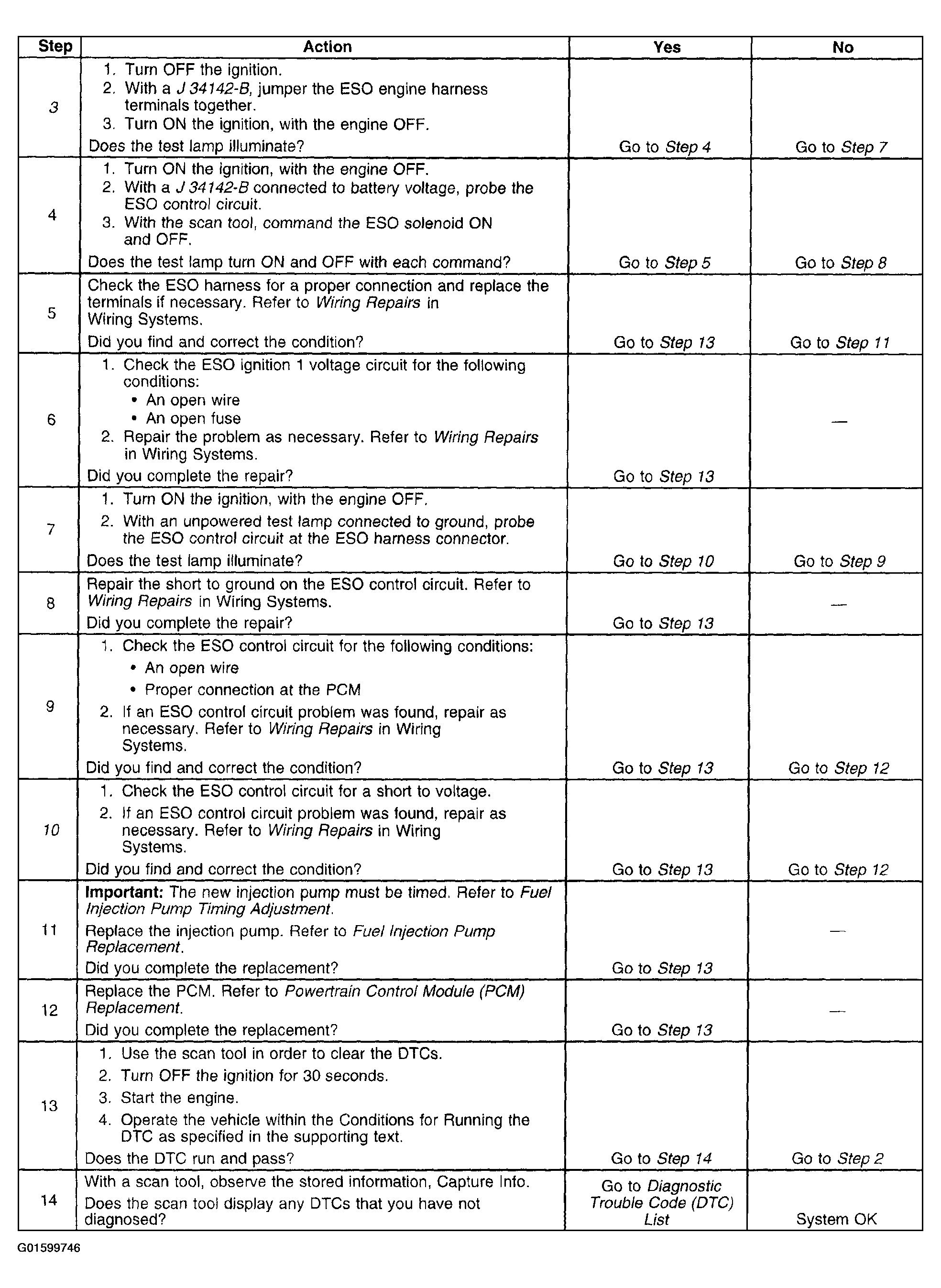

Fig 2: DTC P0215 (Steps 3-14)

Courtesy of GENERAL MOTORS CORP.
