Test Description

The number below refers to the step number on the diagnostic table.

1. 2. This step determines if DTC P1125 is a hard failure or an intermittent condition.

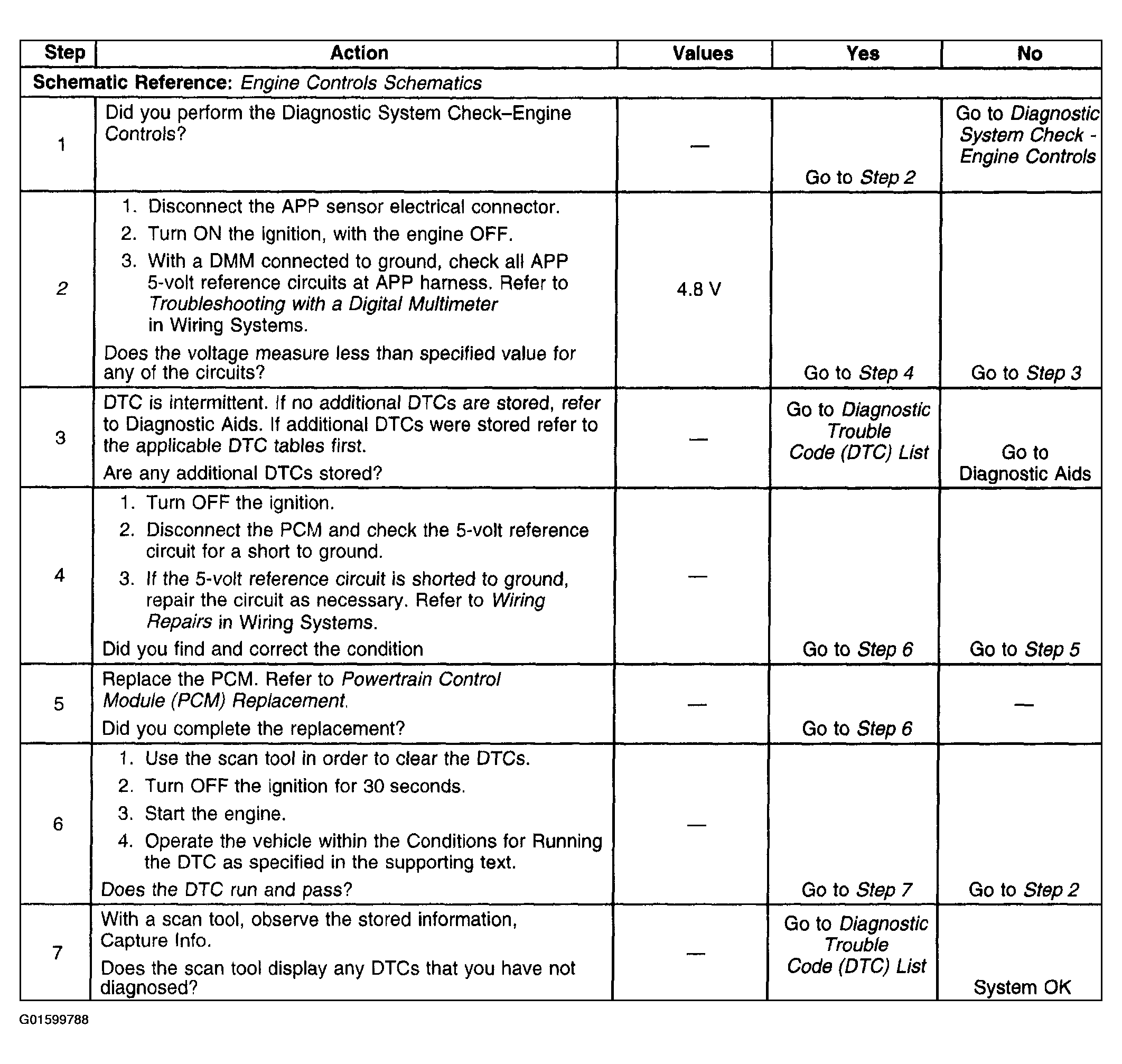

Fig 1: DTC P1125

Courtesy of GENERAL MOTORS CORP.
