Removal Procedure

CAUTION: Refer to BATTERY DISCONNECT CAUTION .
  1. Remove the negative battery cables.
  2. Remove the electrical connector.

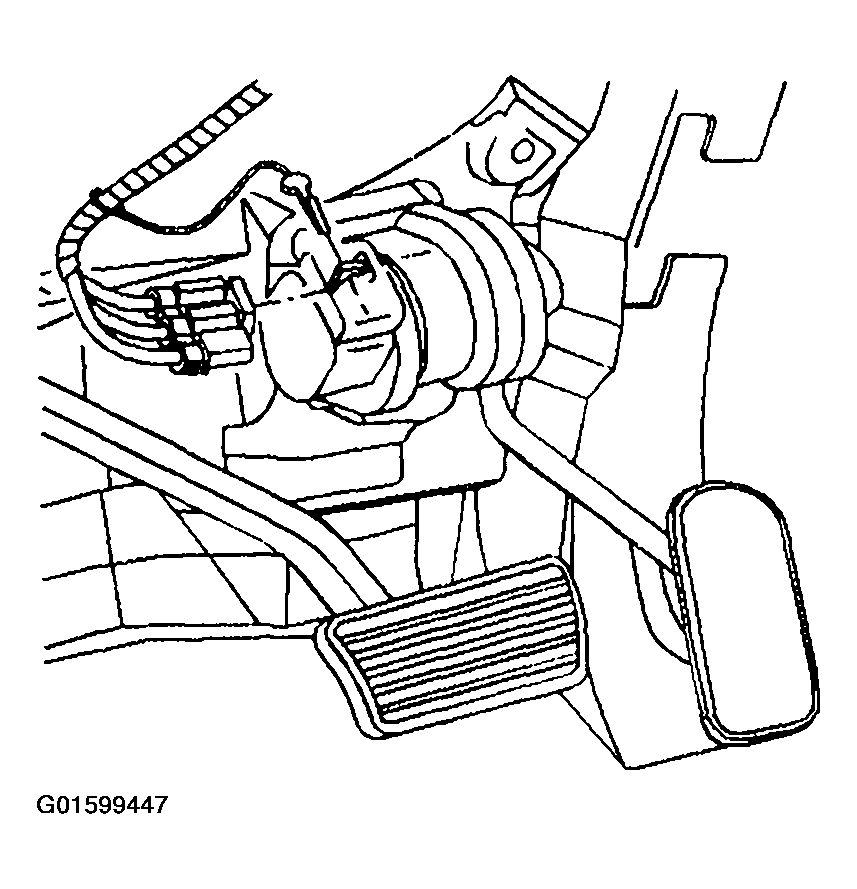

    Fig 1: APP Sensor Electrical Connector
    G01599447Courtesy of GENERAL MOTORS CORP.
  3. Remove the mounting bolts.

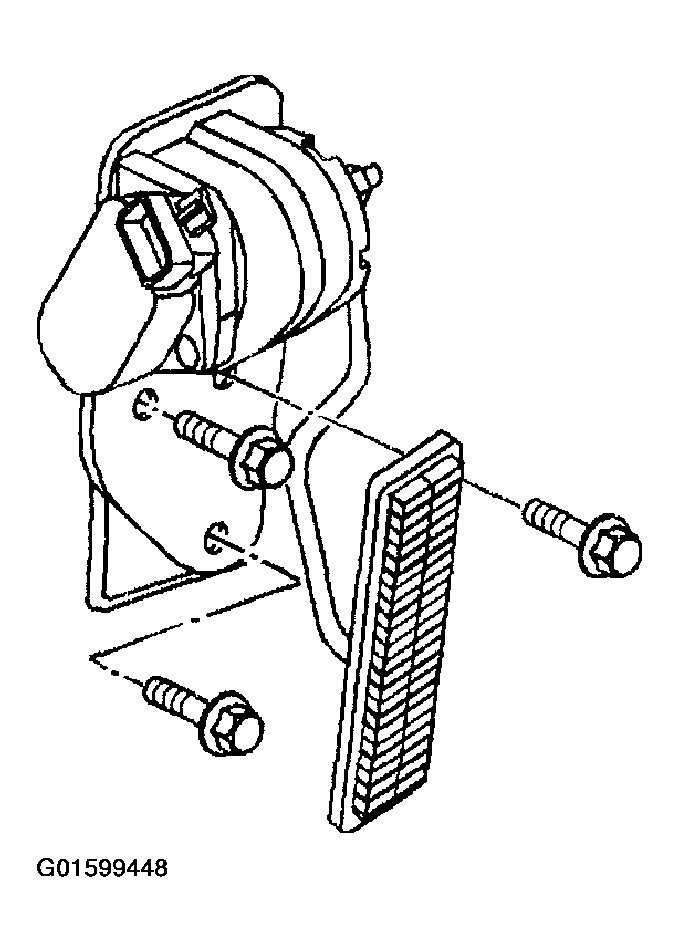

    Fig 2: APP Module Mounting Bolts
    G01599448Courtesy of GENERAL MOTORS CORP.
  4. Remove the APP module.

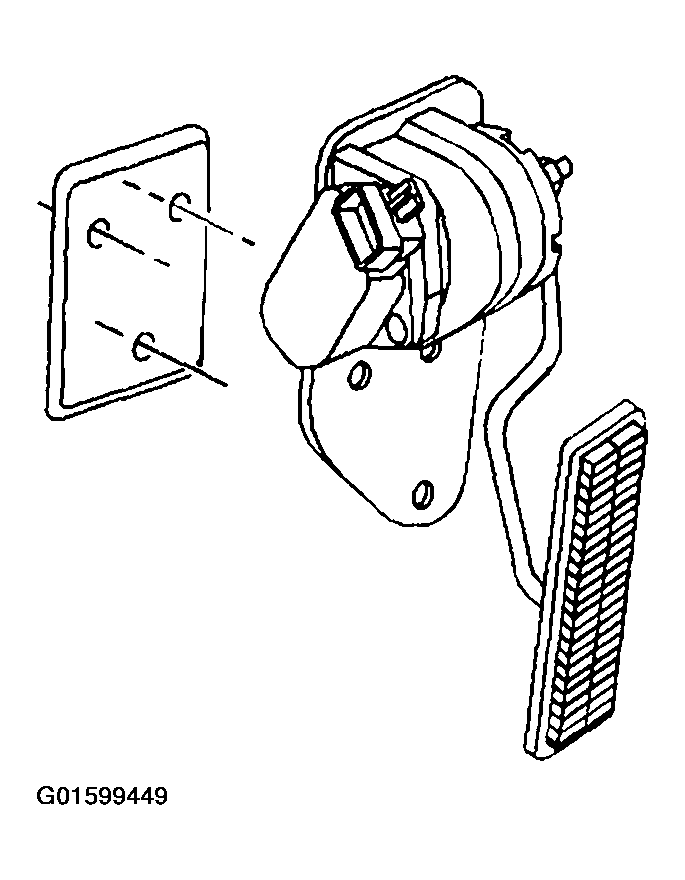

    Fig 3: APP Module
    G01599449Courtesy of GENERAL MOTORS CORP.
