Removal Procedure

  1. Remove the electrical connector from the engine shut-down (ESO) solenoid.
  2. Use compressed air in order to blow any dirt away from the ESO solenoid.
  3. Remove the ESO solenoid.

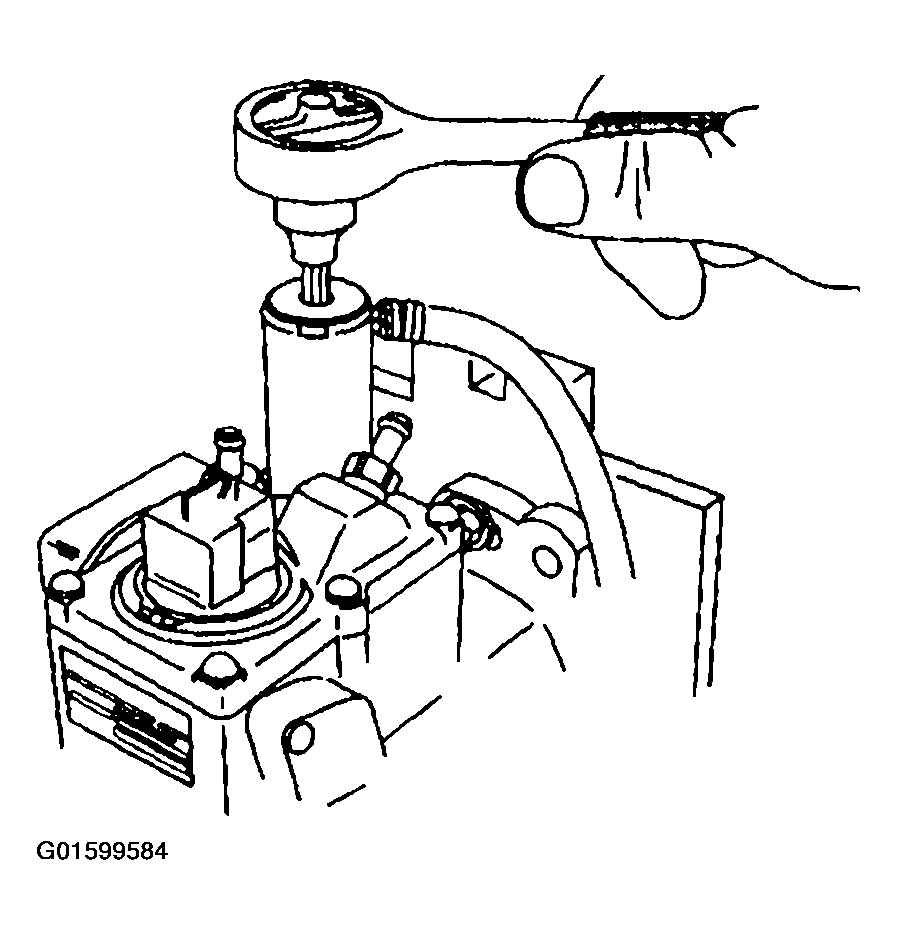

    Fig 1: Removing Engine Shutdown Solenoid
    G01599584Courtesy of GENERAL MOTORS CORP.
