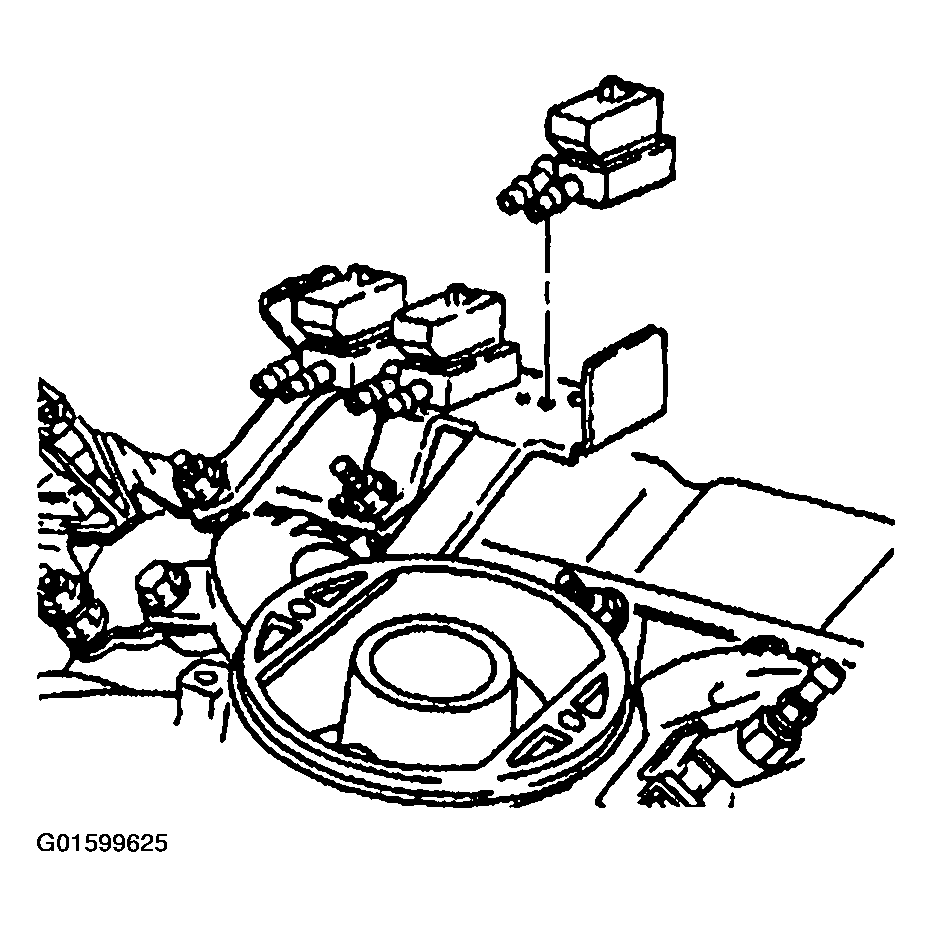

Removal Procedure
CAUTION:
Refer to BATTERY DISCONNECT CAUTION
.
- Remove negative battery cables.
- Remove the electrical connector from the solenoid.
- Remove the vacuum hoses.
- Remove the solenoid mounting bolt.
- Remove the wastegate solenoid.
