Power Door Systems Component Views
Power Door Systems Component Views

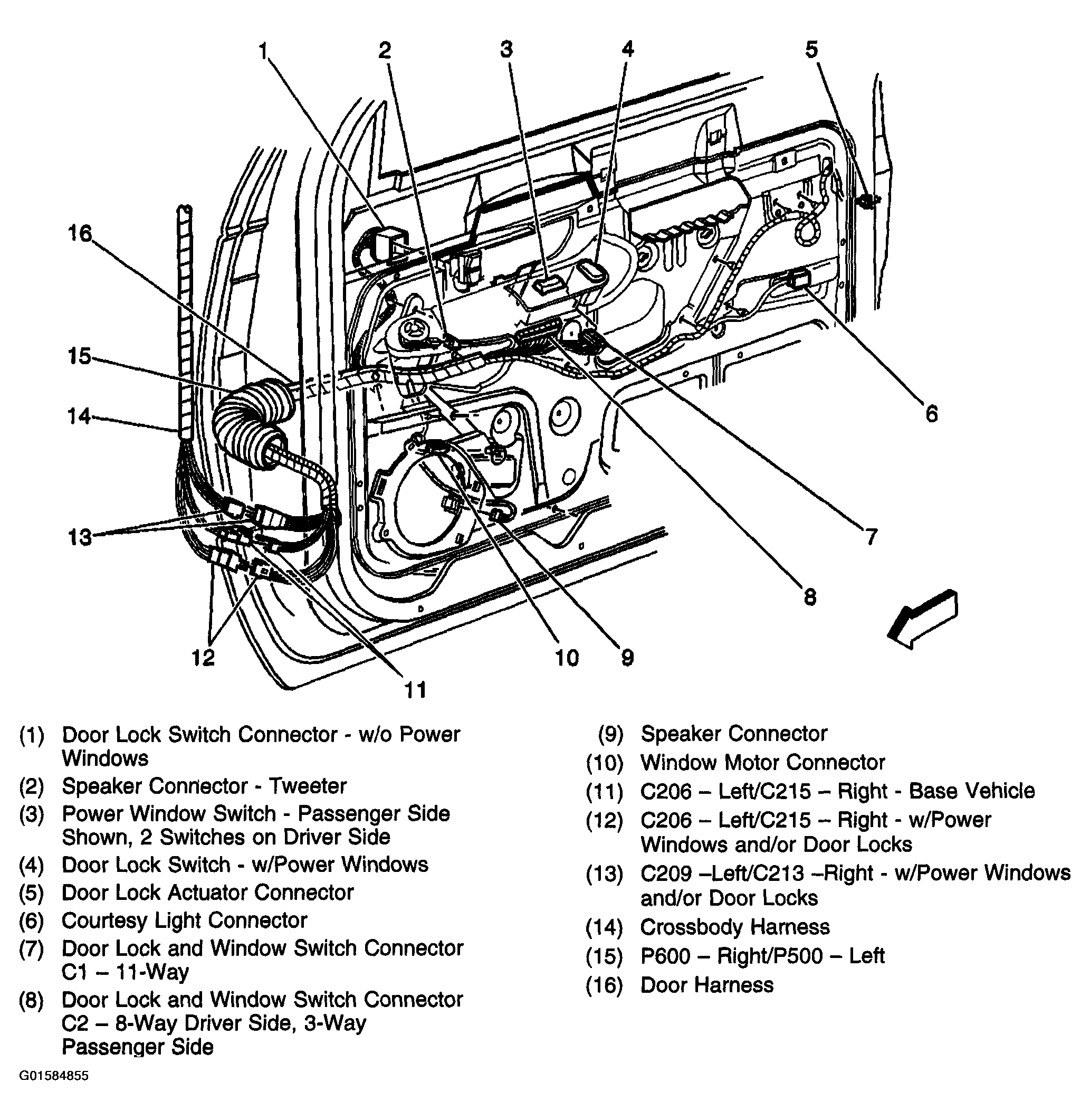

Fig 1: Door Wiring
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
