Removal Procedure

CAUTION: Refer to BATTERY DISCONNECT CAUTION .

Remove negative battery cables.
Remove the electrical connector.
Remove the mounting bolts.

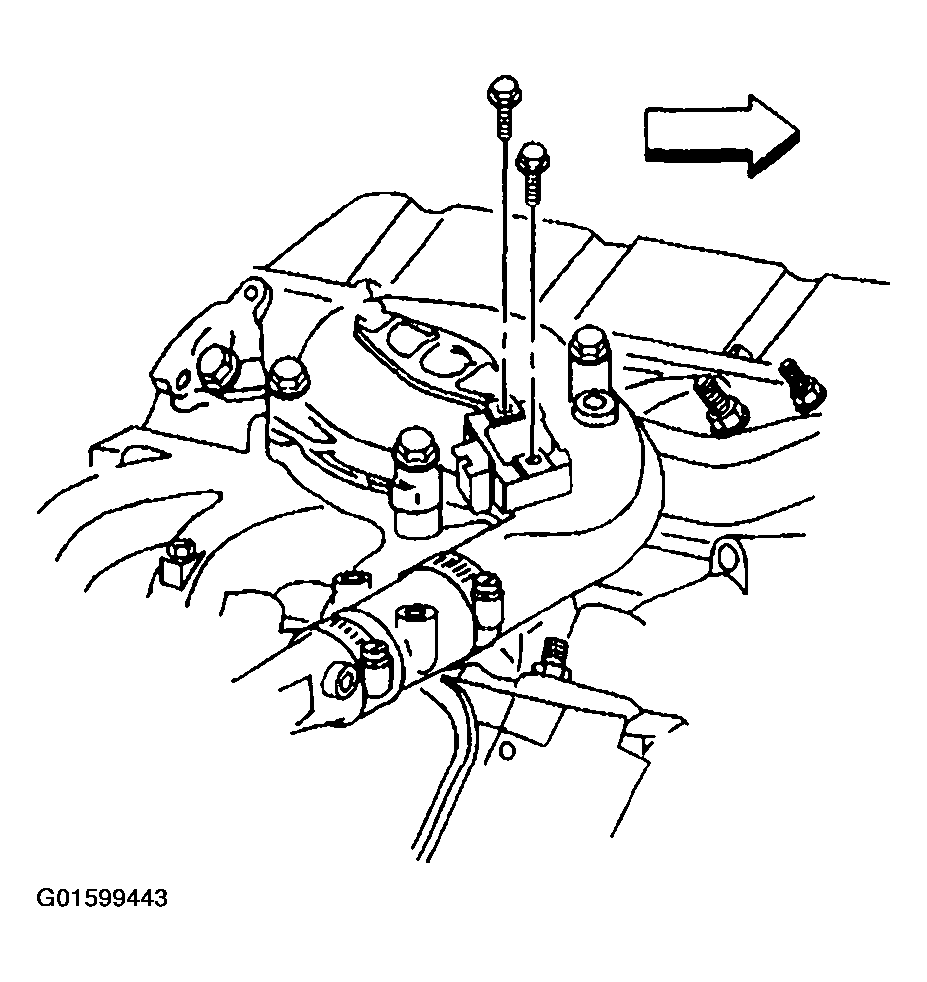

Fig 1: Boost Sensor Mounting Bolts
Courtesy of GENERAL MOTORS CORP.
Remove the sensor.

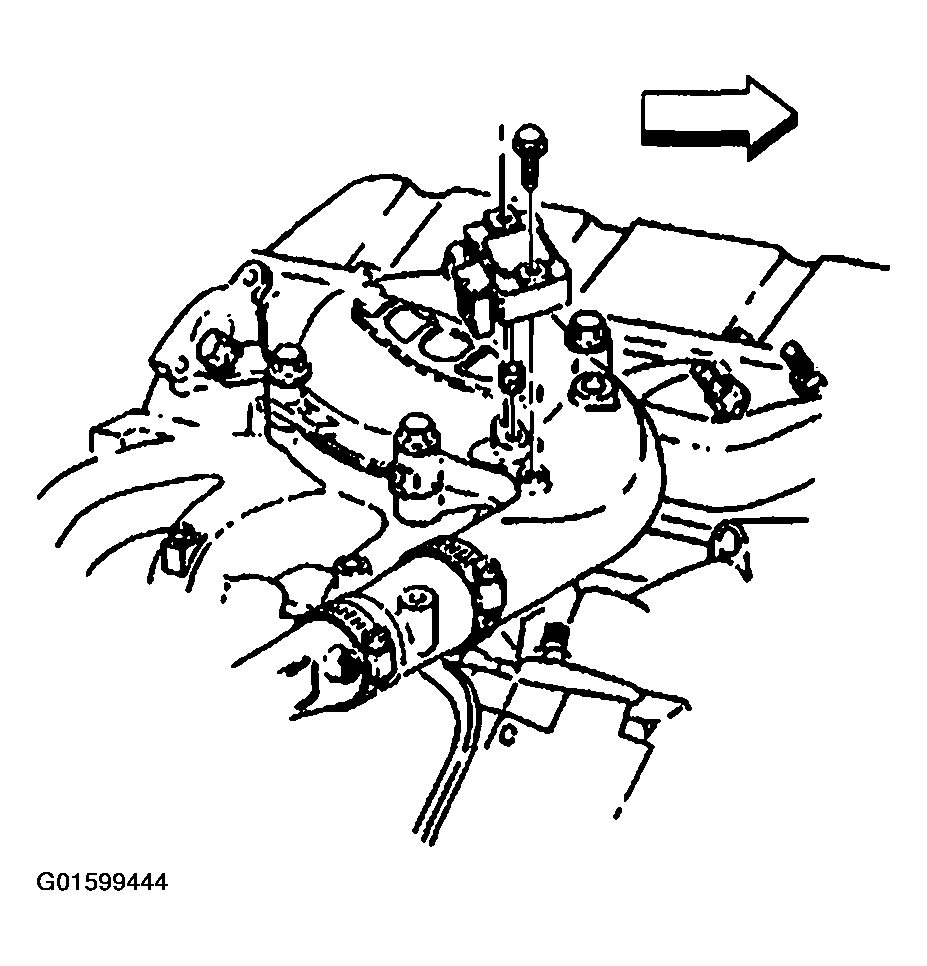

Fig 2: Boost Sensor
Courtesy of GENERAL MOTORS CORP.
