Fuel Injection Line Routing Diagram
Fuel Injection Line Routing Diagram

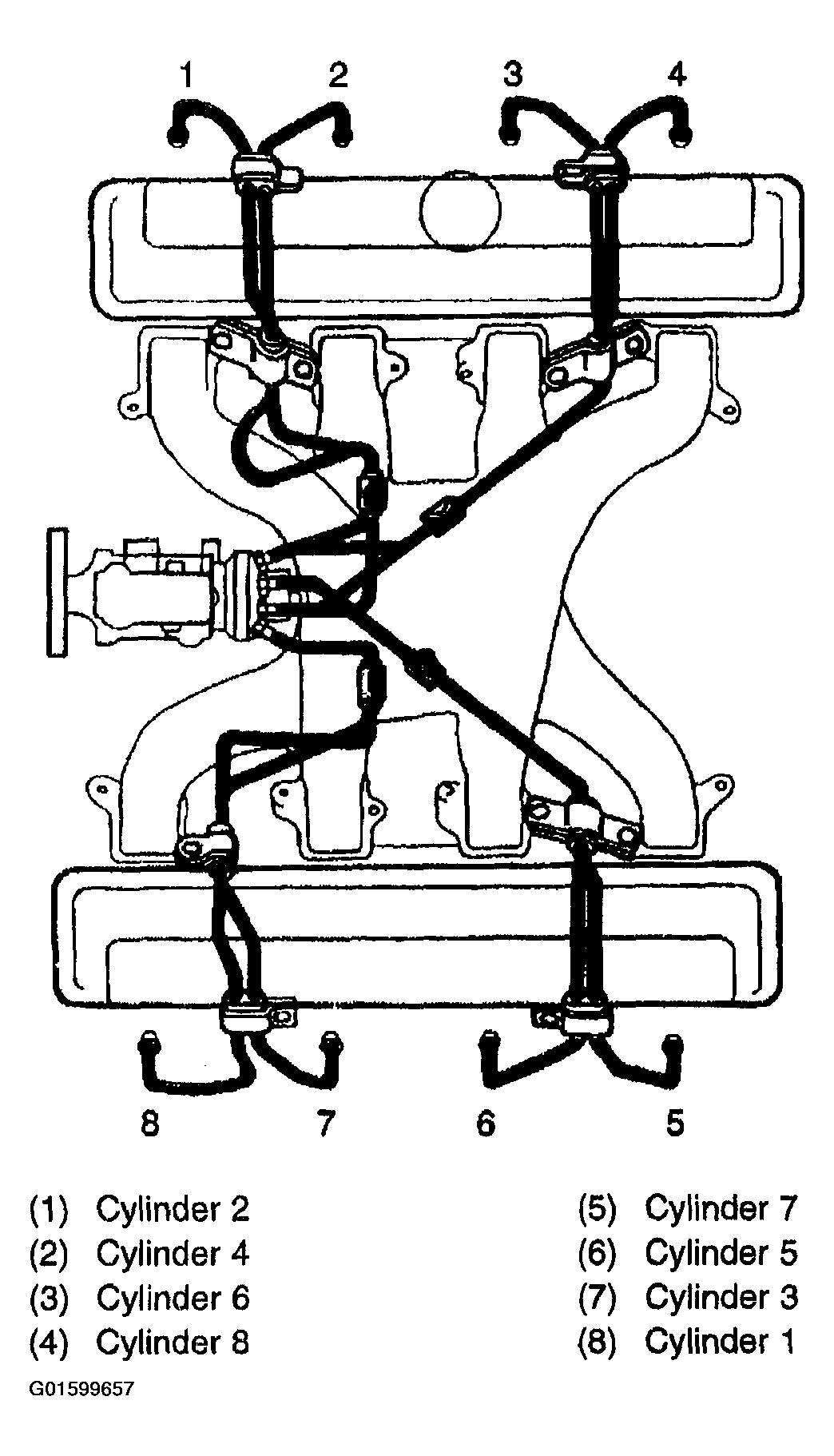

Fig 1: Fuel Injection Line Routing Diagram
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
