Diagnostic Information and Procedures: Surges/Chuggles

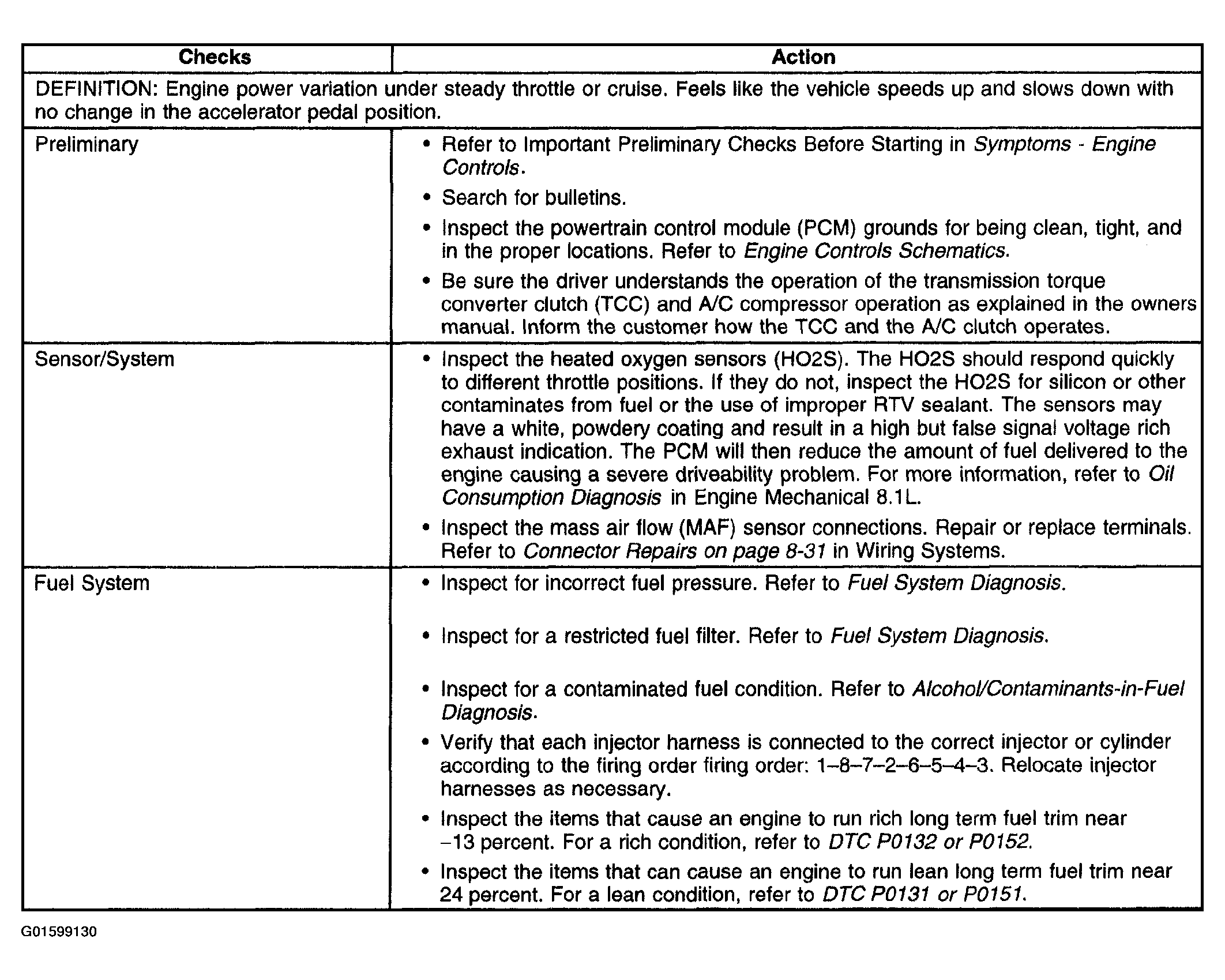

Fig 1: Surges/Chuggles (1 Of 2)
G01599130Courtesy of GENERAL MOTORS CORP.

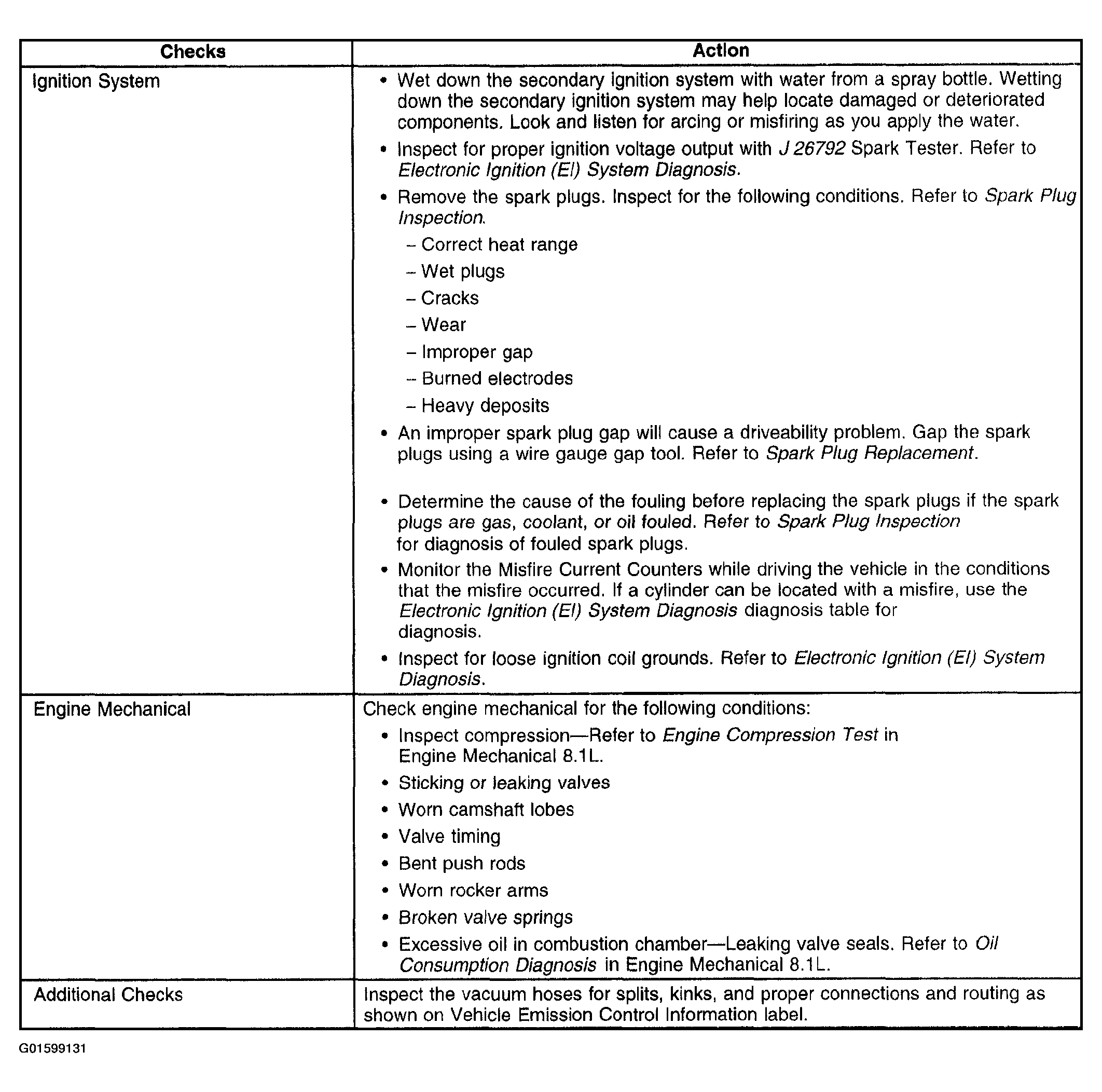

Fig 2: Surges/Chuggles (2 Of 2)
G01599131Courtesy of GENERAL MOTORS CORP.
