Installation Procedure

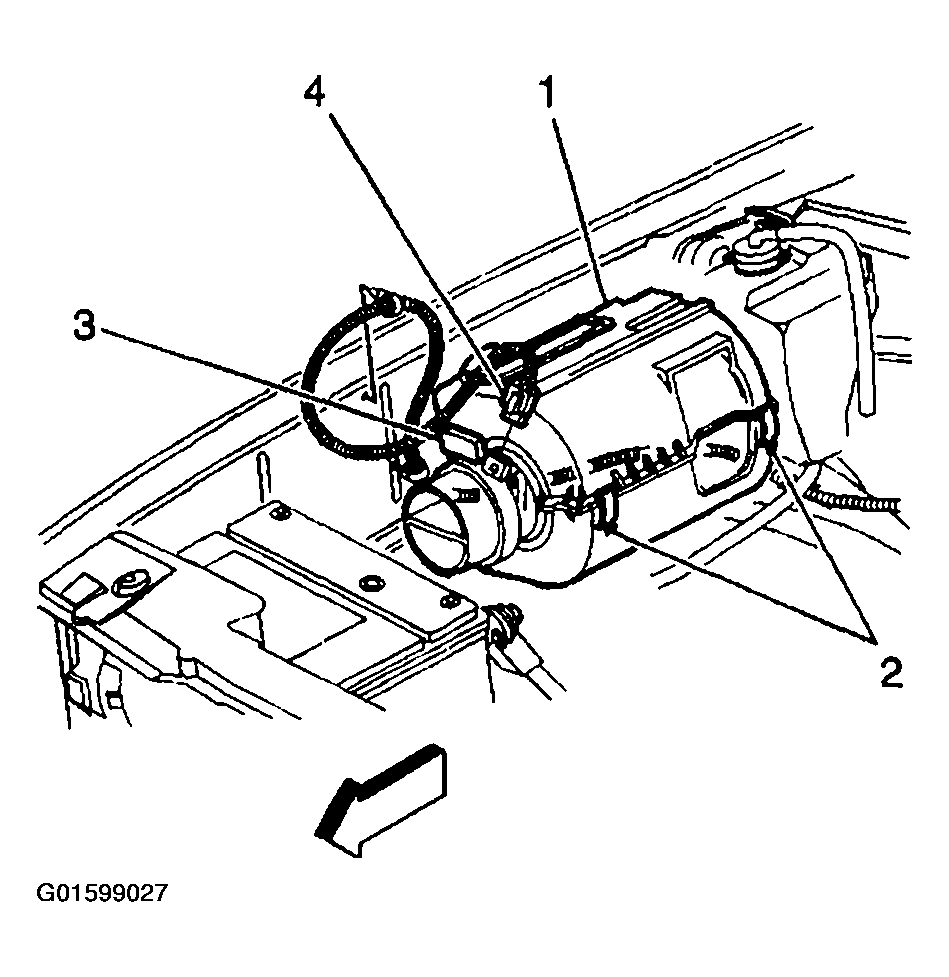

- Install the air filter element into the air cleaner housing.
- Install the housing top cover (1) to the air cleaner housing.
- Latch the retaining clip (2) into place.
- Connect the MAF/IAT electrical connector (4).
- Tighten the clamps on the air intake duct at the MAF/IAT sensor (3).
