Installation Procedure

  1. Install a new gasket (3) on the EGR adapter bracket.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the EGR (2) valve and two nuts (1).

    Tighten

    Tighten the nuts to 22 N.m (16 lb ft).

  3. Connect the EGR valve electrical connector.

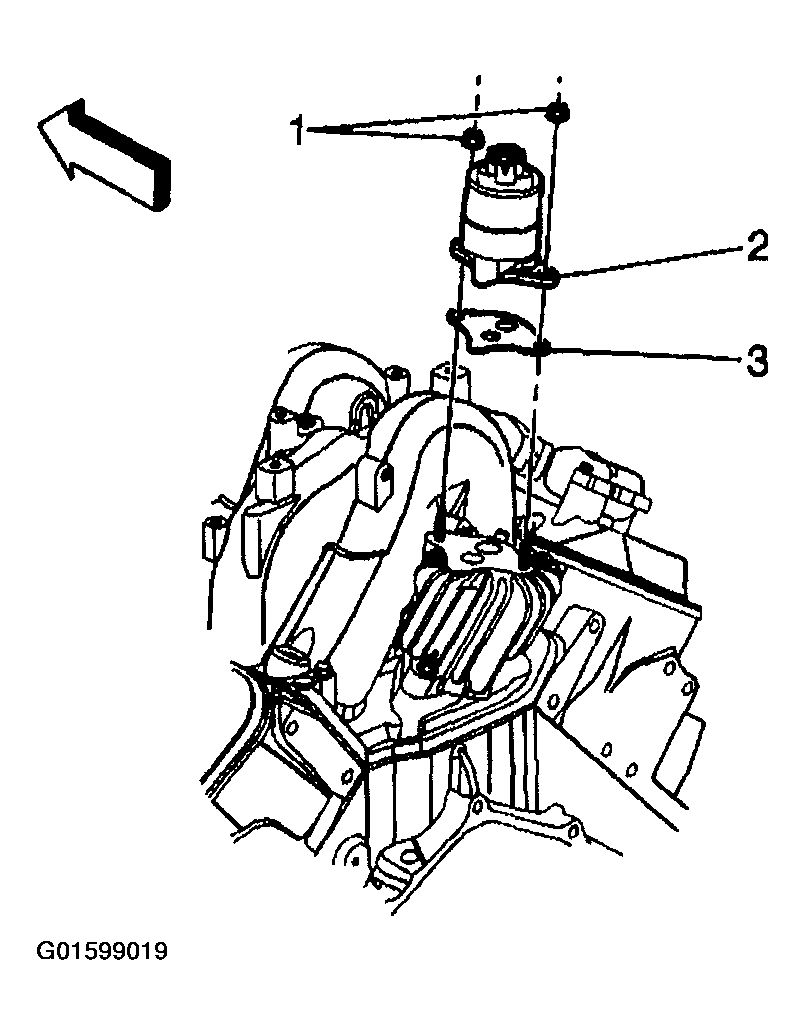

    Fig 1: EGR Valve Retaining Nuts, Valve & Gasket
    G01599019Courtesy of GENERAL MOTORS CORP.
