Removal Procedure

Raise the vehicle.
Remove the wiring harness connector (1) from the knock sensor (KS) (2).
Remove the KS (2) from the engine block.

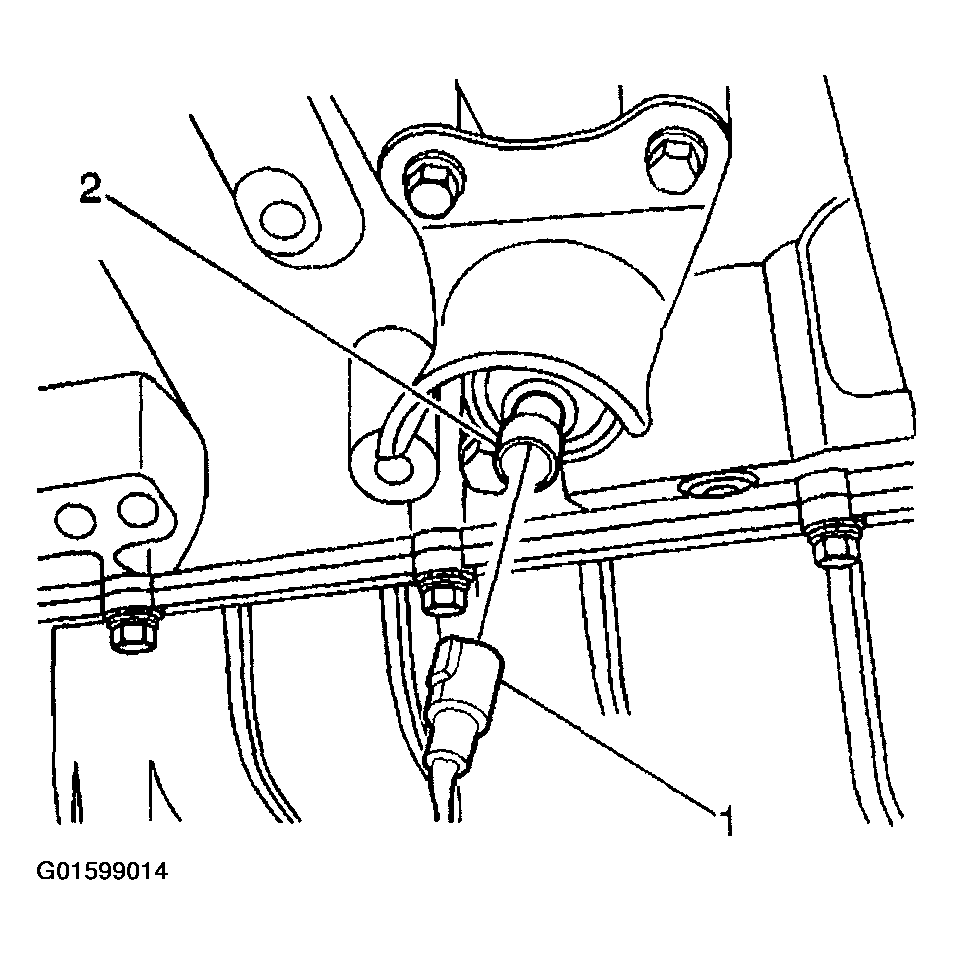

Fig 1: Knock Sensor & Harness Connector
Courtesy of GENERAL MOTORS CORP.
