Removal Procedure

  1. Remove the spark plug wires. Refer to Spark Plug Wire Replacement .
  2. Loosen each spark plug one or two turns.
  3. Brush or air blast away any dirt from around the spark plugs.
  4. Remove the spark plugs one at a time and place each plug in a tray marked with the corresponding cylinder numbers.

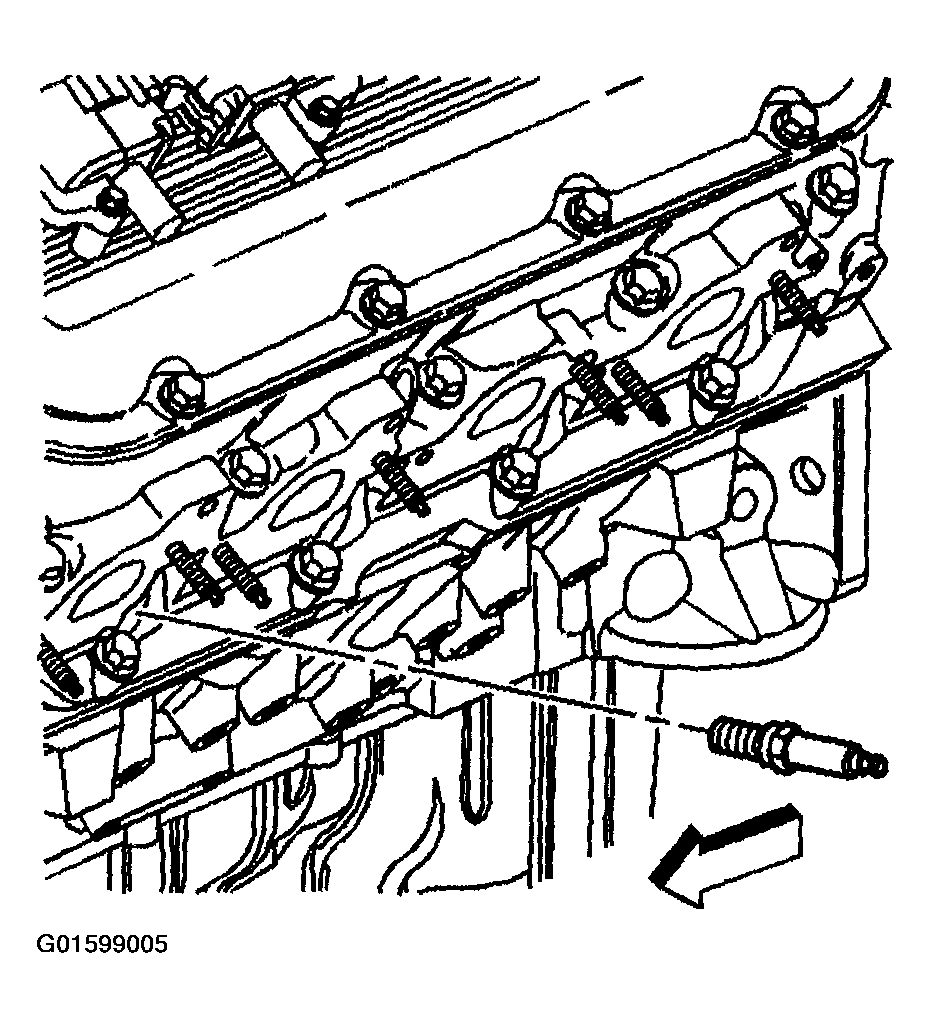

    Fig 1: Spark Plug
    G01599005Courtesy of GENERAL MOTORS CORP.
