Removal Procedure

  1. Disconnect the spark plug wire at each spark plug.
    • Twist each spark plug wire 1/2 turn.
    • Pull only on the boot in order to remove the wire from each spark plug.
  2. Disconnect the spark plug wire from the ignition coil.
    • Twist each spark plug boot 1/2 turn.
    • Pull only on the boot in order to remove the wires from the ignition coil.

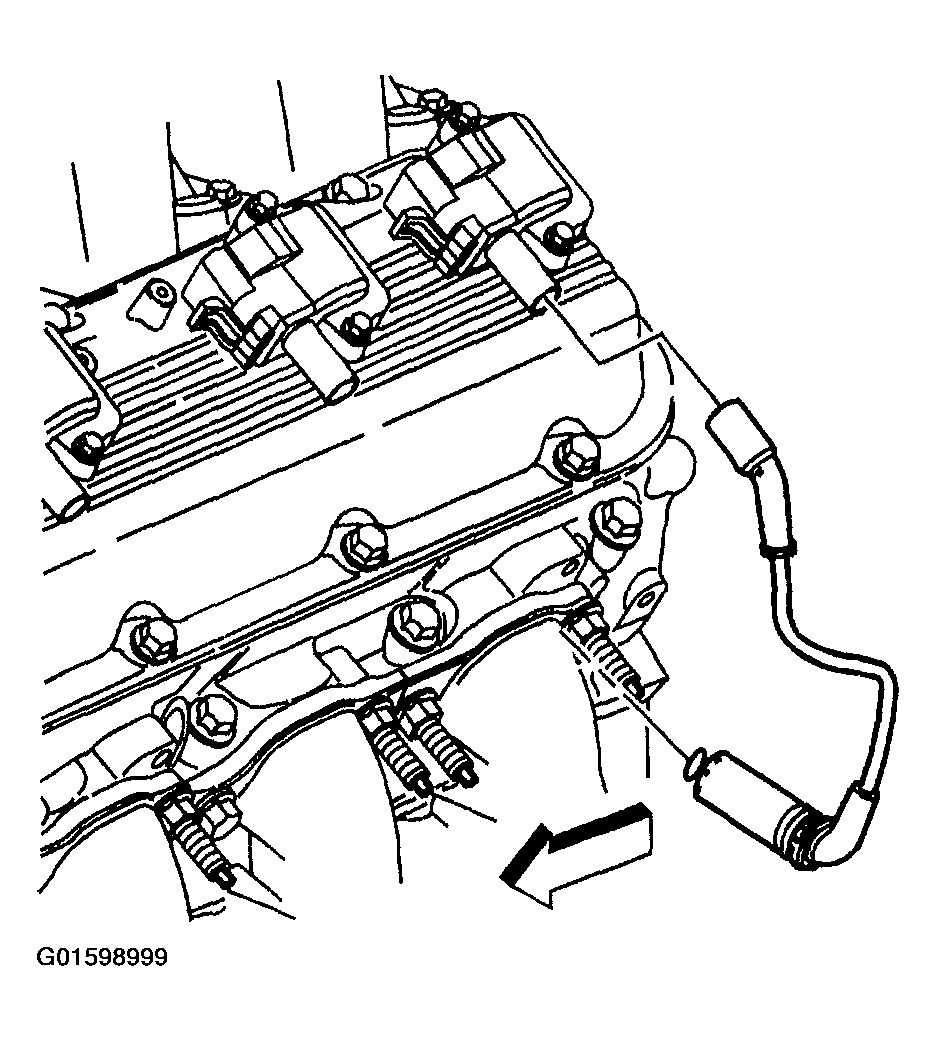

    Fig 1: Spark Plug Wire & Boot
    G01598999Courtesy of GENERAL MOTORS CORP.
