Removal Procedure

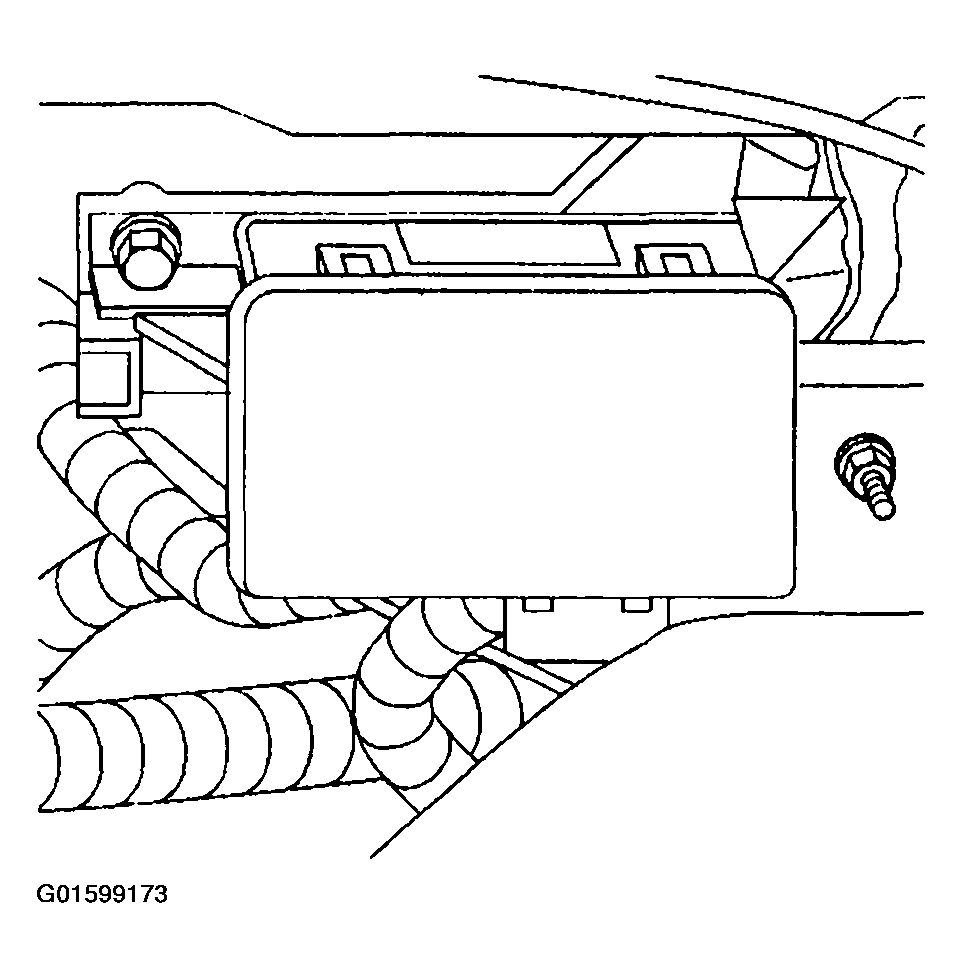

- Release the retainer tab from the left side of the throttle actuator control (TAC) module.
- Slowly slide the TAC module out of the retaining bracket.
- Disconnect the TAC module harness connectors from the TAC module.
Courtesy of GENERAL MOTORS CORP.
