Removal Procedure
- Raise the vehicle.
- If the vehicle is equipped with the underbody shield package, remove the steering linkage shield.

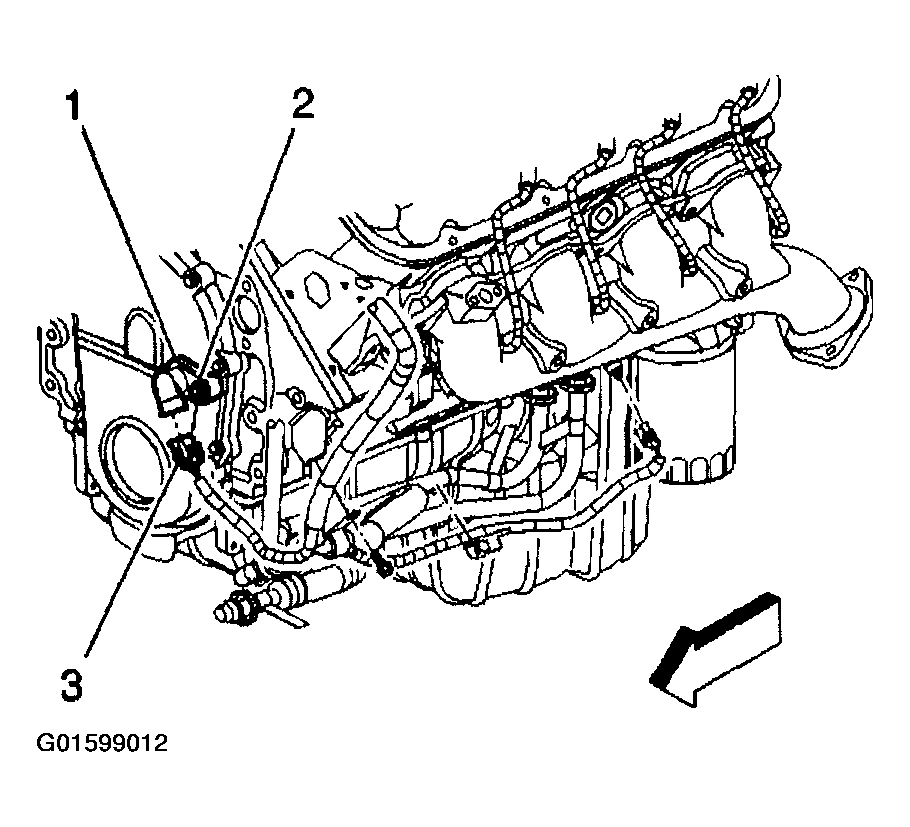

- Disconnect the camshaft position (CMP) sensor harness connector (3) at the CMP sensor (1).
- Remove the CMP sensor retaining bolt (2).
- Remove the CMP sensor (1).
- Inspect the CMP sensor for wear, cracks, or leakage if the sensor is not being replaced.
