Installation Procedure

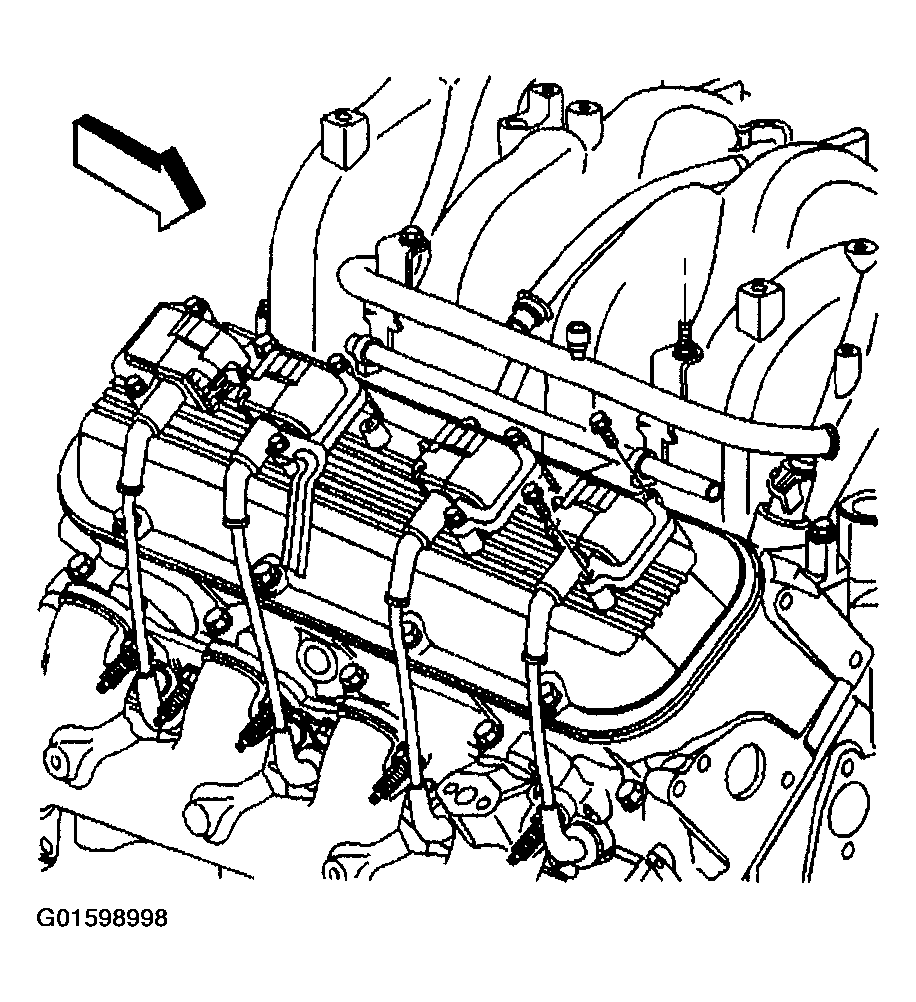

- Install ignition coil.NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
- Install the ignition coil mounting bolts.
Tighten
Tighten the ignition coil mounting bolts to 12 N.m (106 lb in).
- Connect the ignition coil harness connector.
- Connect the spark plug wires at the ignition coils. Refer to Spark Plug Wire Replacement .
