Shift Lock Control
Shift Lock Control

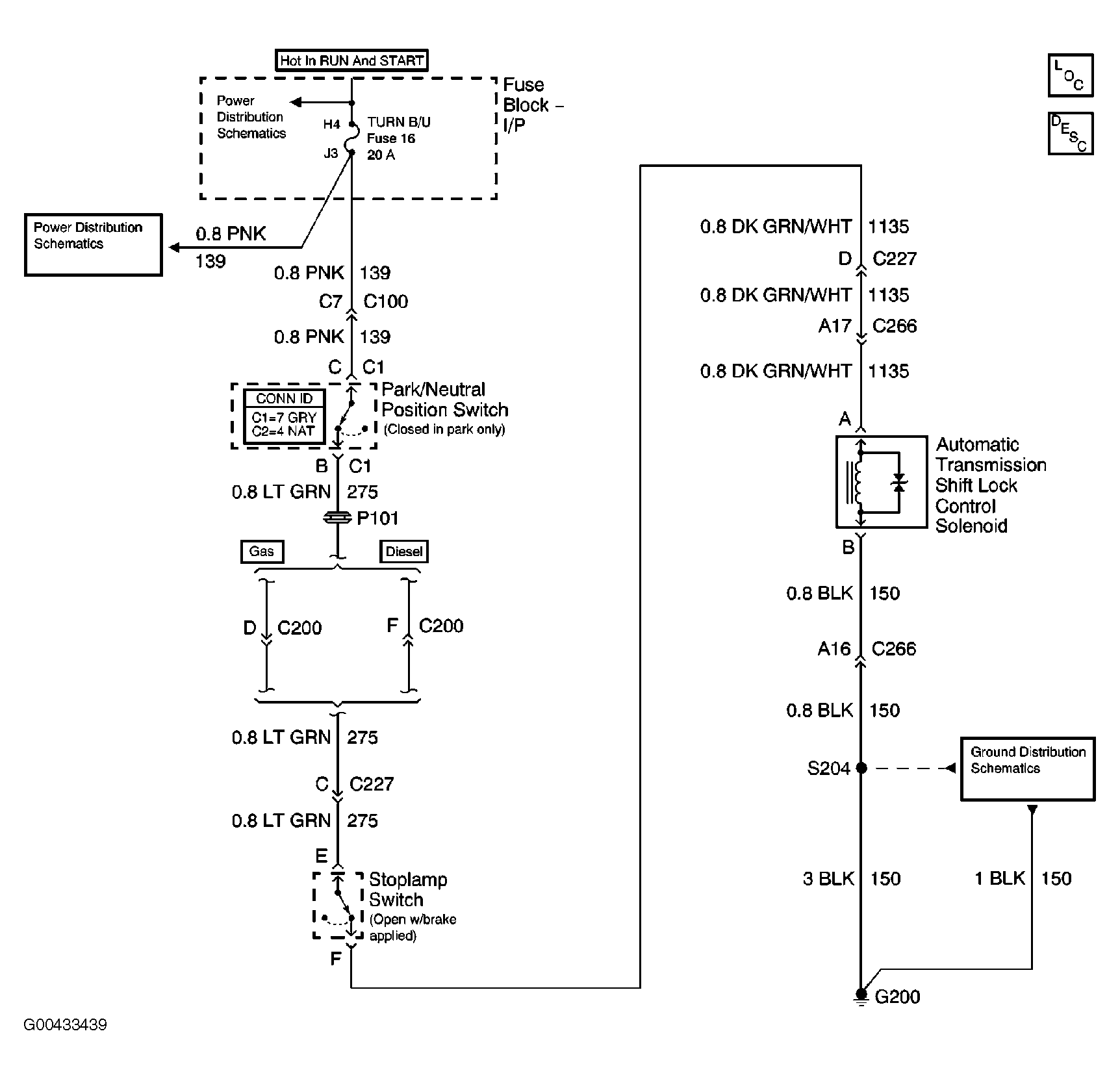

Fig 1: Shift Lock Control Schematics
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
