System Wiring Diagrams: Starting/Charging: Charging

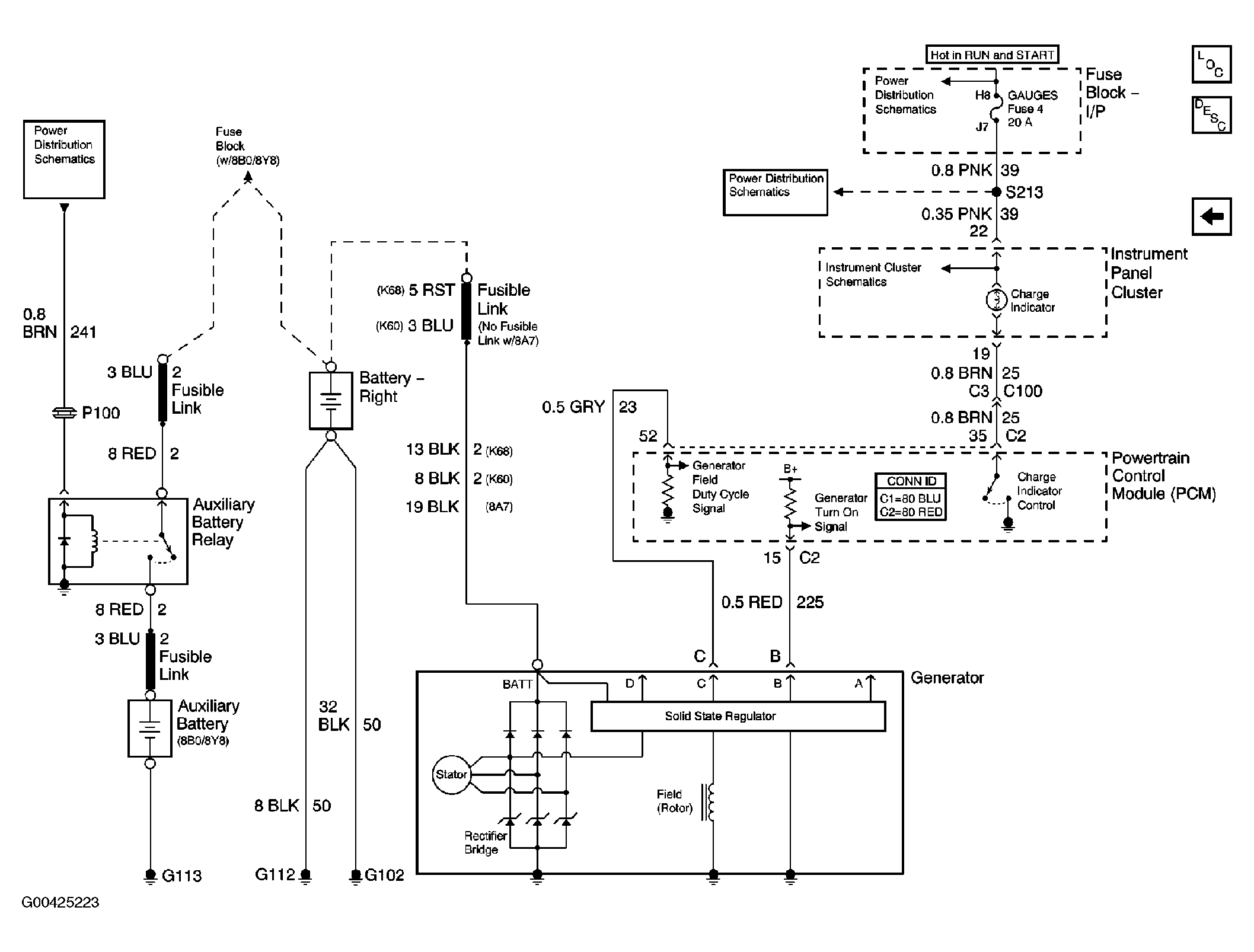

Fig 1: Charging Wiring Diagram (Gasoline)

Courtesy of GENERAL MOTORS CORP.

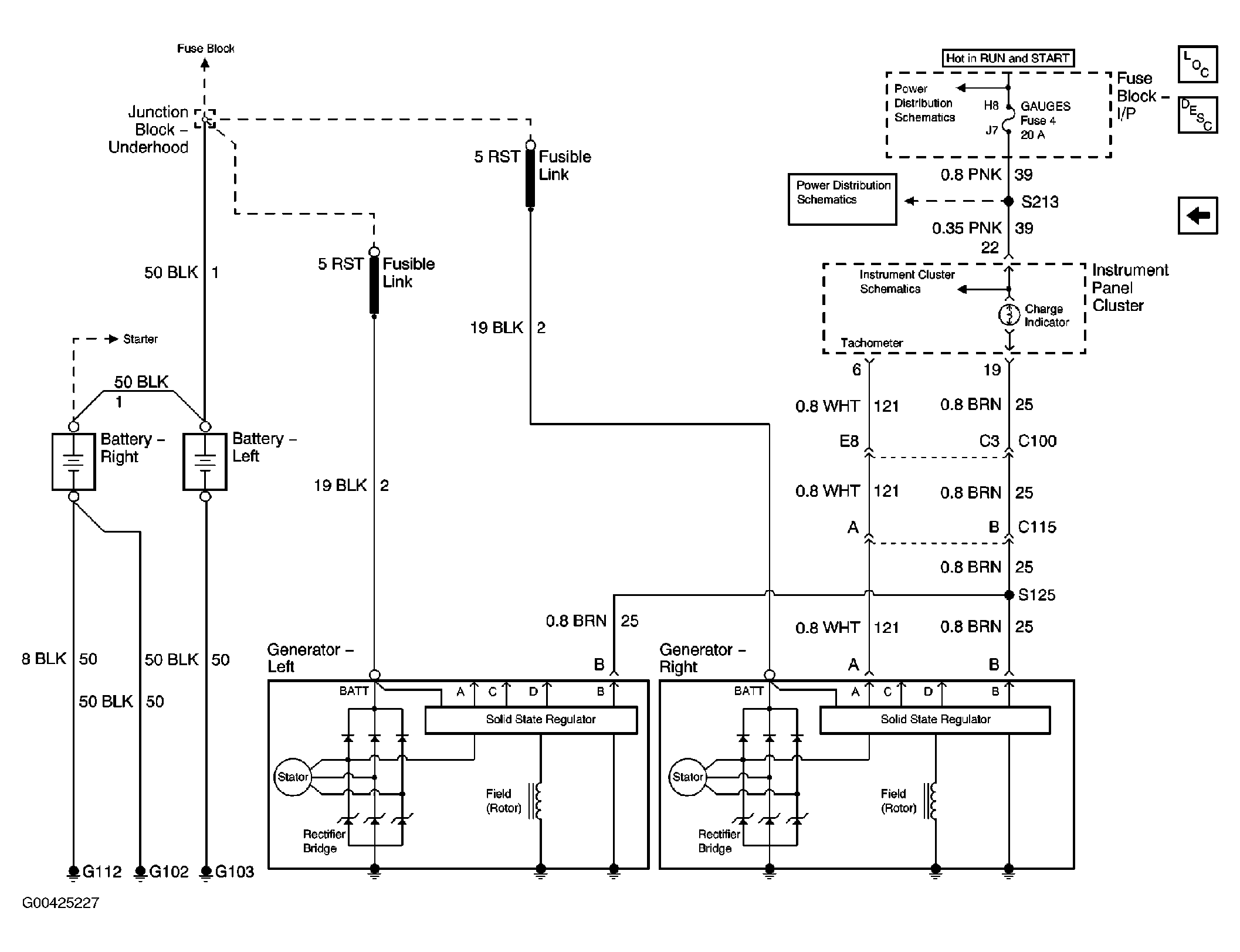

Fig 2: Charging Wiring Diagram (Diesel) (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

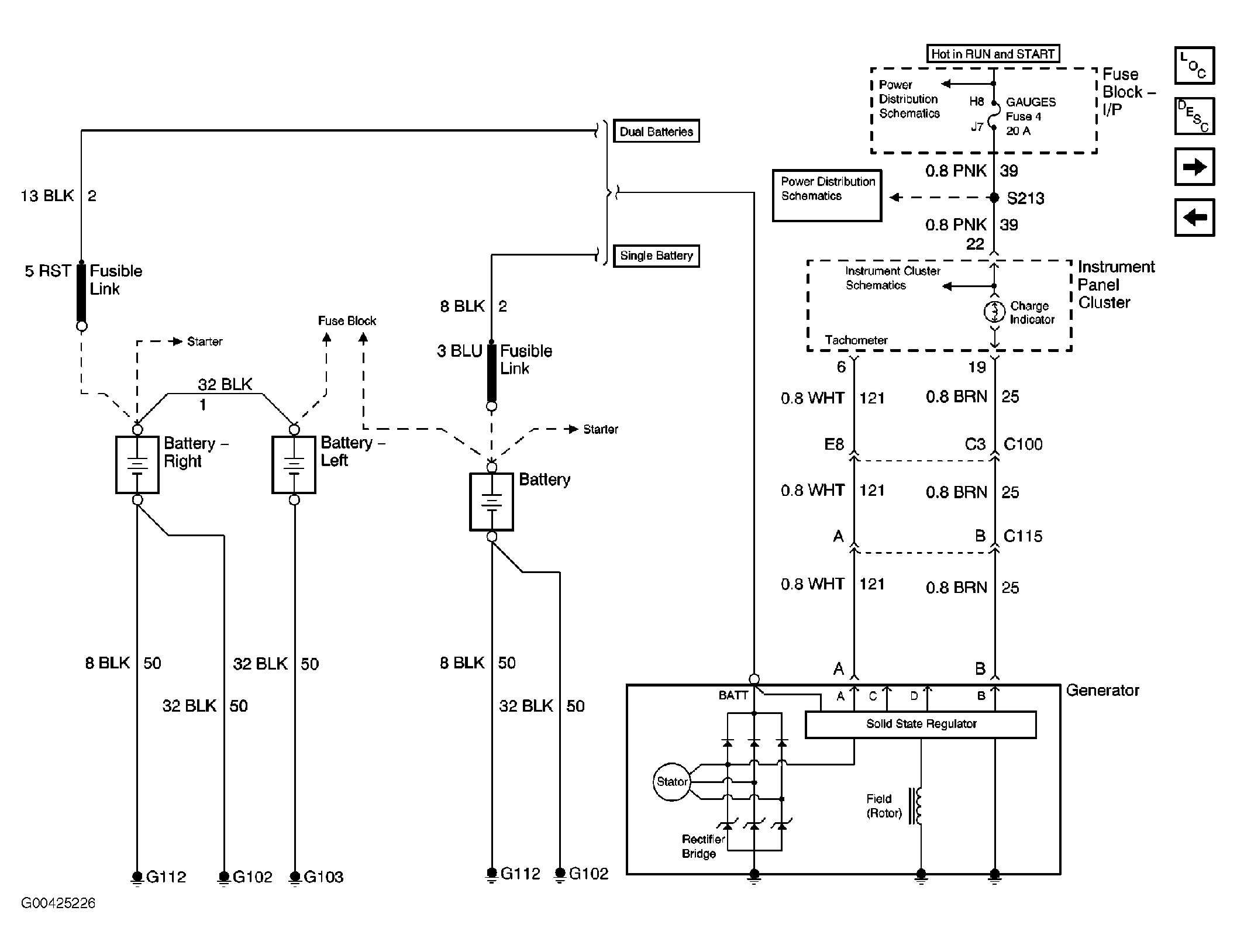

Fig 3: Charging Wiring Diagram (Diesel) (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
