FixVault
Home
›
GMC
›
2002
›
Envoy RWD
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM Connector End Views
›
Connector End Views
›
Liftgate Ajar Switch Connector End View
Liftgate Ajar Switch Connector End View

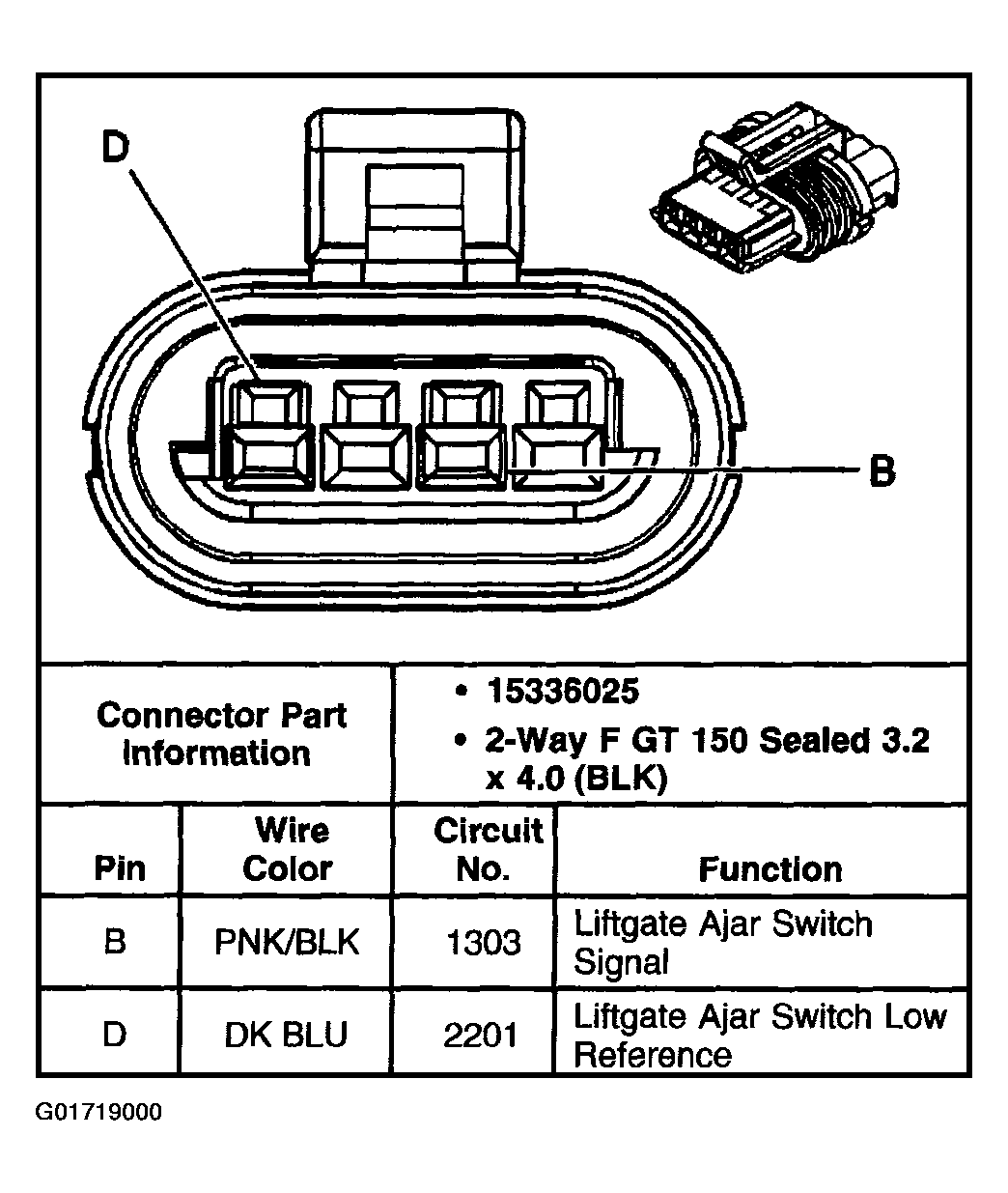

Fig 1: Liftgate Ajar Switch
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
