FixVault
Home
›
GMC
›
2002
›
Jimmy 2D Utility, Automatic, Automatic
›
Repair and Diagnosis
›
Body & Frame
›
Door Locks
›
Keyless Entry System
›
Diagnostic Information and Procedures
›
Door Lock Function Inoperative with Transmitter
Door Lock Function Inoperative with Transmitter

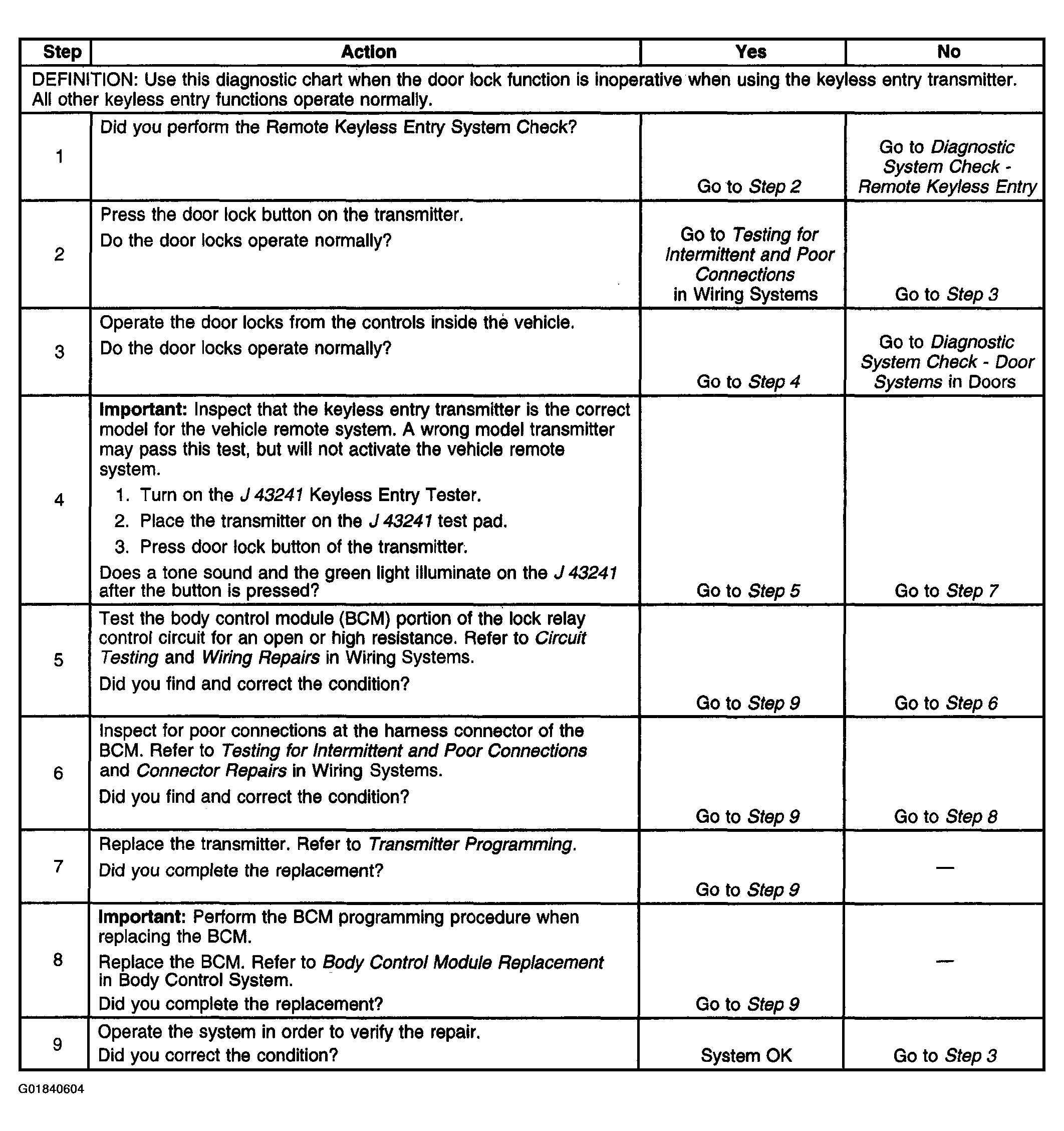

Fig 1: Door Lock Function Inoperative With Transmitter
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
