Sunroof Module Connector End View C1

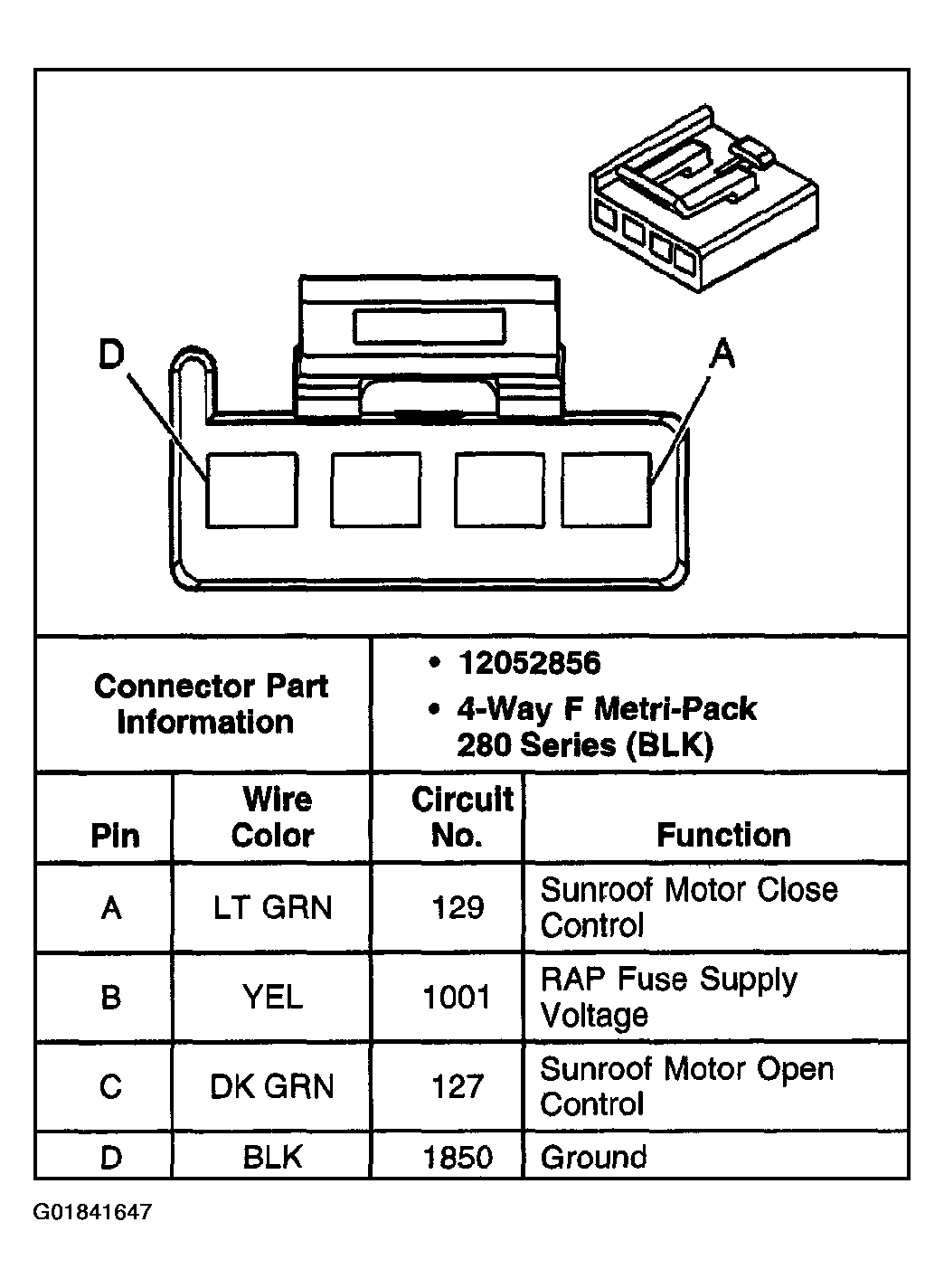

Fig 1: Sunroof Module Connector End View C1
G01841647Courtesy of GENERAL MOTORS CORP.
