Transfer Case Encoder Motor Connector End View C1

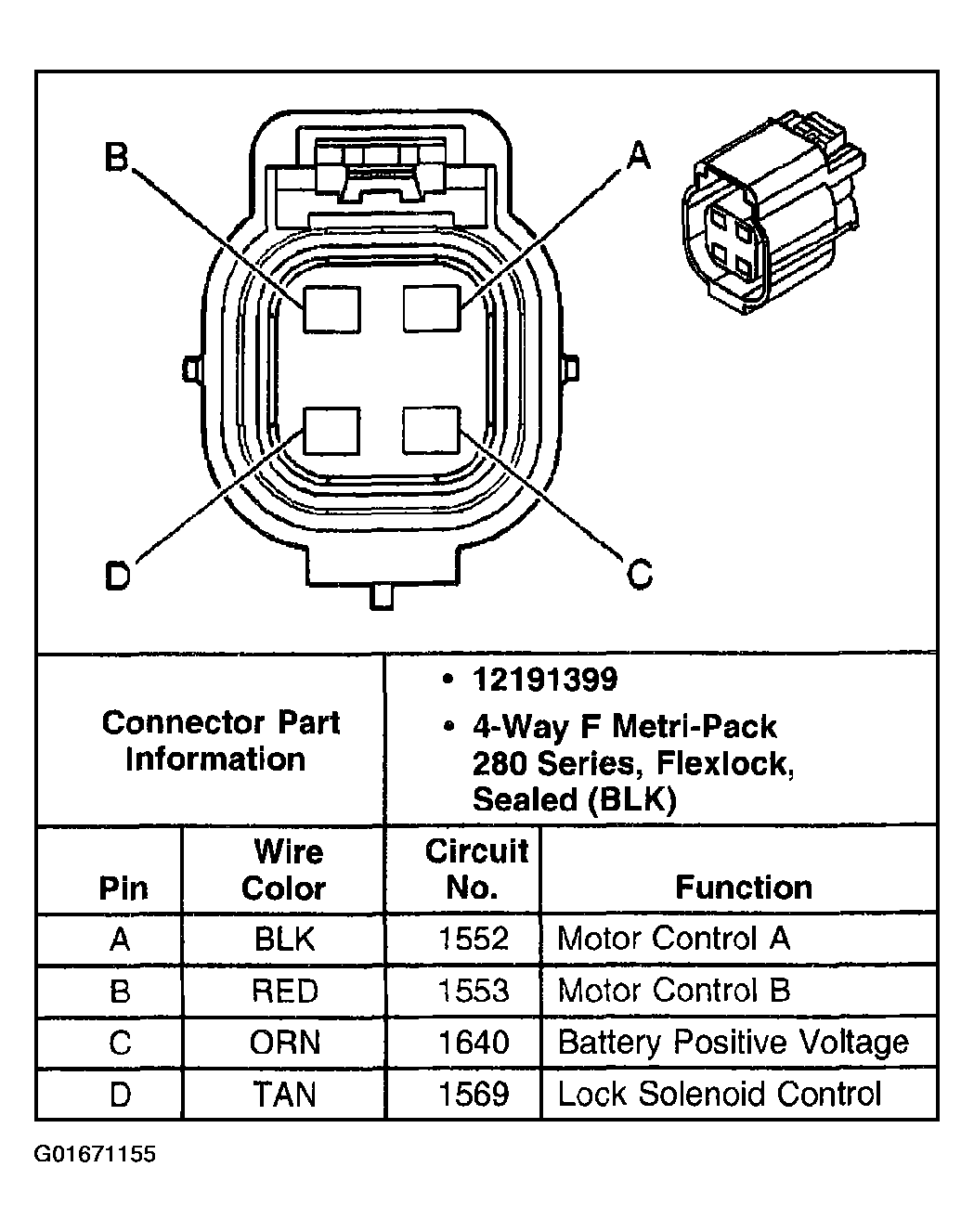

Fig 1: Transfer Case Encoder Motor Connector End View C1
G01671155Courtesy of GENERAL MOTORS CORP.
