Transfer Case Encoder Motor Connector End View C2

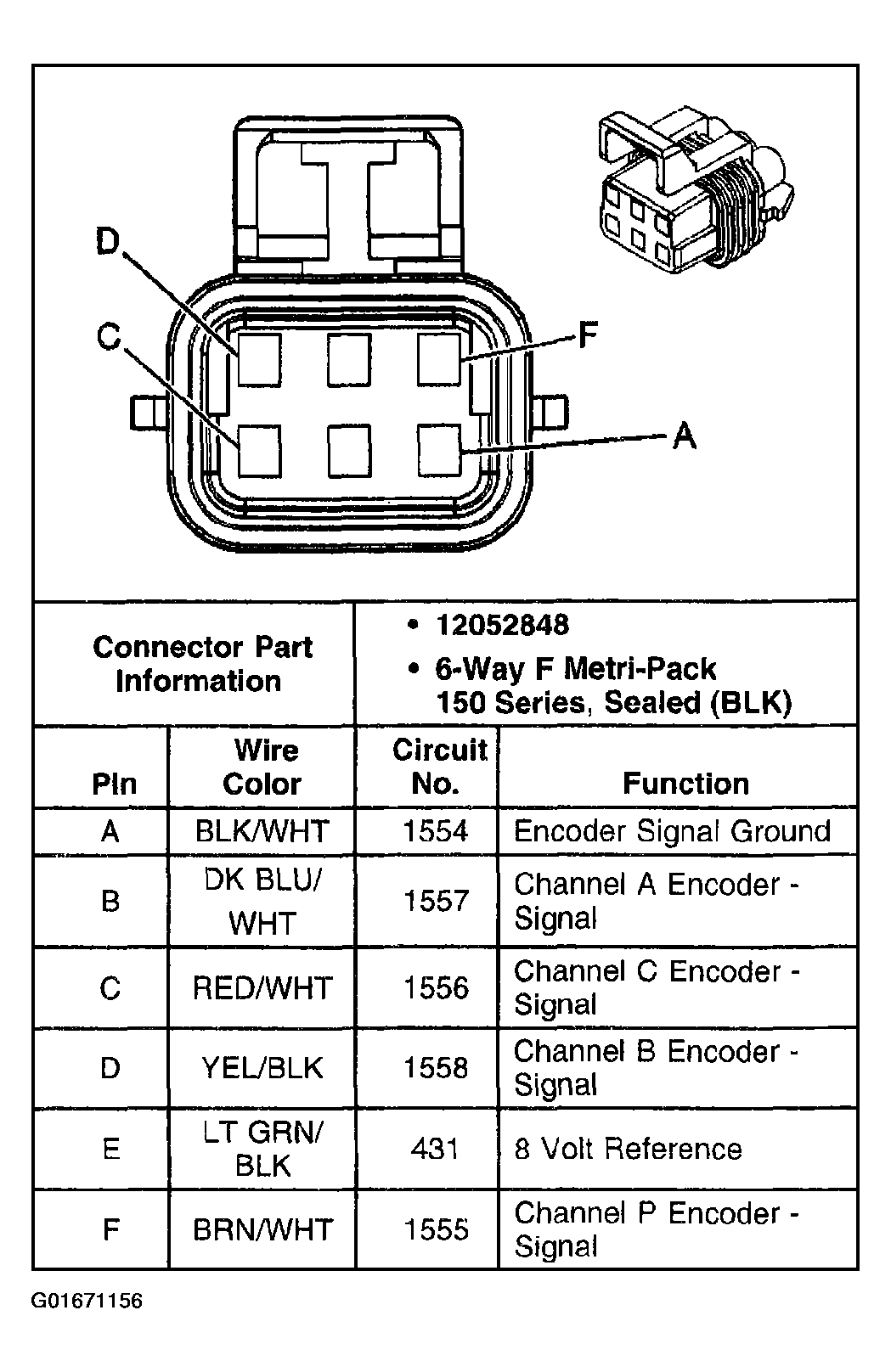

Fig 1: Transfer Case Encoder Motor Connector End View C2
G01671156Courtesy of GENERAL MOTORS CORP.
