Transfer Case Shift Control Module Connector End View (1 Of 2)

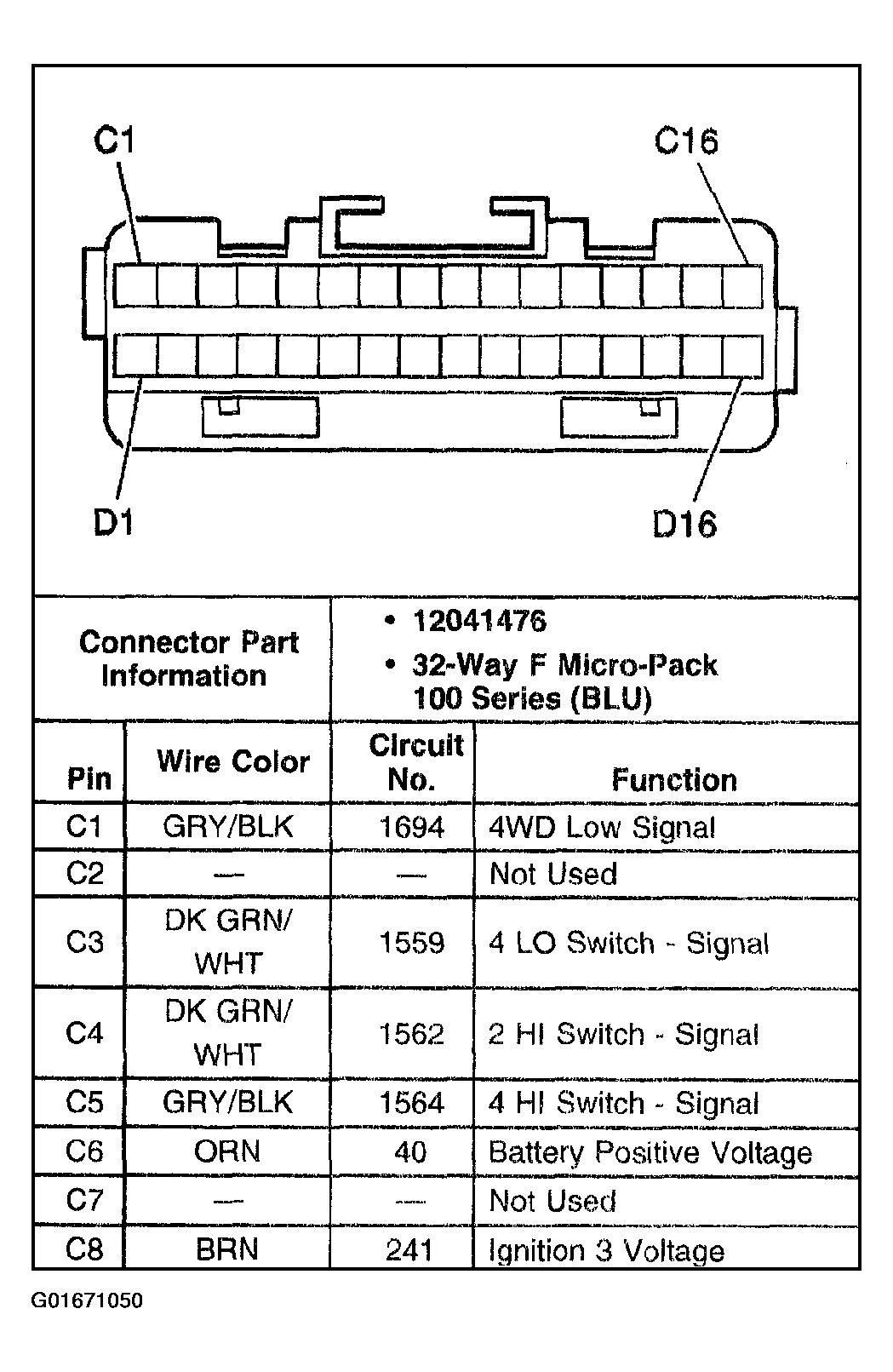

Fig 1: Transfer Case Shift Control Module Connector End View (1 Of 2)
G01671050Courtesy of GENERAL MOTORS CORP.
