Transfer Case Shift Control Switch Connector End View C2

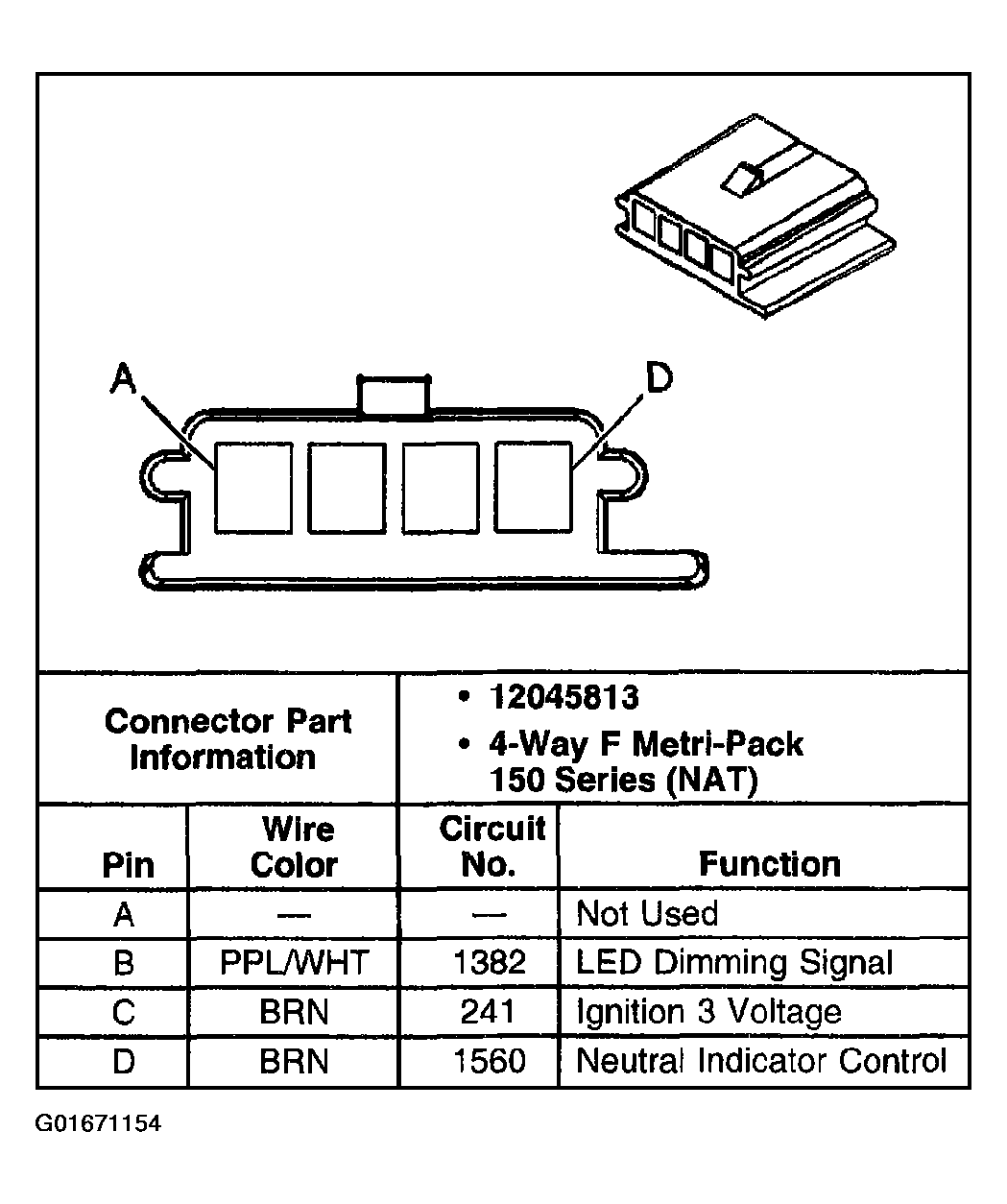

Fig 1: Transfer Case Shift Control Switch Connector End View C2
G01671154Courtesy of GENERAL MOTORS CORP.

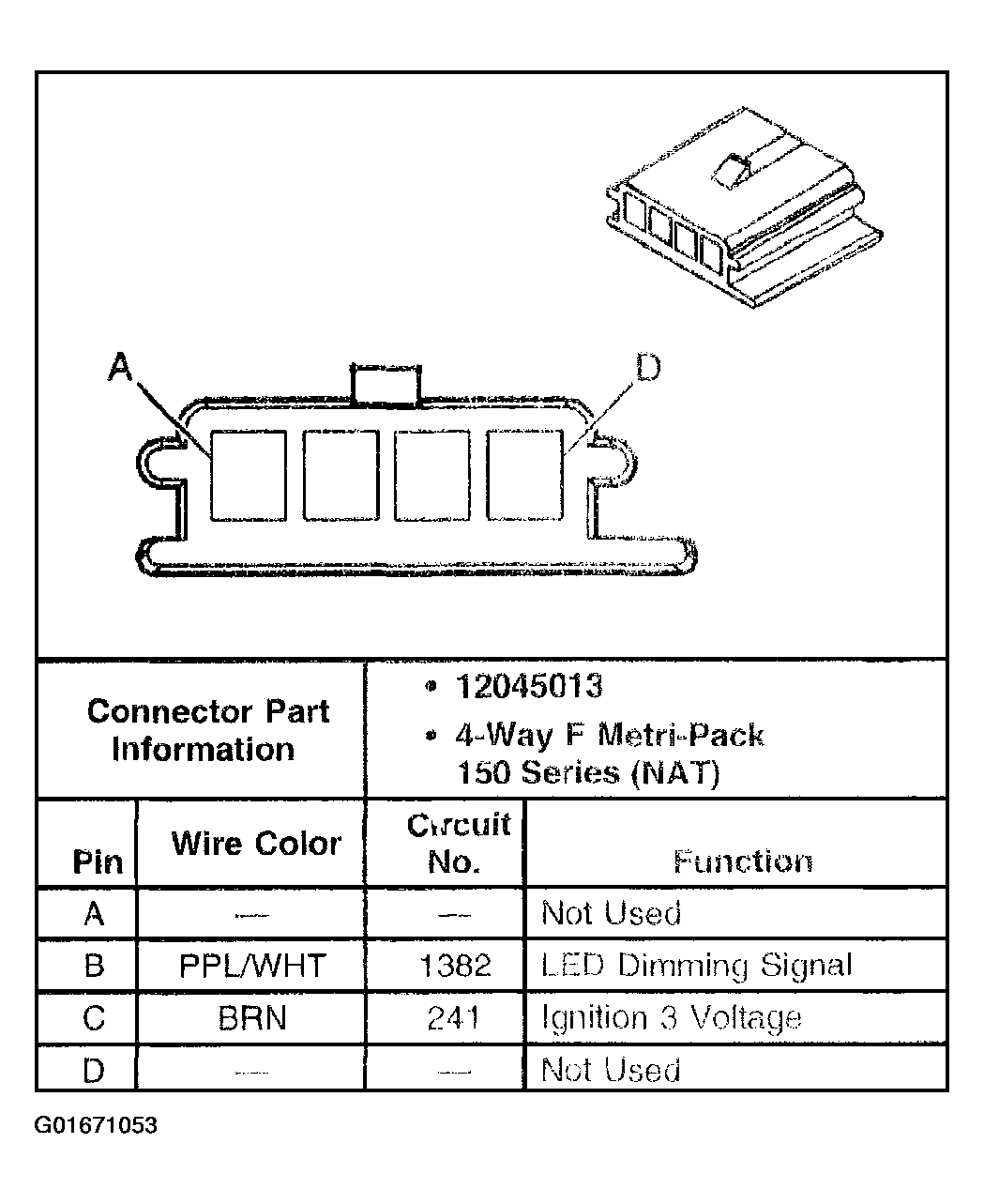

Fig 1: Transfer Case Shift Control Switch Connector End View C2
G01671053Courtesy of GENERAL MOTORS CORP.
