GMC
›
2002
›
Jimmy 2D Utility, Automatic, Automatic
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM Connector End Views
›
Connector End Views
›
Window Lockout Switch
Window Lockout Switch

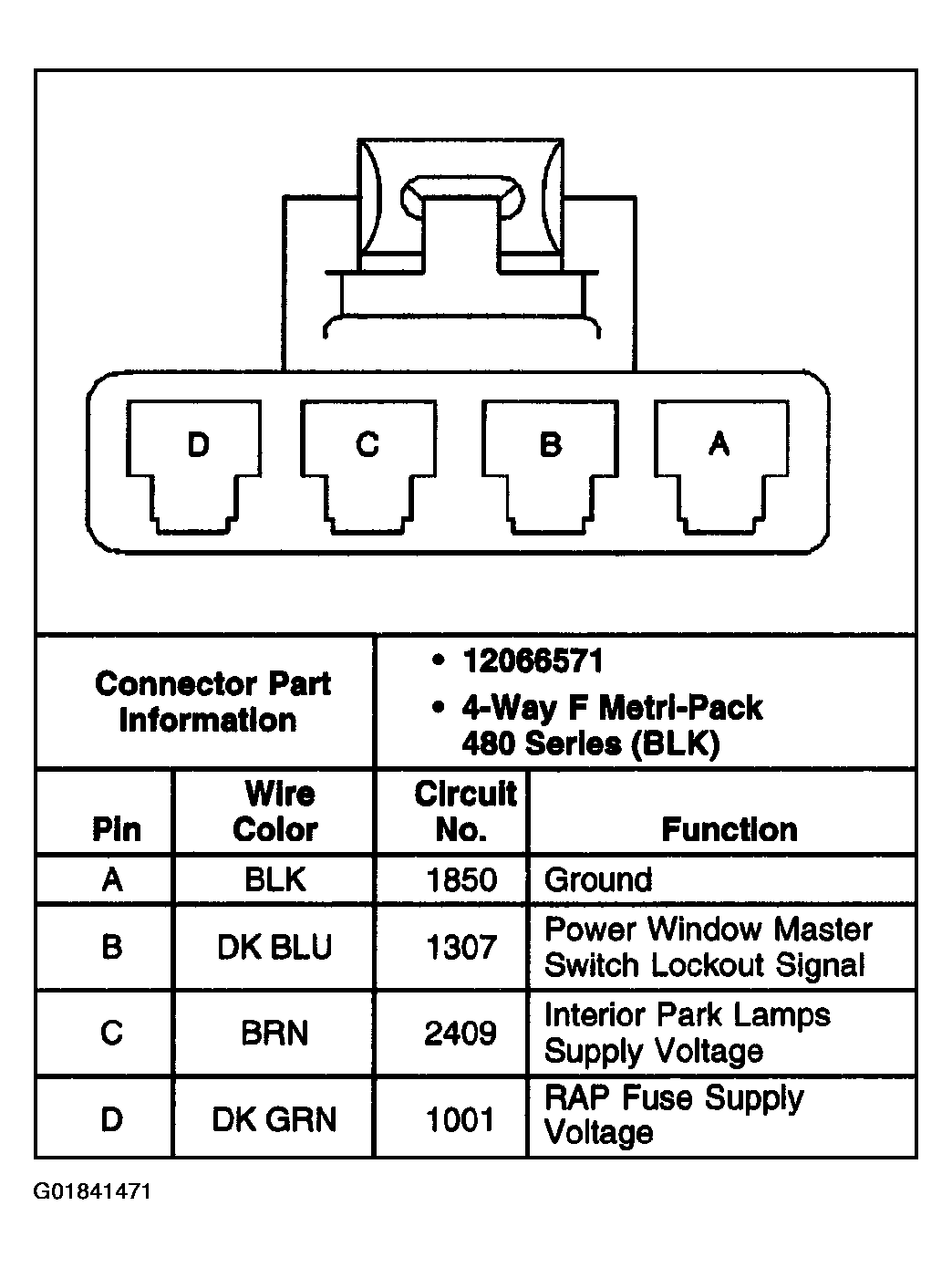

Fig 1: Window Lockout Switch
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
