Installation Procedure

  1. Install the battery tray.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the battery tray retaining bolts.

    Tighten

    Tighten the battery tray retaining bolts to 25 N.m (18 lb ft).

  3. Install the battery. Refer to Battery Replacement .

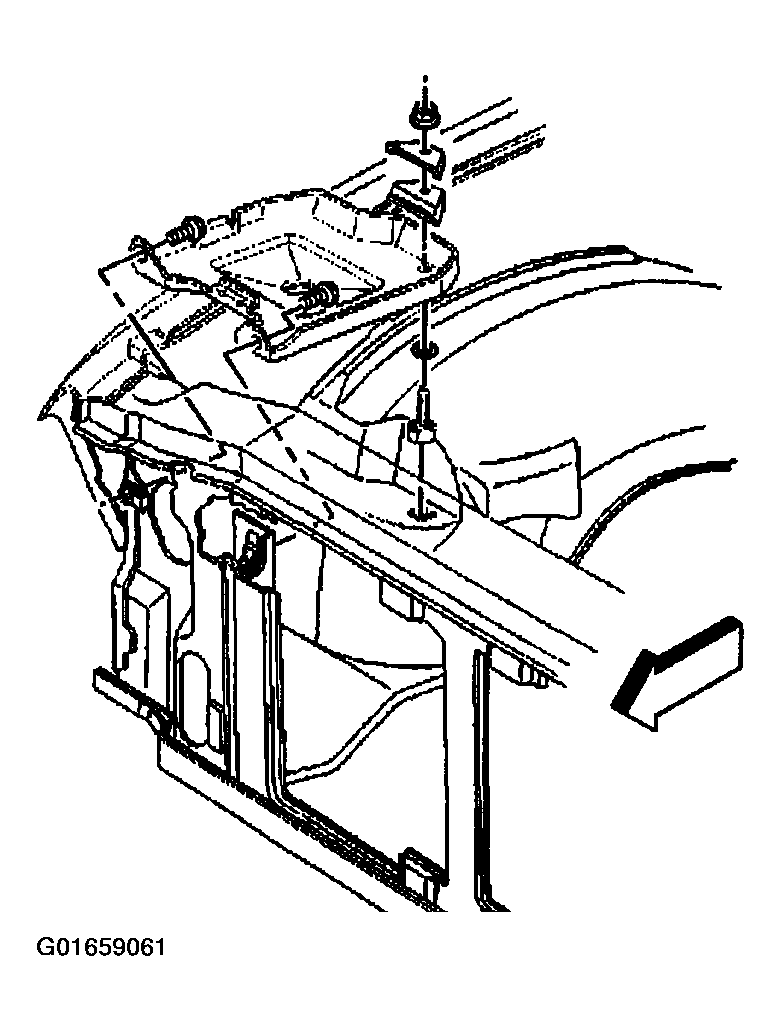

    Fig 1: Battery Tray & Retaining Bolts
    G01659061Courtesy of GENERAL MOTORS CORP.
