Identifying A/C Control Harness Connector End View (C2) Terminals
Identifying A/C Control Harness Connector End View (C2) Terminals

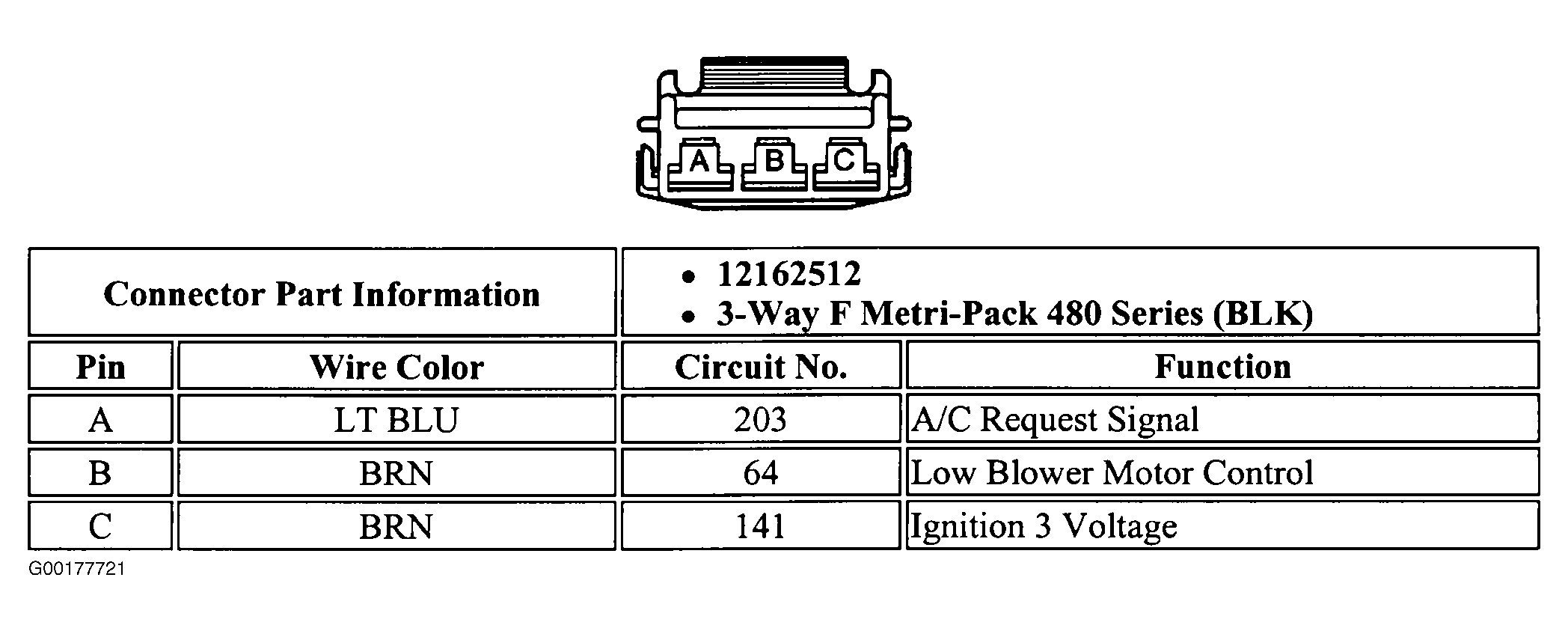

Fig 1: Identifying A/C Control Harness Connector End View (C2) Terminals
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
